PTAC-SVX002A-EN
13
Installation
Trane Wall Sleeve and Grille

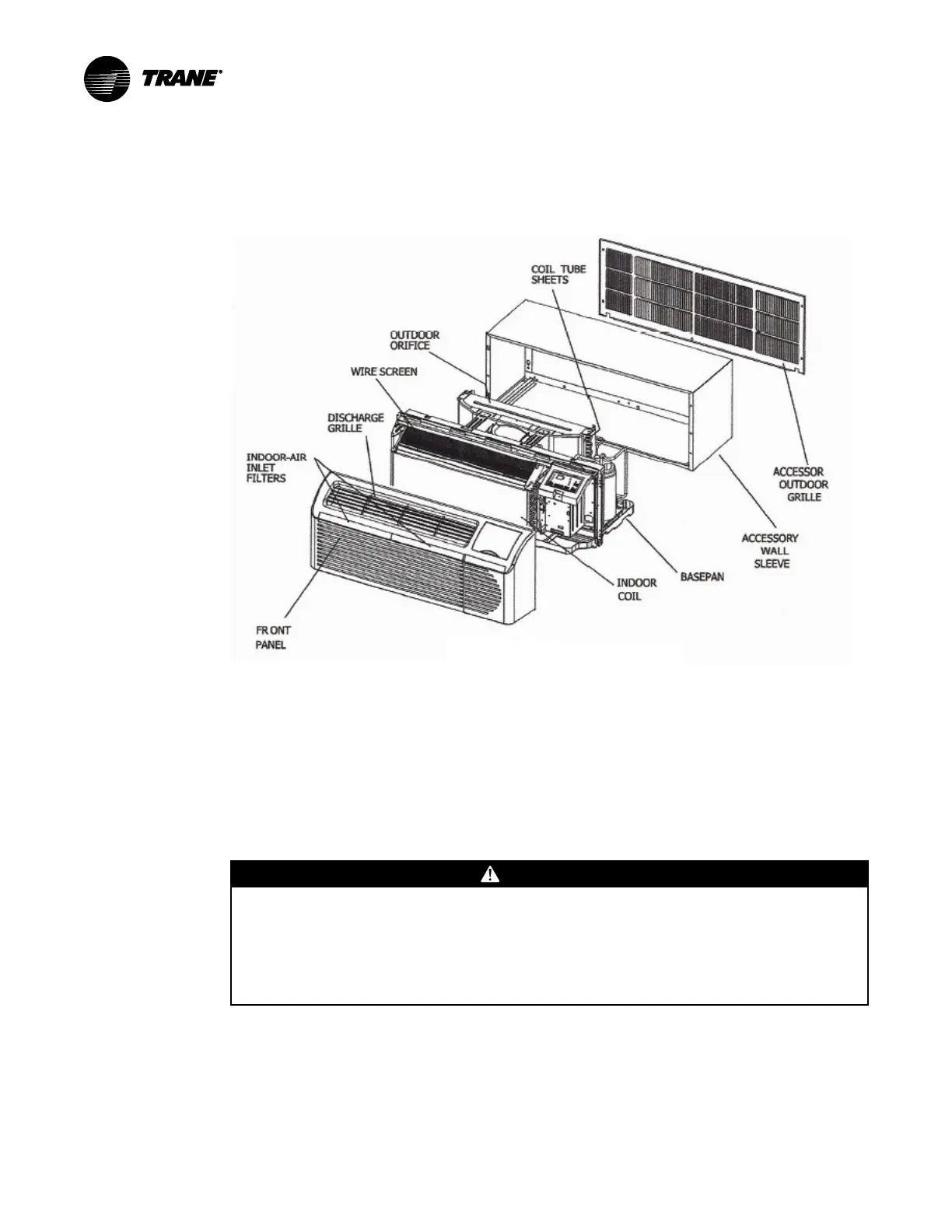

The image below shows the typical unit components that are ordered and installed.
IImmppoorrttaanntt:: Proper installation is the responsibility of the installer. Product failure due to
improper installation is not covered under warranty.
To install the Trane Wall Sleeve and Grille, refer to the latest installation instructions, PTAC-SVN-
028 and PTAC-SVN027.
Considerations for Use of Existing Sleeves
IImmppoorrttaanntt:: For retrofit applications, foam seals on outdoor coil tube sheets must make a seal
between the coil and the grill or loss of performance and premature damage to the
major components can result.
WWAARRNNIINNGG
LLiivvee EElleeccttrriiccaall CCoommppoonneennttss!!
FFaaiilluurree ttoo ffoollllooww aallll eelleeccttrriiccaall ssaaffeettyy pprreeccaauuttiioonnss wwhheenn eexxppoosseedd ttoo lliivvee eelleeccttrriiccaall
ccoommppoonneennttss ccoouulldd rreessuulltt iinn ddeeaatthh oorr sseerriioouuss iinnjjuurryy..
WWhheenn iitt iiss nneecceessssaarryy ttoo wwoorrkk wwiitthh lliivvee eelleeccttrriiccaall ccoommppoonneennttss,, hhaavvee aa qquuaalliiffiieedd lliicceennsseedd
eelleeccttrriicciiaann oorr ootthheerr iinnddiivviidduuaall wwhhoo hhaass bbeeeenn pprrooppeerrllyy ttrraaiinneedd iinn hhaannddlliinngg lliivvee eelleeccttrriiccaall
ccoommppoonneennttss ppeerrffoorrmm tthheessee ttaasskkss..
In applications when the unit is a replacement, it is recommended to use a Trane sleeve. This unit
can be retrofitted to other manufacturers similar sleeves if outdoor unit airflow is not restricted or
recirculated.
NNoottee:: Ensure the outdoor grille is installed on the sleeve. For any sleeve retrofit applications, be
sure that the foam seals (factory installed on the tube sheets) provide a good seal between
the grille and outdoor coil tube sheets. These foam seals provide a barrier that stops the
inside air from mixing with the outside air (known as air recirculation).
