Model Number Description
Use the following to determine the correct model number.

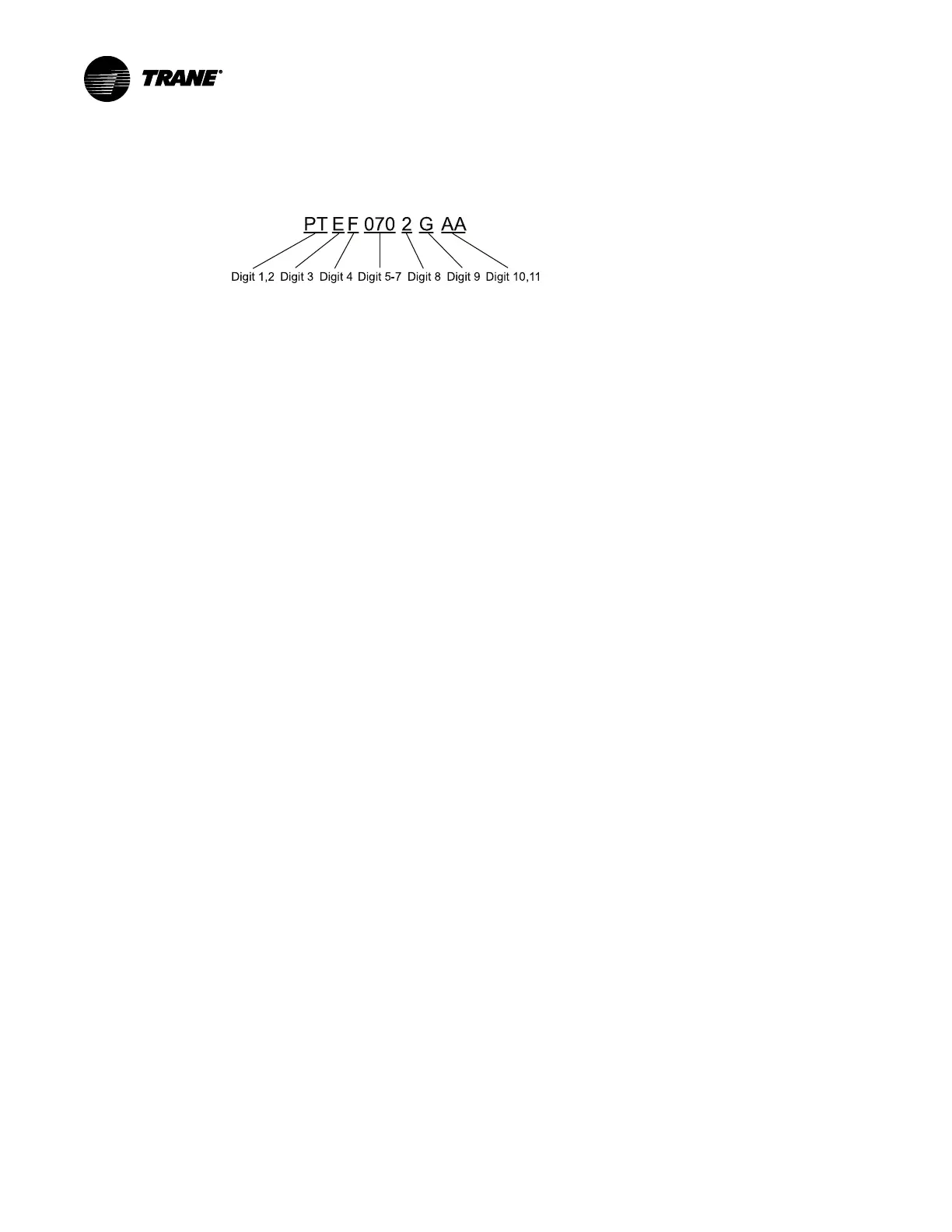

PT E F 070 2 G AA
Digit 1,2 Digit 3 Digit 4 Digit 5-7 Digit 8 Digit 9 Digit 10,11
• DDiiggiitt 11,, 22;; PPrroodduucctt FFaammiillyy
– PT = Packaged Terminal Unit
• DDiiggiitt 33;; HHeeaattiinngg MMeetthhooddss
– E = Cooling with Electric Heat
– H = Heat Pump with Electric Heat
• DDiiggiitt 44;; DDeevveellooppmmeenntt SSeeqquueennccee
– F
• DDiiggiitt 55 tthhrroouugghh 77;; SSiizzee aanndd CCoooolliinngg
– 070 = 7,000 Btu
– 090 = 9,000 Btu
– 120 = 12,000 Btu
– 150 = 15,000 Btu
• Digit 8; Electrical Voltage
– 1 = 208/230 Vac
– 2 = 265 Vac
• DDiiggiitt 99;; EElleeccttrriicc HHeeaatt SSiizzee
– G = Maximum of 3.5 kW
– H = Maximum of 5.0 kW
• DDiiggiitt 1100,, 1111;; DDeessiiggnn SSeeqquueennccee
– AA = First
– AB = Second
To Next Page
