Trane R Series Installation, Operation And Maintenance

Unit Size A B C D E F G H I J K L
140 Std 50.63 52.63 141.63 143.63 15 46 53 53 n/a 40.5 109.5 187
155 Std 50.63 52.63 139.63 143.63 15 46 53 53 n/a 40.5 109.5 187
170 Std 50.63 54.63 139.63 143.63 15 46 53 53 n/a 40.5 109.5 187
140 High 50.63 54.63 139.63 143.63 15 46 53 53 n/a 40.5 109.5 187
185 Std 56.63 64.63 177.5 176 15 48 76 76 n/a 46.5 133.5 223
200 Std 54.25 52.75 177.5 176 15 48 76 76 n/a 46.5 133.5 223
155 High 56.38 64.63 175.63 173.75 15 48 76 76 n/a 46.5 133.5 223
170 High 56.38 54.63 175.63 173.75 15 48 76 76 n/a 46.5 133.5 223
225 Std 72.25 88.75 213.5 194 15 39 69 64 64 59.5 143.5 259
185 High 74.38 90.63 213.5
194 15 39 69 64 64 59.5 143.5 259
250 Std 72.25 52.75 213.5 194 15 39 69 64 64 59.5 143.5 259
200 High 72.25 52.75 213.5 194 15 39 69 64 64 59.5 143.5 259
Dimensions and Weights
36 RTAC-SVX01J-EN

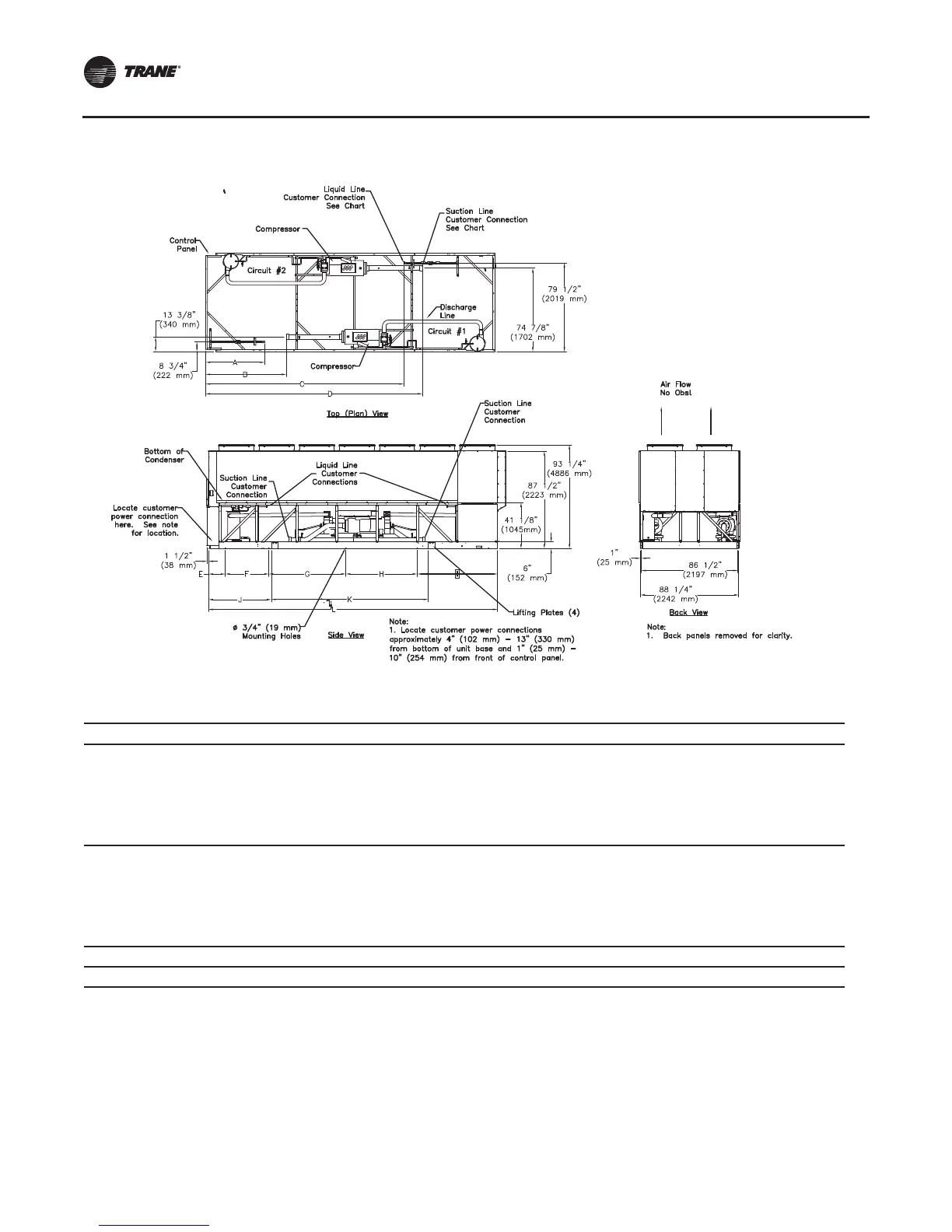

Figure 10. Unit dimensions of condenser/compressor unit for remote evap option
Table 11. Unit dimensions of condenser/compressor unit for remote evap option (in)

Trane R Series Specifications

General

Brand	Trane
Model	R Series
Category	Chiller
Language	English
