Dimensions and Weights
RTAC-SVX01J-EN 37

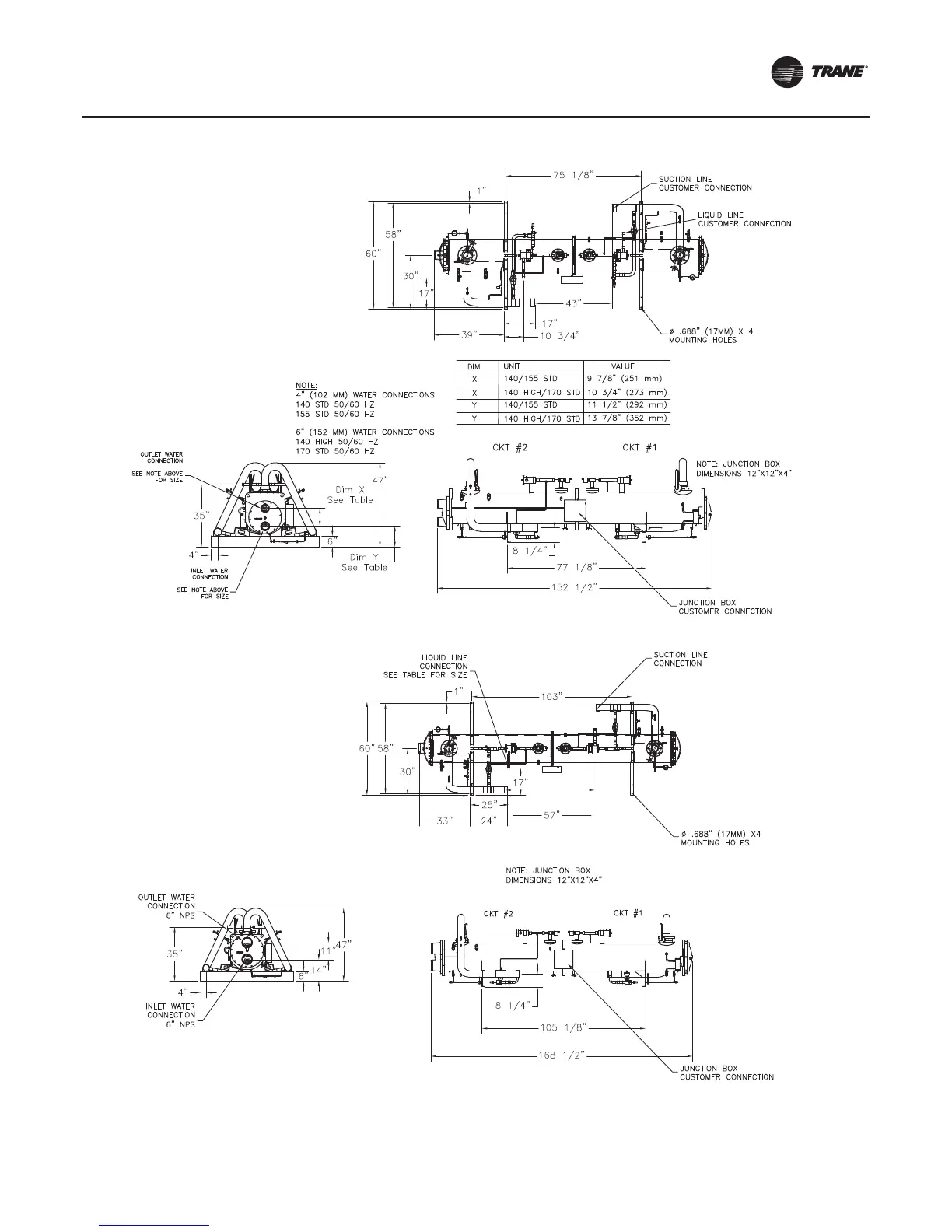

Figure 11. Unit dimensions for remote evaporator 140-170T standard efficiency, 140T high efficiency
Figure 12. Unit dimensions for remote evaporator 185-250T standard efficiency, 155-200T high efficiency
CLEARANCES:
NO OBSTRUCTIONS RECOMMENDED 3 FT
EACH SIDE OF EVAPORATOR, 2 FT OFF
ONE END, 148 IN OFF OTHER END.
AREA REQUIRED FOR UNIT OPERATION
AND MAINTENANCE.
CLEARANCES:
NO OBSTRUCTIONS RECOMMENDED 3 FT
EACH SIDE OF EVAPORATOR, 2 FT OFF
ONE END, 148 IN OFF OTHER END.
AREA REQUIRED FOR UNIT OPERATION
AND MAINTENANCE.
