Trane R Series Installation, Operation And Maintenance

Installation - Mechanical
RTAC-SVX01J-EN 45

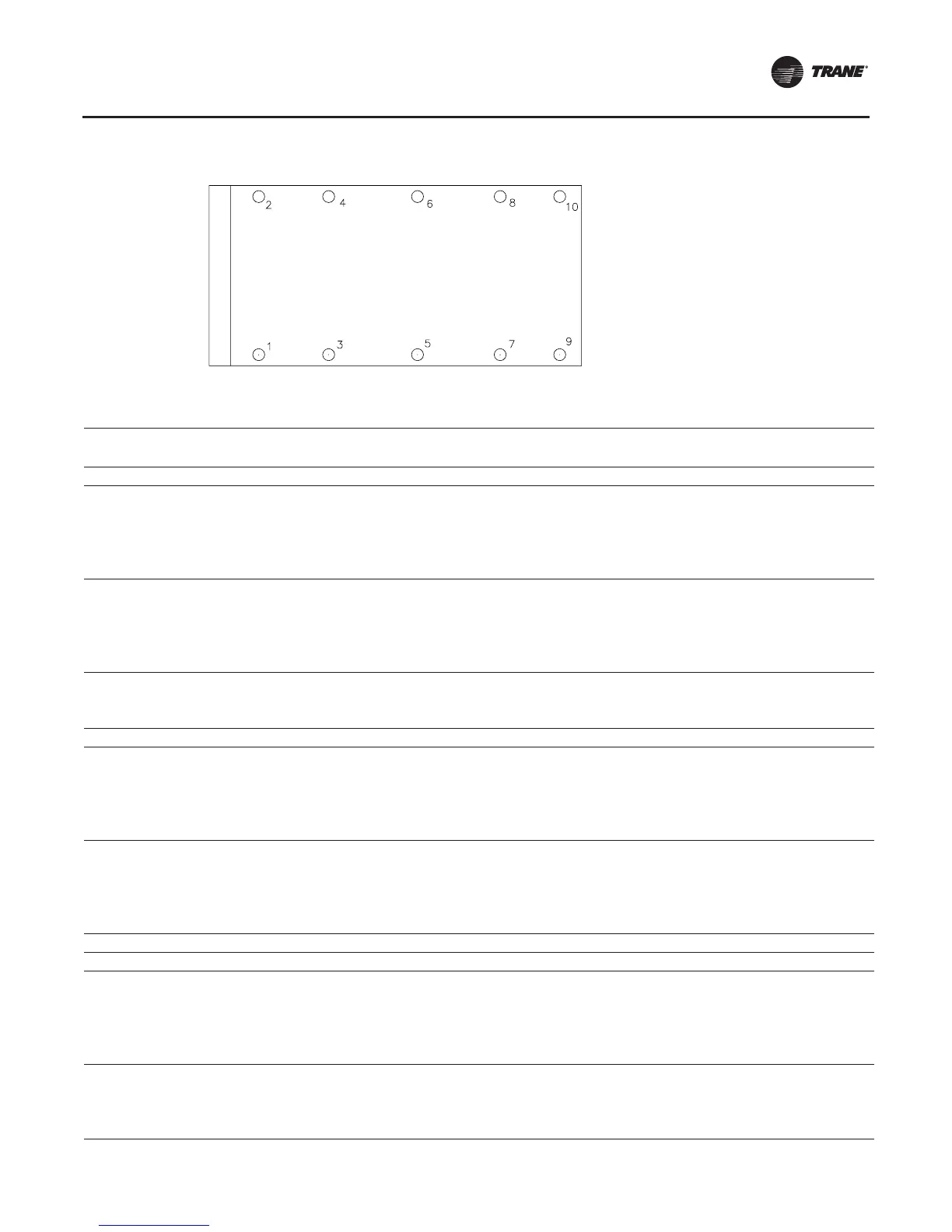

Figure 17. Mounting point locations
CONTROL PANEL (CKT 1 PANEL)
Table 21. Isolator selections - packaged units - 60 Hz
Size
(tons)
Location
12345678910
Standard Efficiency
140 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
155 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
170 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
185 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
200 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
225 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
250 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
275 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
300 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
350 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
400 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
450 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
500 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
High Efficiency
140 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
155 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
170 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
185 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
200 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
225 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
250 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
275 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
300 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
350 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
400 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
Extra Efficiency
140 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 - -
155 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
170 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
185 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
200 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62 Red 62
250 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
275 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
300 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
350 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64 Gray 64
