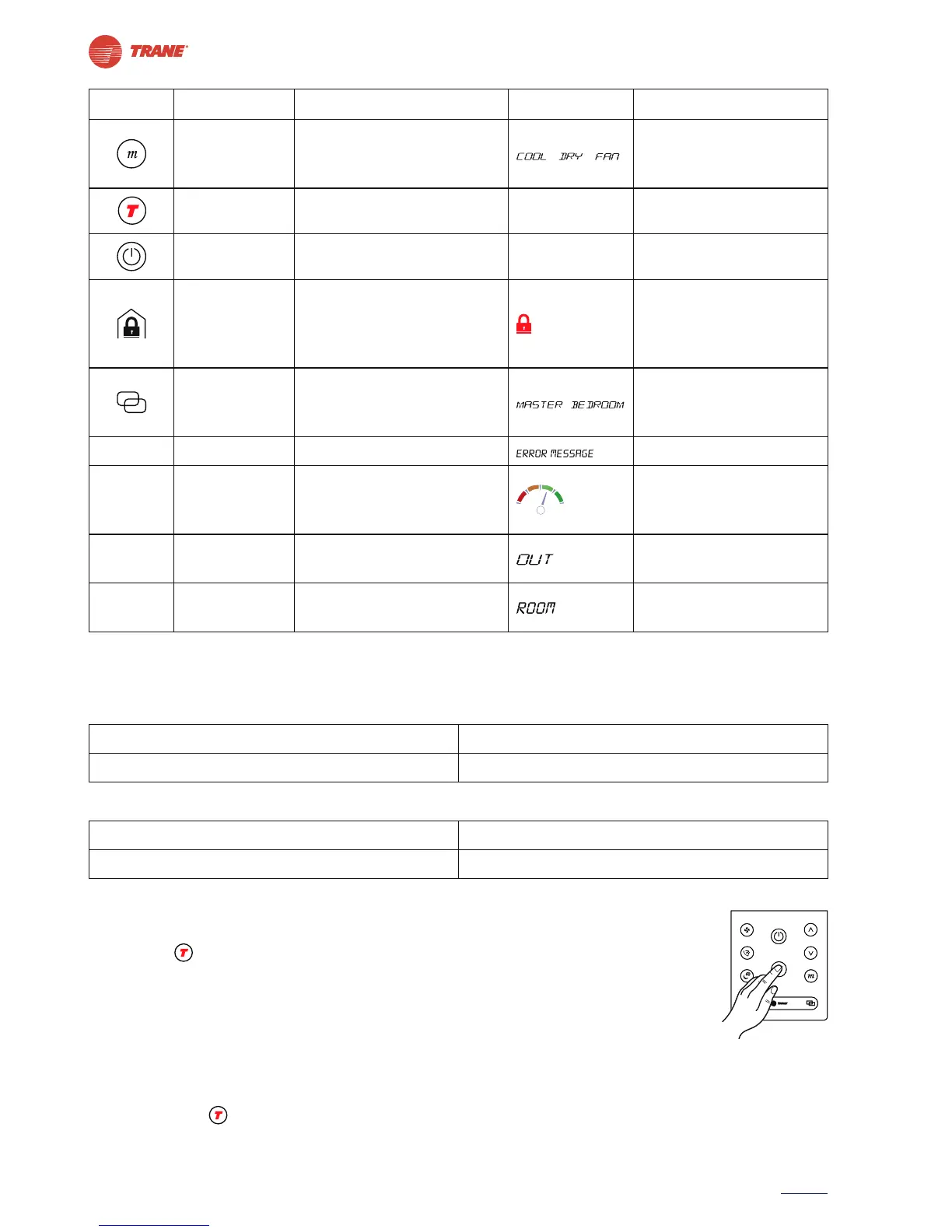

Symbol Button Function Display Description
Mode
Adjustment
Changes the mode as such,
press once for COOL, twice
for DRY and thrice for FAN.
/ /
Shows mode selection
(COOL/DRY/FAN)
TRANE Mode Activates TRANE mode Refer Figure - 5 Activates TRANE mode
Power ON/OFF NA* ON/OFF
Night
latch mode
activation/
deactivation
Activates/deactivates
night latch mode on TRANE
lock.
Shows night latch mode
selection
Multi room
(Room
Conguration)
Selects the split air
conditioner to control.
Shows room selection as
for each room AC settings
- NA* - Indicates error
- NA* -
Shows dierent eciency
zone (Refer section
2.4.2.2)
- NA* -
Shows current outdoor
ambient temperature.
- NA* -
Shows current room
temperature.
* NA: Not Applicable
2.4.1. Range of Operation
2.4.1.1. Lock and Indoor Unit range
Range (Indoor) Range (Outdoor - without any obstacles)
15 meter 1000 meter
2.4.1.2. Remote and Indoor Unit range
Range (Indoor) Range (Outdoor - without any obstacles)
14 meter 160 to 175 meter
2.4.2. Functions
2.4.2.1. TRANE Mode
Press to start or stop TRANE mode (Refer Figure - 7).
The unit when powered ON by remote control starts with TRANE mode by default.
The TRANE mode will set room temperature and fan speed automatically to
provide an energy ecient and comfortable environment hence the energy
eciency meter always shows dark green (Refer Figure - 5)
It will set room temperature automatically based on outdoor temperature.
Unit shall exit ‘TRANE mode’ if user changes any of the following: set point, fan speed, mode, sleep
and also if button is pressed.
1.
2.
3.
4.
5.
