20 CTV-PRB004-EN
Low-Voltage Starter Types
The one-door remote-mounted starter size is generally used for 155- to 606-amp starters with no
disconnect.The two-door size is used for 640- to 1,700-amp starters with no disconnect.The three-
door size is used for 1,385- to 1,700-amps when disconnects are included.

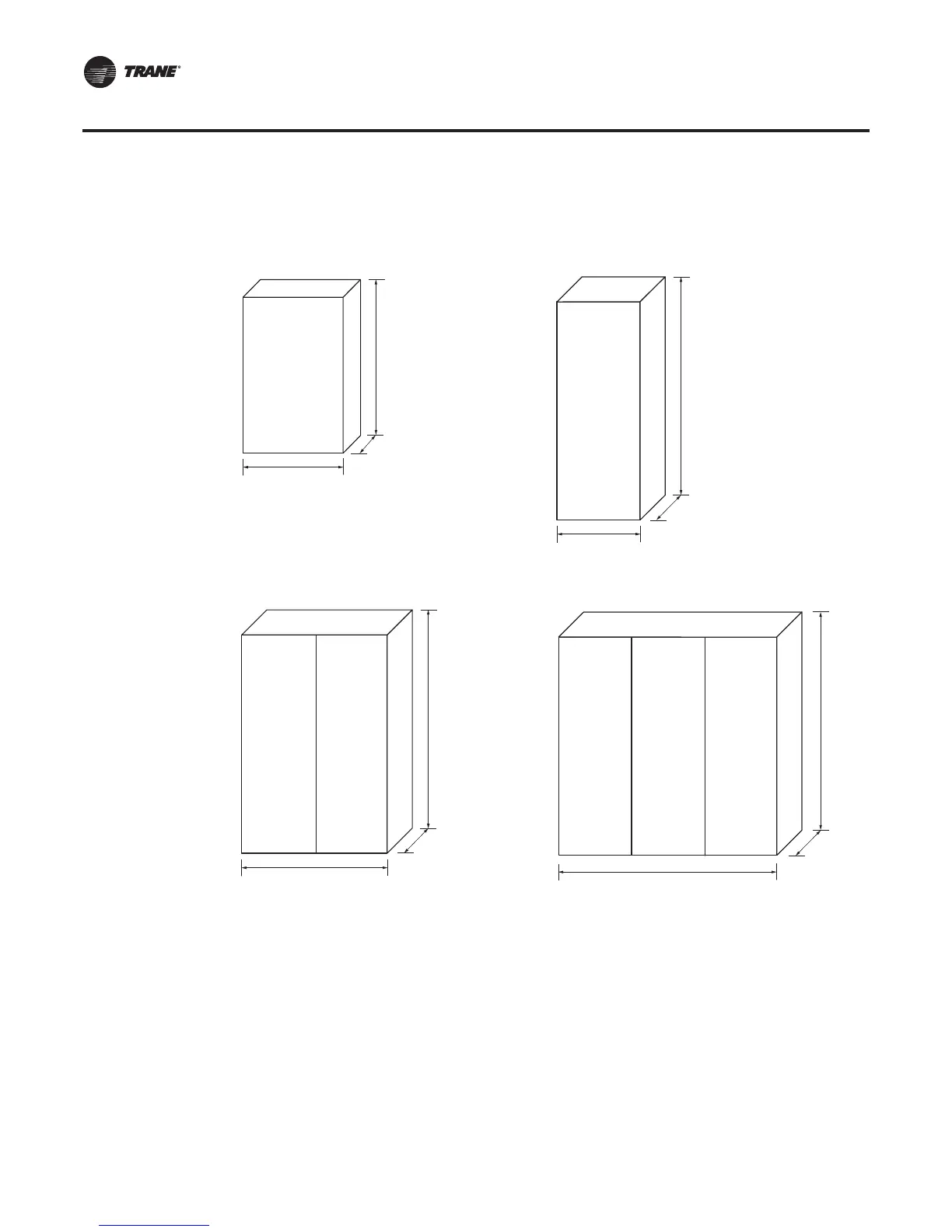

Figure 8. Unit-mounted WD Figure 9. Remote 1-door WD
Figure 10. Remote 2-door WD Figure 11. Remote 3-door WD
Stator
Squirrel-cage
Rotor shaft
60”
13.5”
38.5”
Stator
84”
19.3”
32”
Stator
Squirrel-cage
Rotor shaft
84”
19.3”
56”
Stator
84”
19.3”
84”
CTV-PRB004.book Page 20 Sunday, December 18, 2011 6:39 PM
