CTV-PRB004-EN 47
Medium-Voltage Starter Types (10,000–13,800 Volts)
Medium Voltage—Primary Reactor (10–13.8 kV)
Primary Reactor Starter (10,000–13,800 volts)
Starting sequence
1. Refer to the primary reactor starting sequence (“Starting sequence, p. 35).
Standard features
4 kVA control-power transformer
Primary and secondary current transformers (CTs)
Potential transformers (PTs)
Grounding provisions
Bolted line-power connections
Bolted load-side connections for remote starters
Standard motor protection
Dimensions
Typical dimensions for remote-mounted primary reactor starters are shown in Figure 36, p. 47.
PFCCs, if required, are housed in a 36-inch wide auxiliary cabinet (not shown). Always consult the
submittal drawings for as-built dimensions.
Environmental specification
Designed, developed and tested in accordance with IEC 60470, 62271-200
NEMA 1 enclosure as standard
Operation from sea level to 6,000 ft (1,829 m)
Operating ambient temperature range 32°F to 104°F (0°C to 40°C)
Relative humidity, non-condensing 5 percent to 95 percent
Non-operating ambient temperature range -40°F to 158°F (-40°C to 70°C)
Voltage utilization range ±10 percent

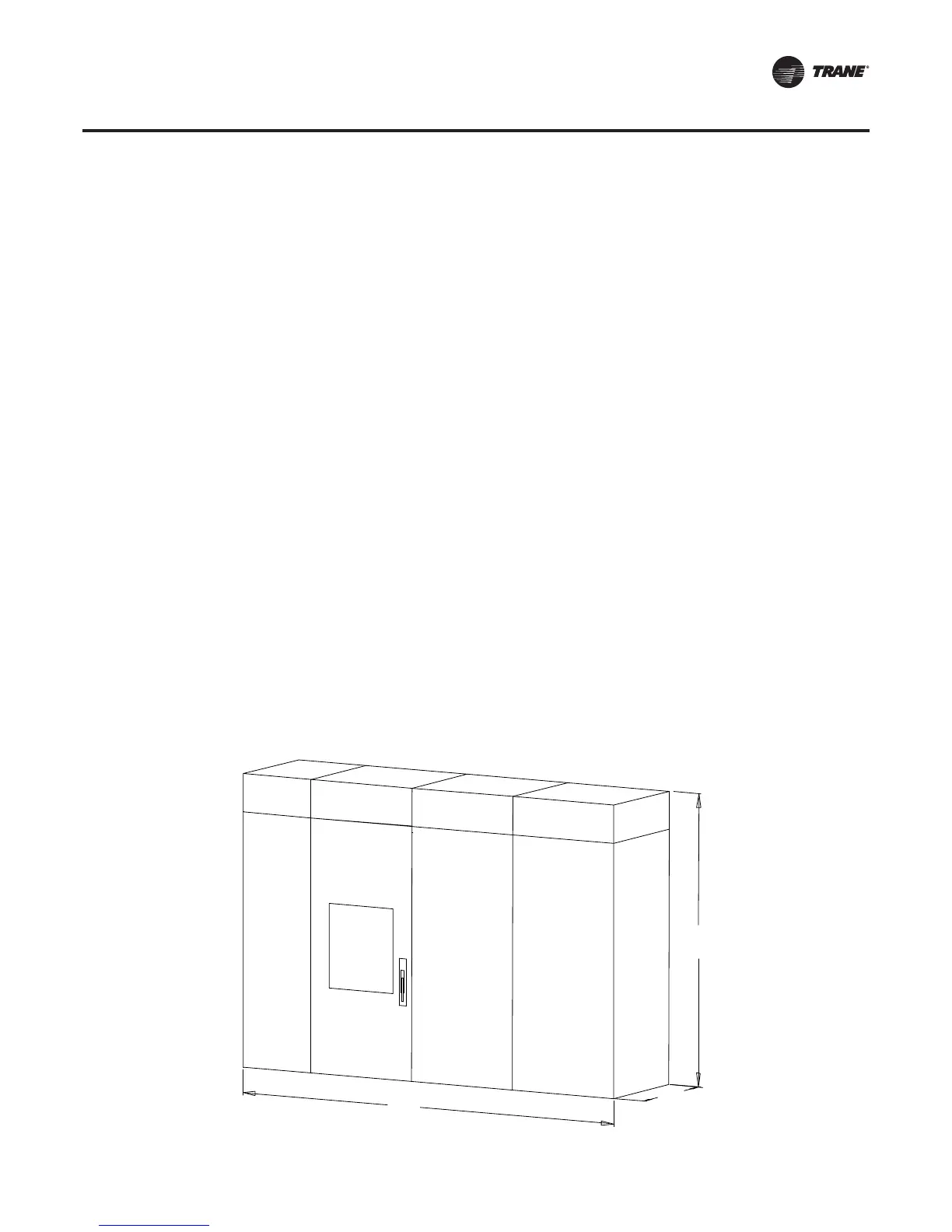

Figure 36. Remote-mounted, primary reactor dimensions
96"
36"
132"
INCOMING
LINE
LOW-VOLTAGE
SECTION
MAIN BUS
MAIN BUS
MAIN BUS
