34 CTV-PRB004-EN
Medium-Voltage Starter Types (2,300–6,600 Volts)
Grounding provisions
Bolted line-power connections
Bolted load-side connections for remote starters
Standard motor protection
Environmental specification
Designed, developed, and tested in accordance with UL 347
NEMA 1 enclosure as standard
Operation from sea level to 6,000 ft (1,829 m)
Operating ambient temperature range 32°F to 104°F (0°C to 40°C)
Relative humidity, non-condensing 5 percent to 95 percent
Non-operating ambient temperature range -40°F to 158°F (-40°C to 70°C)
Voltage utilization range ±10 percent
Dimensions
Typical dimensions for unit- and remote-mounted across-the-line starters are shown in Figure 24,
p. 33 and Figure 25, p. 34. Always consult the submittal drawings for as-built dimensions.

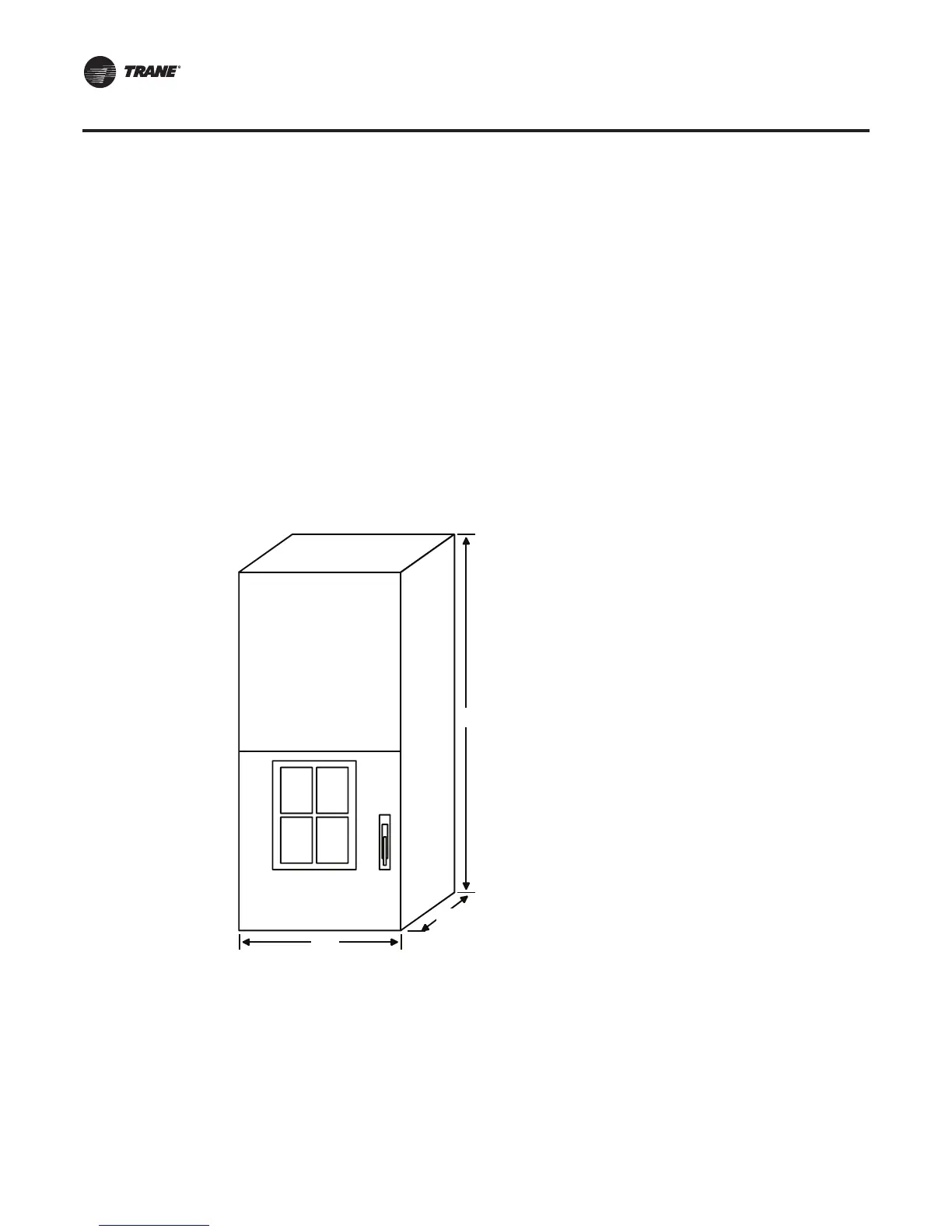

Figure 25. Remote-mounted XL
36"
30"
80"
