64 CTV-PRB004-EN
Starter Options
Enhanced Electrical Protection Package
Applications that require the utmost reliability and rugged construction may prompt the selection
of the Enhanced Electrical Protection Package. CenTraVac chillers equipped with the Enhanced
Electrical Protection Package are constructed to NEMA 4 guidelines and feature completely
enclosed wiring in seal-tight conduits and junction boxes.The Enhanced Electrical Protection
Package control panel also includes some additional installation features and layout
improvements.The purge is also upgraded to NEMA 4 construction.The entire chiller is silicone-
friendly—all silicone is encapsulated and non-volatile so it does not affect any industrial and/or
chemical processes.
Note: Unit shown with optional, unit-mounted control power transformer (below motor terminal
box).

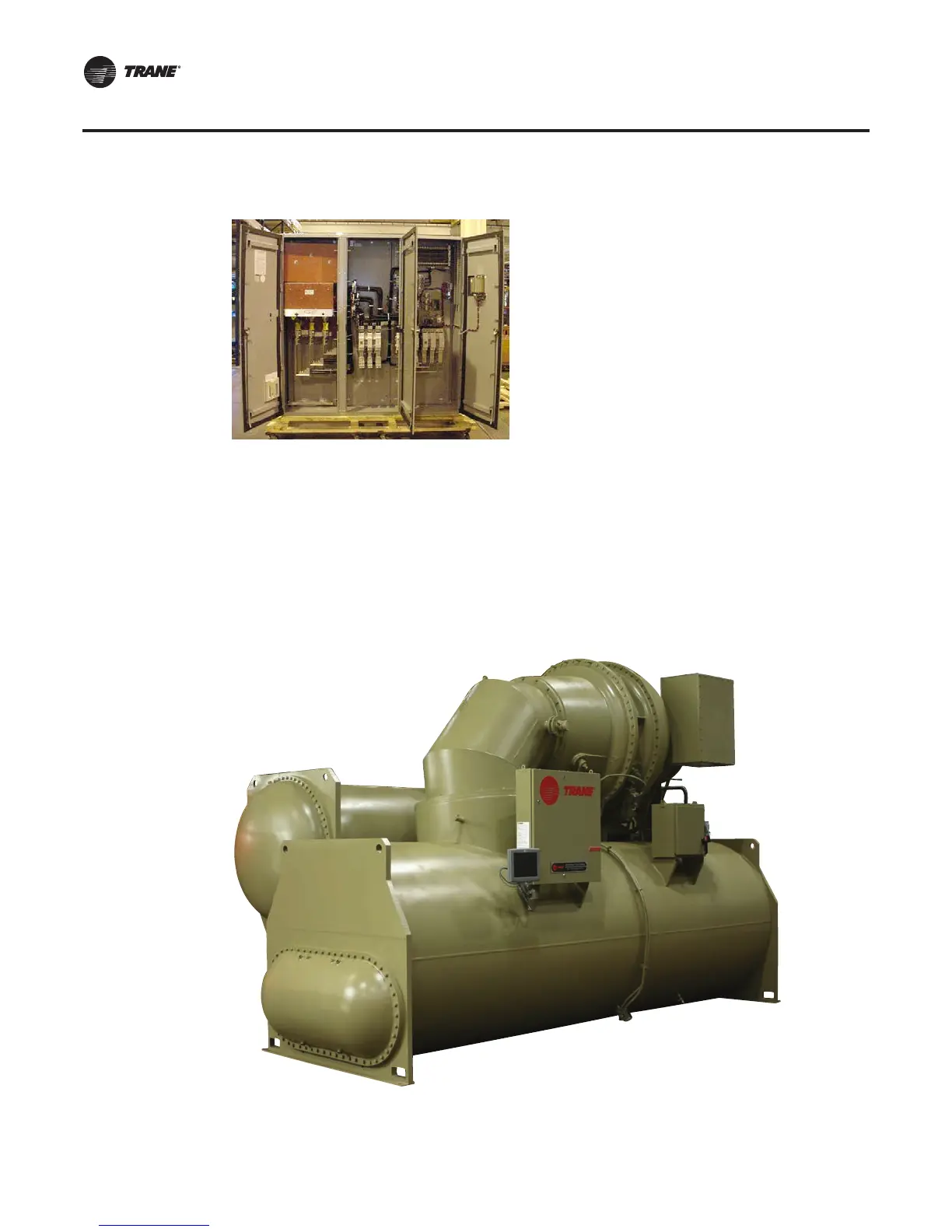

Figure 45. High-fault wye-delta starter
Figure 46. CenTraVac with Enhanced Electrical Protection Package (AdaptiView unit controller)
