ACC-APG002A-EN
9
Table 1. Field Connections (continued)
Connector Function Pin #
Signal
8 1.5K Ohms Pull-down
9 GND
Unit Configuration
The Odyssey system can be configured via an onboard user interface or via the Symbio Service and
Installation mobile app.
Onboard User Interface
The onboard user interface provides a 2 x 16 Backlit LCD display and navigational buttons. This allows
the user to view status, configure, and troubleshoot the unit without additional tools.

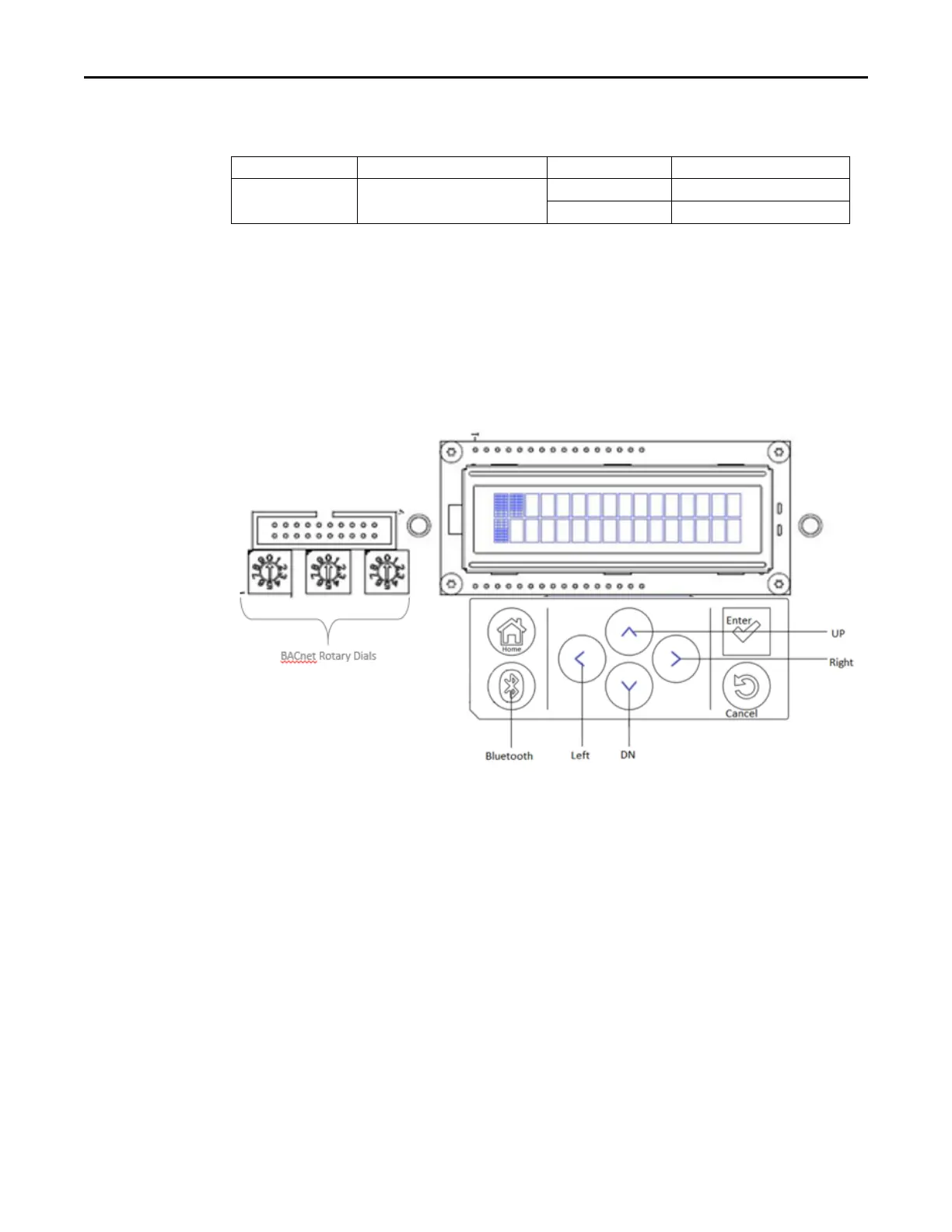

Figure 2. Symbio 700 Onboard User Interface
The interface provides an intuitive menu structure: alarms, status, service, settings, and utilities.
Configuration of the unit is accomplished under the utilities menu item. A complete list of functions is
outlined in User Guide, Symbio™ 700 (BAS-SVU054*-EN).
To configure the unit, navigate to the utilities menu and press “Enter”. Once in the utilities menu the user
has additional submenu options. This allows the user to navigate and configure the appropriate setting
quickly and easily.
Mobile Application
The Trane Symbio™ Service and Installation mobile app is required to setup, edit, and confirm the
communication protocol and associated settings.
The free download of Trane Symbio Service and Installation mobile app is available on the App Store®
for iOS, and on Google Play® for Android™.
Symbio 700 Overview
