STEP 1 - Carry the unit to the installation location.
STEP 2 - Reassemble by reversing the steps listed
in Section 4 if disassembly was required. If cut, wire
ties that held the sensor wiring must be replaced.

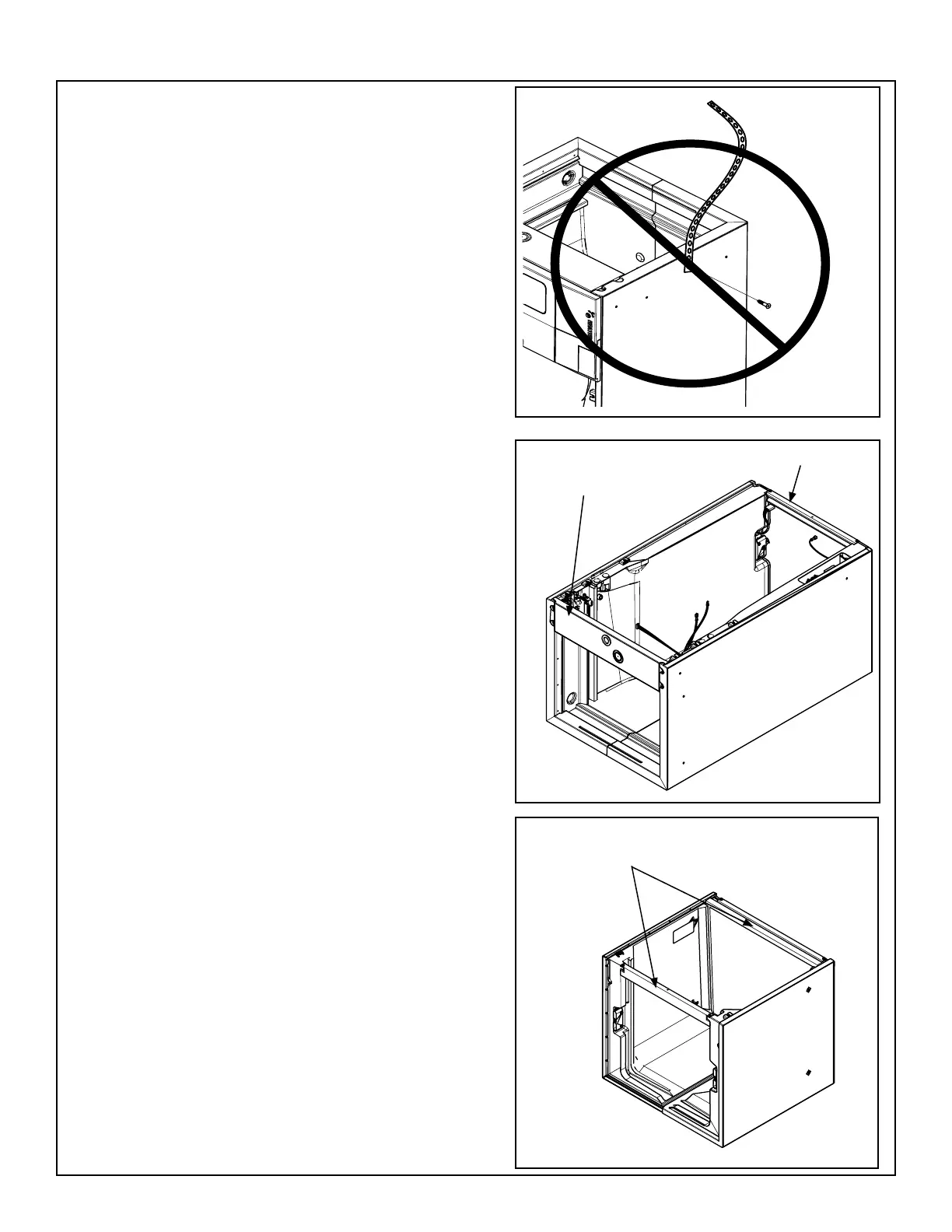

Important: Under no conditions should metal strap-
ping be attached to the unit to be used as support
mechanisms for carrying or suspension purposes.
Approved carrying:
1. Hold by the cross members within the cabinet
or unit top plate and use as handles for lifting
and carrying the coil and blower sections.
Cross Members
Cross Member
Unit Top Plate
Section 5. Place Unit at Location
5.1 Carry Unit
