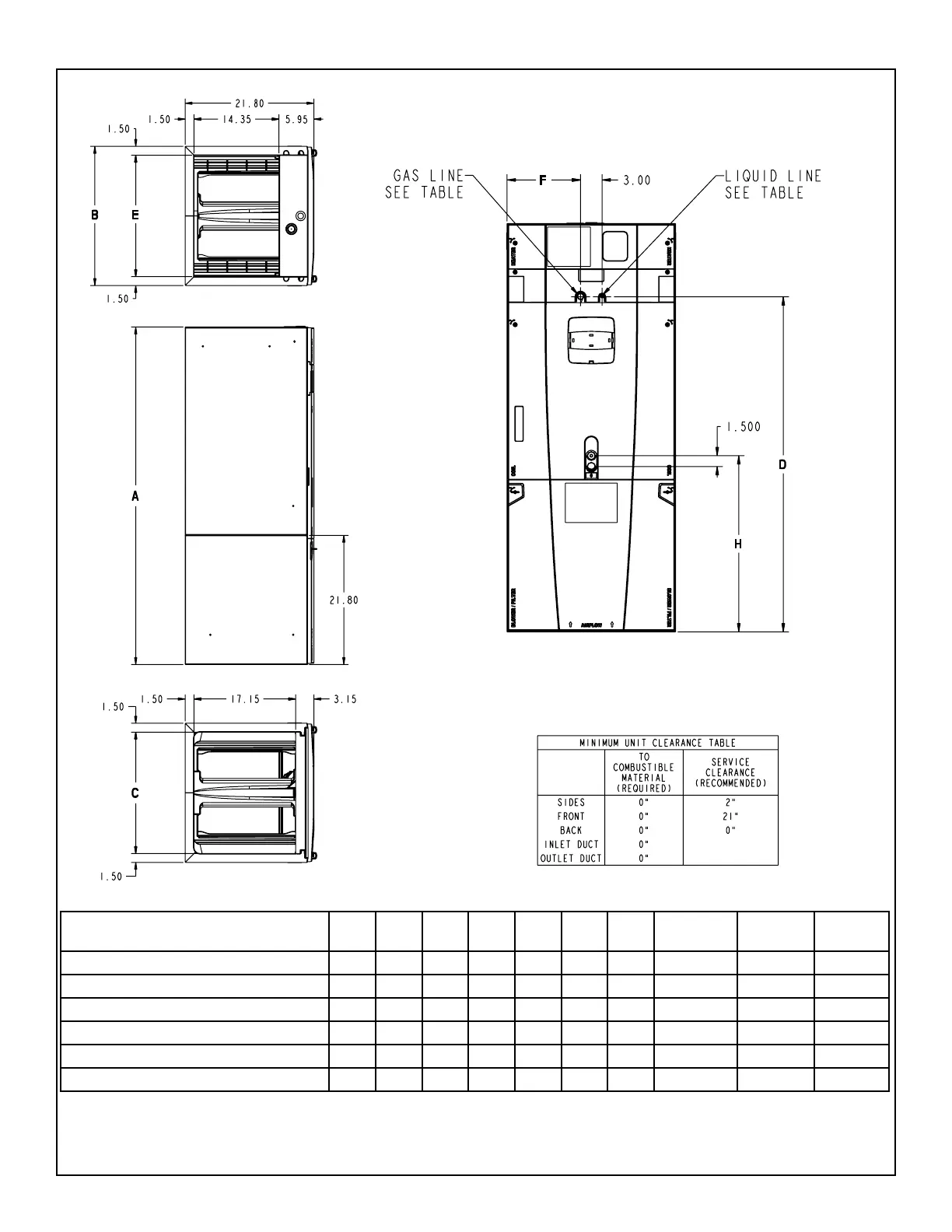

Section 15. Unit Outline Drawing
MODEL NO. A B C D E F H FLOW
CONTROL
GAS LINE
BRAZE
LIQ LINE
BRAZE
TAM7A0A24H21SB 49.9 17.5 14.5 39.6 14.5 7.3 24.4 EEV 3/4 3/8
TAM7A0B30H21SB 55.7 21.3 18.4 45.5 18.4 9.2 24.8 EEV 3/4 3/8
TAM7A0C36H31SB 56.9 23.5 20.5 46.7 20.5 10.3 24.2 EEV 7/8 3/8
TAM7A0C42H31SB 56.9 23.5 20.5 46.7 20.5 10.3 24.5 EEV 7/8 3/8
TAM7A0C48H41SB 61.7 23.5 20.5 51.5 20.5 10.3 24.9 EEV 7/8 3/8
TAM7A0C60H51SB, TAM7B0C60H51SA 61.7 23.5 20.5 51.5 20.5 10.3 24.9 EEV 7/8 3/8
