Section 3. Unit Preparation

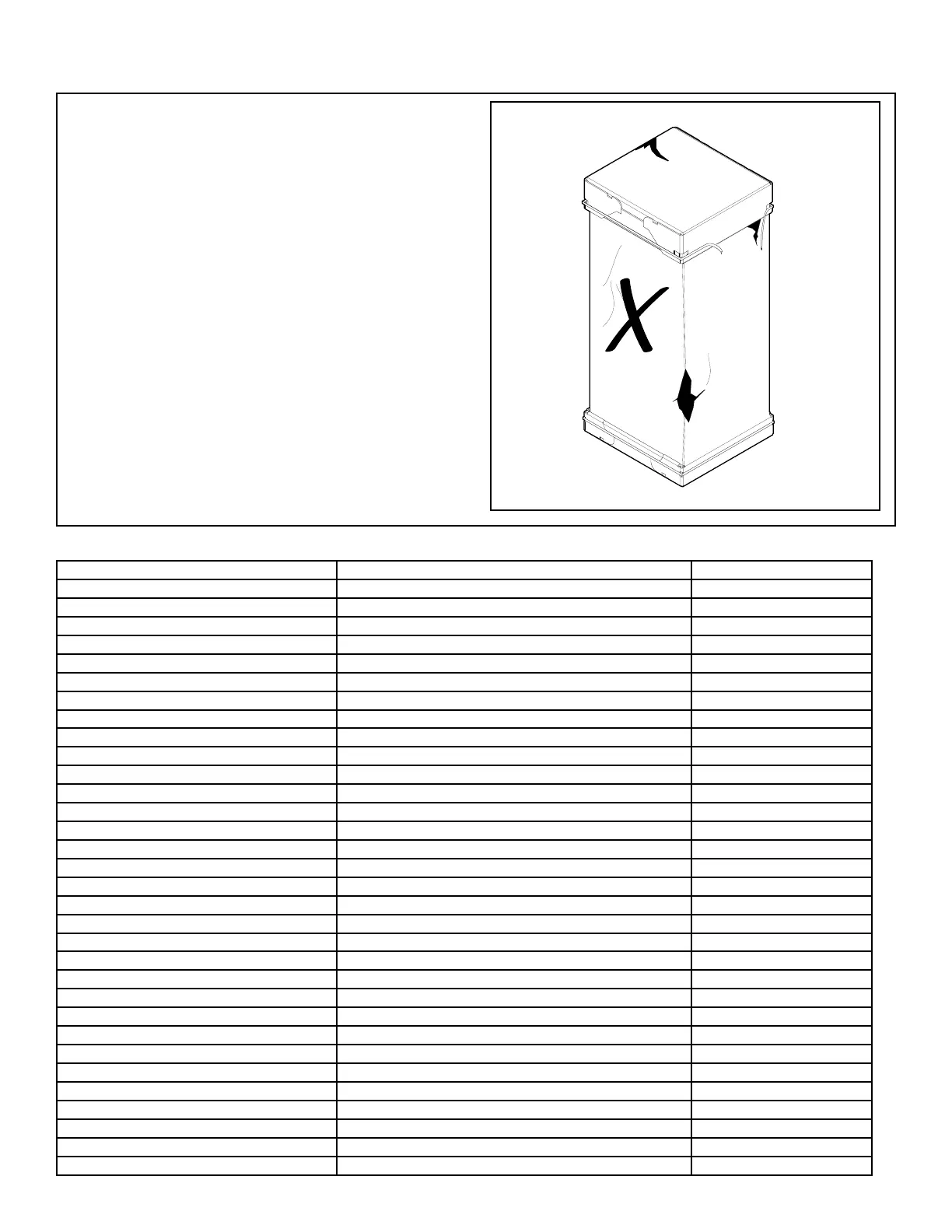

3.1 Prepare The Unit For Installation

STEP 1 - Check for damage and report promptly to

the carrier any damage found to the unit.

Note: If the unit must be transported in a horizontal

position, it must be laid on its back (marked “REAR”

on carton).

Note: After the unit is removed from the carton,

depress the Schrader valve to verify coil is pressur-

ized.

Accessory Number Description Fits Cabinet Size

BAYEVAC05BK1AA Electric Heater, 5kW, Breaker, RS-485 Control, 1 Ph A to C

BAYEVAC05LG1AA Electric Heater, 5kW, Lugs, RS-485 Control, 1 Ph A to C

BAYEVAC08BK1AA Electric Heater, 8kW, Breaker, RS-485 Control, 1 Ph A to C

BAYEVAC08LG1AA Electric Heater, 8kW, Lugs, RS-485 Control, 1 Ph A to C

BAYEVAC10BK1AA Electric Heater, 10kW, Breaker, RS-485 Control, 1 Ph A to C

BAYEVAC10LG1AA Electric Heater, 10kW, Lugs, RS-485 Control, 1 Ph A to C

BAYEVBC15BK1AA Electric Heater, 15kW, Breaker, RS-485 Control, 1 Ph B to C

BAYEVBC20BK1AA Electric Heater, 20kW, Breaker, RS-485 Control, 1 Ph C

BAYEVCC25BK1AA Electric Heater, 25kW, Breaker, RS-485 Control, 1 Ph C

BAYEVAC10LG3AA Electric Heater, 10kW, Lugs, RS-485 Control, 3 Ph A to C

BAYEVBC15LG3AA Electric Heater, 15kW, Lugs, RS-485 Control, 3 Ph B to C

BAYSUPFLGAA Supply Duct Flange A A

BAYSUPFLGBA Supply Duct Flange B B

BAYSUPFLGCA Supply Duct Flange C C

BAYRETFLGAA Return Duct Flange A A

BAYRETFLGBA Return Duct Flange B B

BAYRETFLGCA Return Duct Flange C C

BAYSRKIT100A Side Return Kit A to C

TASB175SB Plenum Stand with integrated sound baffle A A

TASB215SB Plenum Stand with integrated sound baffle B B

TASB235SB Plenum Stand with integrated sound baffle C C

MITISRKIT1620 Side Return Kit with Filter A to C

BAYICSKIT01A Internal Condensate Switch Kit A to C

BAYHHKIT001A Horizontal Hanger Kit A to C

BAYUVCLK001A UVC Lights A to C

BAYLVKIT100A Low Voltage Conduit Entry Kit A to C

BAYSPEKT200A Single Power Entry Kit A to C

BAYWVAA05SC1AA Hydronic Coil - 50,000 BTUH - Slide-in with control A to A

BAYWVBB07SC1AA Hydronic Coil - 70,000 BTUH - Slide-in with control B to B

BAYWVCC08SC1AA Hydronic Coil - 80,000 BTUH - Slide-in with control C to C

BAYWACC11SC1AA Hydronic Coil - 100,000 BTUH - Add-on C to C

BAYWVBRD485A RS-485 Control for BAYWACC11SC1AA C to C

Table 3.2

3.2 Unit Accessories
