Section 6. Unit Location Considerations
6.1 Unit Dimensions and Weight
Model
Number
H x W x D
in.
Coil and Heater
Compartment
Height *
in.
Unit
Net Weight
lbs.
TAM7A0A24H21SB 49.9 x 17.5 x 21.8 28.1 120
TAM7A0B30H21SB 55.7 x 21.3 x 21.8 33.9 133
TAM7A0C36H31SB 56.9 x 23.5 x 21.8 35.1 143
TAM7A0C42H31SB 56.9 x 23.5 x 21.8 35.1 158
TAM7A0C48H41SB 61.7 x 23.5 x 21.8 39.9 174
TAM7A0C60H51SB
TAM7B0C60H51SA
61.7 x 23.5 x 21.8 39.9 178
* May be “A” or “T”
*Blower compartment height is 21.8 inches.

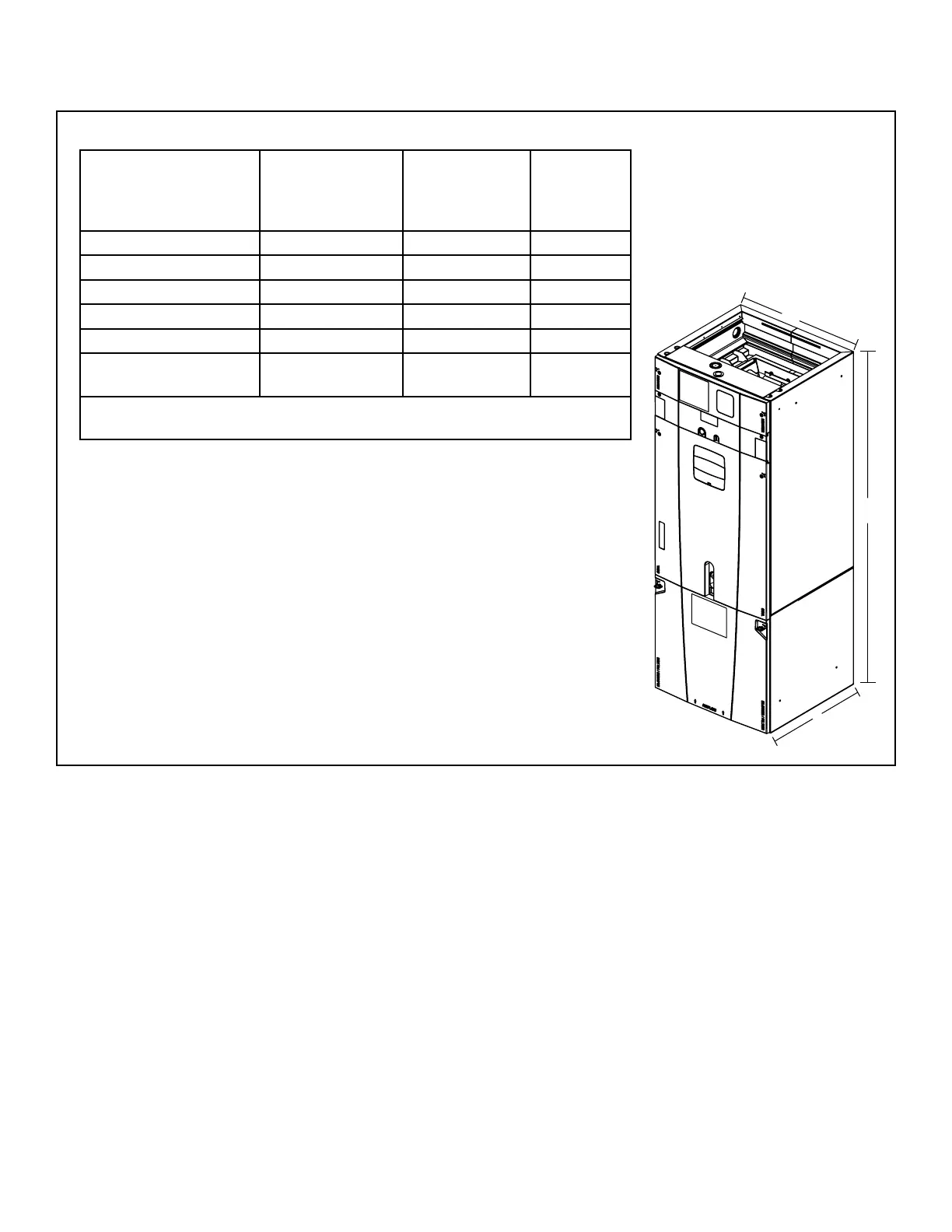

Table 7.1
D
H
W
