Trane TAM7A0C36H31SB User Manual

29
Comfort Control
Air Handler
Air Conditioner
Neatly bundle all low voltage
wires behind the service
valve cover as shown.
Field wiring
Yellow
Blue
Red
Yellow
Green
White
Blue
B
B - Blue
W
G
Y1
Y2
Y1 - Yellow
R
O
O
R
B
YI
W1
YO
Y2
BK
G
W2
W3 *
(In)
(Out)
Comfort Control
Air Handler
Heat Pump
Neatly bundle all low voltage
wires behind the service
valve cover as shown.
Field wiring
Yellow
Blue
Black
(X2)
Red
Orange
Red
Yellow
Orange
Green
White
Blue
B
B - Blue
W
X2
G
Y1
Y1 - Yellow
R
O
O
R
B
YI
Y2
W1
YO
BK
G
W2
W3 *
R - Red
O - Orange
(In)
(Out)
W1 - White

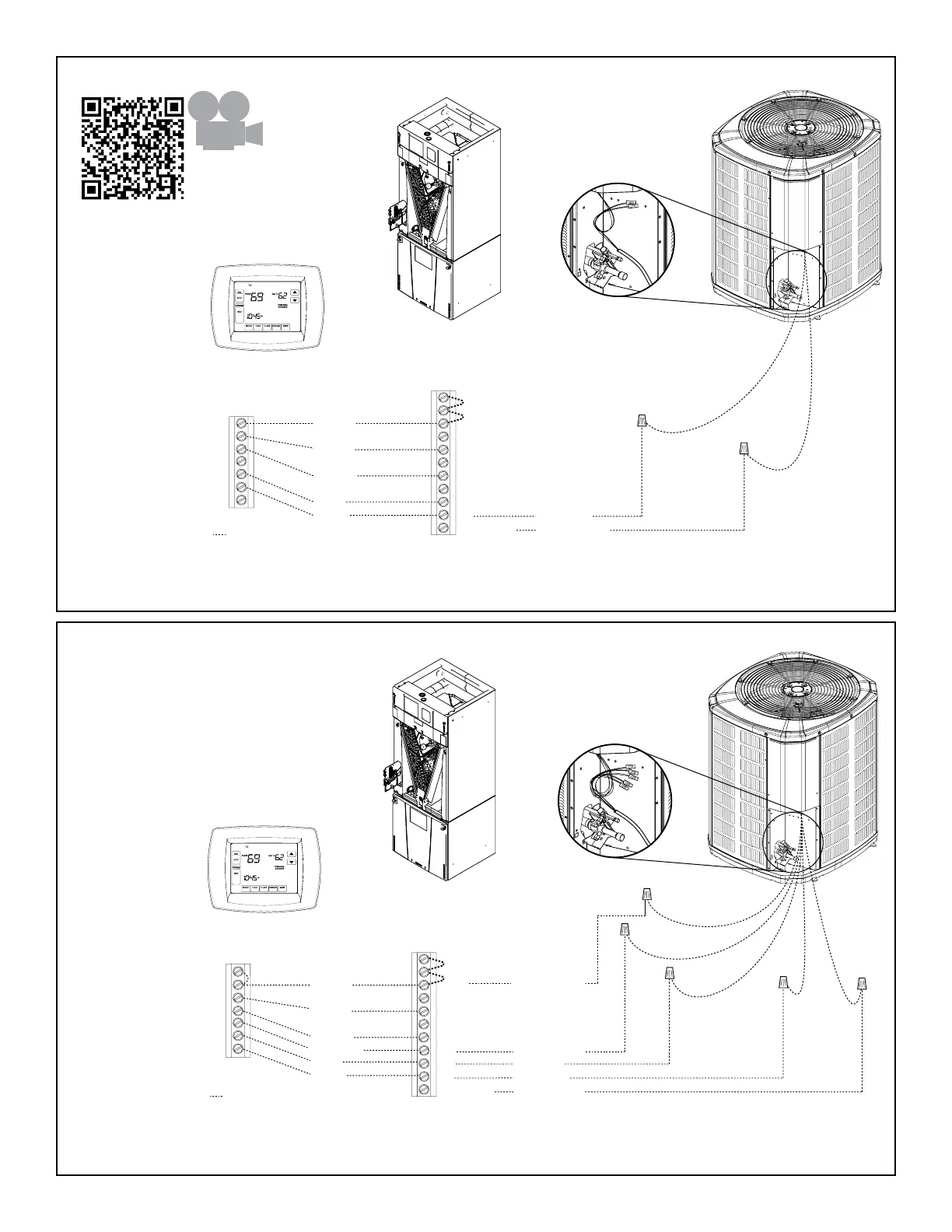

STEP 4 - Make connections per hookup diagrams.
Single Stage HP
• * For multiple stages of electric heat, jumper W1, W2, and W3 together if comfort control has only one stage of heat.
• YI and YO connections must be made as shown for freeze protection and internally mounted condensate overflow circuits to work properly.
• Internally mounted condensate switch is optional and must be ordered separately.
• If 3rd party condensate overflow switches are installed, they should be wired between Y of the thermostat and YI of the Airflow control.
• * For multiple stages of electric heat, jumper W1, W2, and W3 together if comfort control has only one stage of heat.
• YI and YO connections must be made as shown for freeze protection and internally mounted condensate overflow circuits to work properly.
• Internally mounted condensate switch is optional and must be ordered separately.
• If 3rd party condensate overflow switches are installed, they should be wired between Y of the thermostat and YI of the Airflow control.
Scan to see a
video on Field
Wiring the TAM7.
Single Stage Cooling
