Trane TCONT602AF22MA Installation Instructions

Done Next
9
8
9
10
12
13
14
15
16
27
28
31
Emergency heat
cycle rate
(CPH)
Compressor cycle
rate (CPH)
Second stage
compressor cycle
rate
(CPH)
System setting
adjustment
Adaptive Intelli-
gent Recovery
™
Temperature
display
Compressor
protection
Schedule format
Heat temperature
range stops
Cool temperature
range stops
Dehumidification
Control
9 For electric emergency heat
1 For steam or gravity systems
3 For hot water systems & furnaces of over 90% efficiency
5 For gas or oil furnaces of less than 90% efficiency
[Other cycle rate options: 2, 4, 6, 7, 8, 10, 11 or 12 CPH]
3 Recommended for most compressors
[Other cycle rate options: 1, 2, 4, 5 or 6 CPH]
3 Recommended for most compressors
[Other cycle rate options: 1, 2, 4, 5 or 6 CPH]
0 Manual changeover (Heat/Cool/Off)
1 Auto changeover (Heat/Cool/Auto/Off) **See page 11
2 Auto changeover only (Auto) **See page 11
1 On **See page 11
0 Off
0 Fahrenheit
1 Celsius
5 Five-minute compressor off time **See page 11
[Other options: 0, 1, 2, 3 or 4-minute off time]
0 5/2 (programmable weekdays and weekends)
1 5/1/1 (weekdays, Saturday & Sunday programmable)
90 Highest heating temperature setting
40-89
Heating temper
ature r
ange (increments of 1°F, or 0.5°C)
60 Lowest cooling temperature setting
61-99 Cooling temperature range (increments of 1°F, or 0.5°C)
1 Cooling Droop
2
Cooling Droop with Comf
or
t-R
TM
(15 seconds F
an Dela
y)
3
Cooling Droop with Comf
or
t-R
TM
(30 seconds F
an Dela
y)
0 None
Setup Function Settings & Options

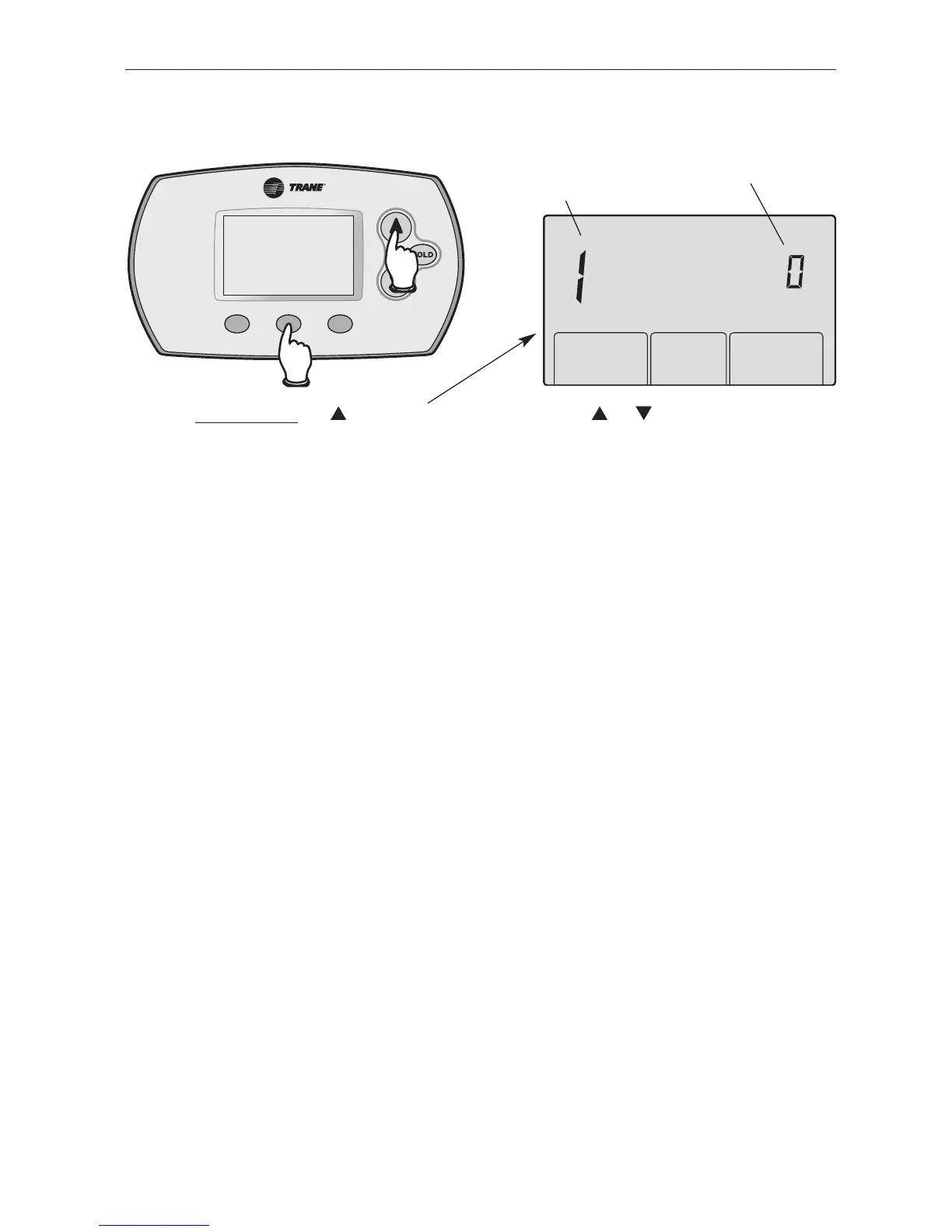

To begin, press and hold the and FAN
buttons until the display changes
Function
number
Press or to change settings
Press
NEXT to advance to next function
Press DONE to exit and save settings
Setting
Installer setup
Follow the procedure below to configure the Comfort Control to match the
installed heating/cooling system, and customize feature operation as desired.

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
