Trane TCONT602AF22MA Installation Instructions

4
Wiring
1 Loosen screw terminals, insert
wires into terminal block, then
re-tighten screws.
2 Push excess wire back into the
wall opening. Keep wires in shaded
area as shown at left.
3 Plug the wall opening with non-
flammable insulation to prevent
drafts from affecting Comfort
Control operation.
Heat/Cool
Heat Pump
NOTES
R & Rc terminals
In single-transformer system, leave metal
jumper in place between R & Rc. Remo
ve
metal jumper if two-transformer system.
B terminal
B is the common wire terminal.
W (O) terminal
If Comfort Control is configured for a heat
pump in the Installer Setup, changeover valve
is configured for cool (“O” factory setting).
F terminal (Output)
Heat pump reset. F ter
minal po
wered continu-
ously when Comfort Control is set to Em Heat.
Configure Comfort Control for 2 heat/1 cool
heat pump in the Installer Setup
.
Wire specifications
Use 18- to 22-gauge Comfor
t Control wire
.
Shielded cable is not required.

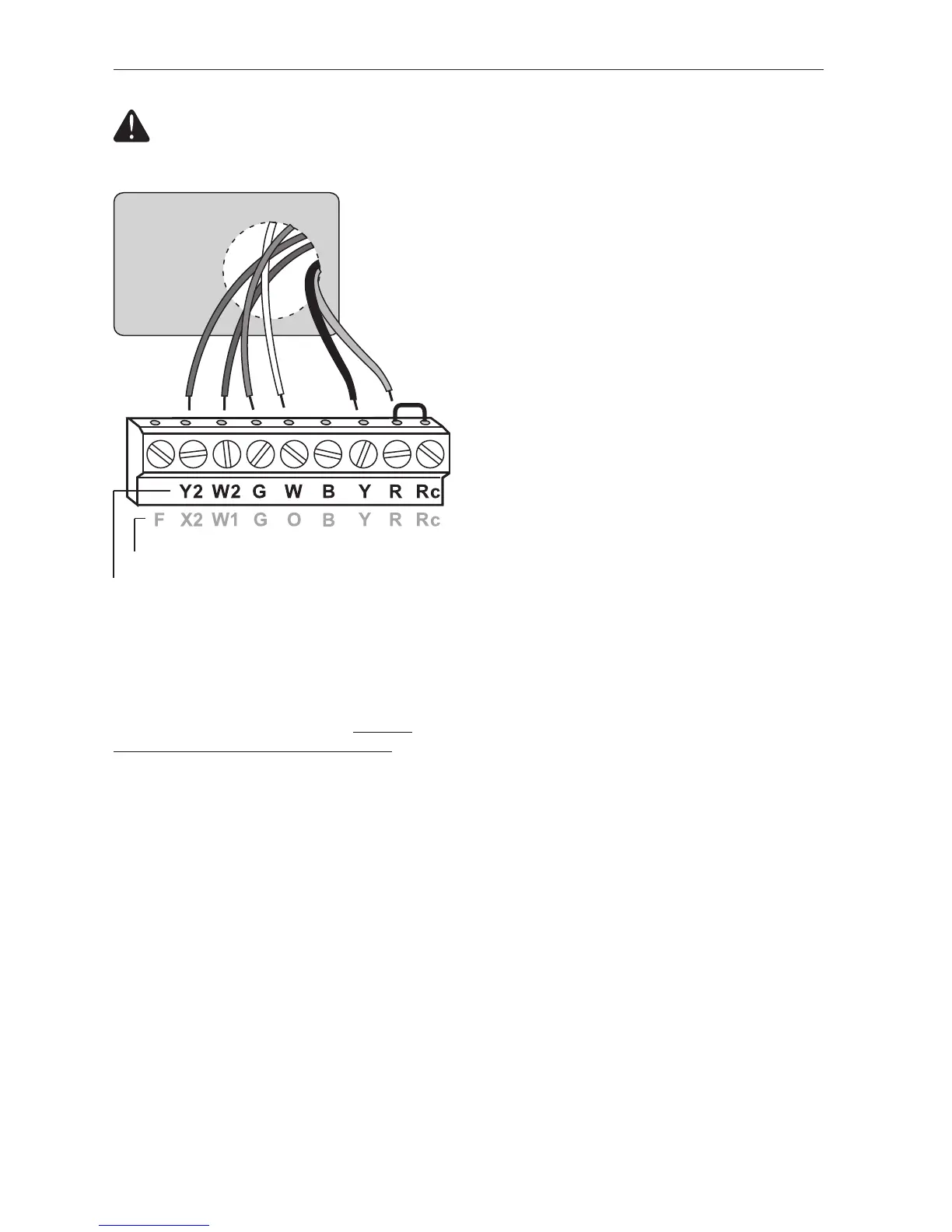

Keep wires in this
shaded area
CAUTION: ELECTRICAL HAZARD. Can cause electrical shock or equipment damage.
Disconnect power before wiring.
Wiring
Terminal Designations
Conventional Terminal Letters:
Y2
2nd stage compressor contactor
W2 2nd stage heat relay
G Fan relay
W 1st stage heat relay
B Common wire from secondary side of
cooling system transformer
Y 1st stage compressor contactor
R Heating power. Connect to secondary
side of heating system transformer.
Rc Cooling power. Connect to secondary
side of cooling system transformer.
Heat Pump Terminal Letters:
F Heat pump reset. F terminal powered
continuously when System is set to
Em Heat.
X2 Emergency heat relay
W1 Auxiliary heat relay
G Fan relay
O Changeover valve for heat pumps
B Common wire from secondary side of
cooling system transformer.
Y Compressor contactor
R Heating po
w
er
. Connect to secondary
side of heating system transformer.
Rc Cooling power. Connect to secondary
side of cooling system transformer.

Trane TCONT602AF22MA Specifications

Temperature Ranges

heat temperature range	40° to 90°F (4.5° to 32°C)
cool temperature range	60° to 99°F (16° to 37°C)
operating ambient temperature	32° to 120°F (0° to 48.9°C)

Humidity

operating relative humidity	5% to 90% (non-condensing)

Electrical Ratings

W (O) heating voltage	20-30 Vac
W (O) heating current	0.02-1.0 A
W1 W2 heating voltage	20-30 Vac
W1 W2 heating current	0.02-0.5 A
Y cooling voltage	20-30 Vac
Y cooling current	0.02-1.0 A
Y2 cooling voltage	20-30 Vac
Y2 cooling current	0.02-1.0 A
G fan voltage	20-30 Vac
G fan current	0.02-0.5 A
X2 emergency heat voltage	20-30 Vac
X2 emergency heat current	0.02-1.0 A
F heat pump reset voltage	20-30 Vac
F heat pump reset current	0.02-0.5 A

Weight and Dimensions

height	3-9/16” (91 mm)
width	5-13/16” (147 mm)
depth	1-1/2” (38 mm)
