Trane TCONT824 User Manual

Installation Guide
10 18-HD72D1-6

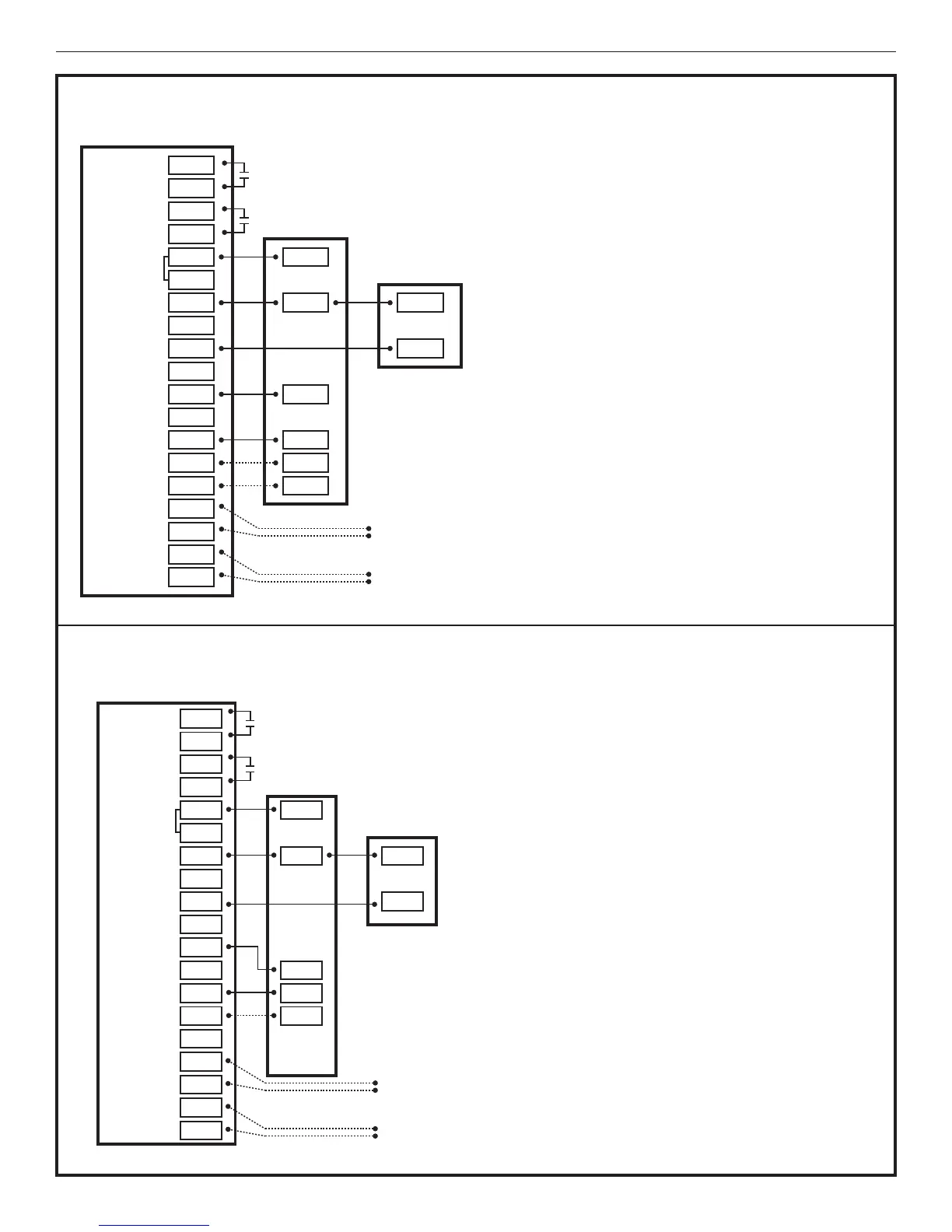

Diagram 8 - 1 Stage Cooling w/TEM3 Model Air Handler
Diagram 7 - 1 Stage Cooling w/GAT2 & GAM2 Model Air Handler
AUX 1
AUX 2
24VAC HOT
COMMON
SOV
COOLING
FA N
HEATING
ODT
RS
AUX1
AUX1
AUX2
AUX2
RC
RH
B/C
O
Y1
Y2
G
BK
W1
W2
W3
W2
W3
ODT
ODT
RS1
RS1
R
B
G
W1
B
Y
Optional
Outdoor
Sensor*
Optional
Remote
Sensor*
*Caution: Do not run Outdoor/Remote
sensor wires in the same bundle
with HVAC wires. Also, keep away
from high voltage wiring to avoid
interference.
824 COMFORT CONTROL
7- 1 STAGE COOLING W/GAT2 & GAM2 MODEL AIR HANDLER
INDOOR UNIT
OUTDOOR UNIT
AUX 1
AUX 2
24VAC HOT
COMMON
SOV
COOLING
FA N
HEATING
ODT
RS
AUX1
AUX1
AUX2
AUX2
RC
RH
B/C
O
Y1
Y2
G
BK
W1
W2
W3
ODT
ODT
RS1
RS1
R
B
G
W1
W2
B
Y
Optional
Outdoor
Sensor*
Optional
Remote
Sensor*
*Caution: Do not run Outdoor/Remote
sensor wires in the same bundle
with HVAC wires. Also, keep away
from high voltage wiring to avoid
interference.
824 COMFORT CONTROL
8- 1 STAGE COOLING W/TEM3 MODEL AIR HANDLER
INDOOR UNIT
OUTDOOR UNIT
