Trane TCONT824 User Manual

824 Programmable Wi-Fi Comfort Control
18-HD72D1-6 13

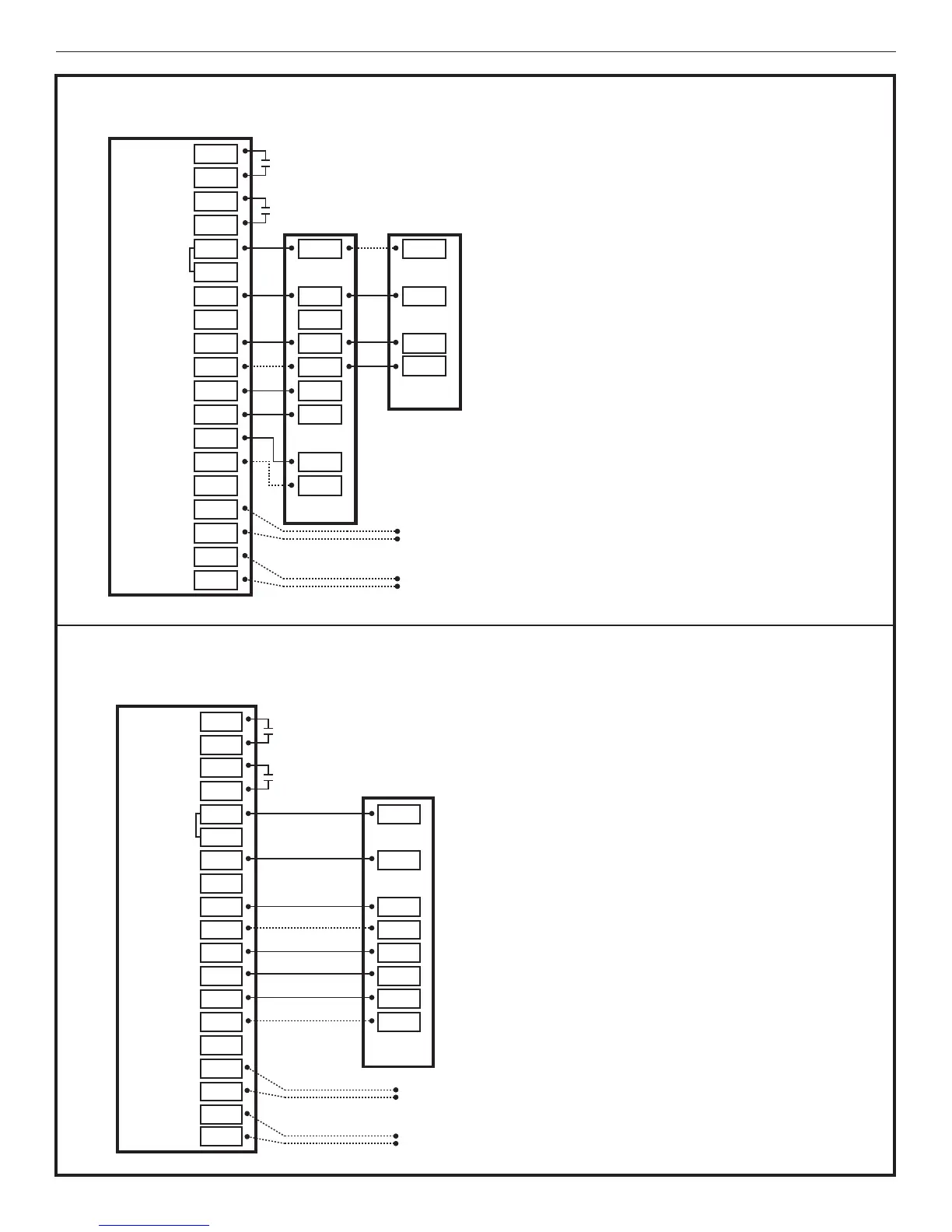

Diagram 13 - 1 or 2 Stage Cooling with S9V2 Furnace
Diagram 14 - Package 1 or 2 Stage Heat/Cool w/Variable Speed Blower
AUX 1
AUX 2
24VAC HOT
COMMON
SOV
COOLING
FA N
HEATING
ODT
RS
AUX1
AUX1
AUX2
AUX2
RC
RH
B/C
O
Y1 Y/Y1
Y2Y2
G
BK
W1
W2
W3
ODT
ODT
RS1
RS1
R
B
BK
G
W1
W2/X2
Optional
Outdoor
Sensor*
Optional
Remote
Sensor*
*Caution: Do not run Outdoor/Remote
sensor wires in the same bundle
with HVAC wires. Also, keep away
from high voltage wiring to avoid
interference.
NOTES:
1. Remove “R” to “BK” jumper and clip all “Y”
connections at the integrated motor control board
(ICMC) to enable pulse width control of the variable
speed indoor blower. Ensure clipped wires are
capped and taped off.
824 COMFORT CONTROL
14- PACKAGE 1 OR 2 STAGE HEAT/COOL w/VARIABLE SPEED BLOWER
PACKAGE UNIT
1
13-1 OR 2 STAGE COOLING w/S9V2 FURNACE
NOTES:
1. Cut and remove the BK jumper at the indoor unit
2. Remove the factory Y1-O jumper on the indoor unit
for heat pump systems for proper LED readout
3. Y1 and Y2 wiring from the 824 must connect to Y1
and Y2 of the indoor unit IFC for proper air flow and
LED read out
4. R connection at outdoor unit is required only for two
compressor/two stage units
AUX 1
AUX 2
24VAC HOT
COMMON
SOV
COOLING
FA N
HEATING
ODT
RS
AUX1
AUX1
AUX2
AUX2
RC
RH
B/C
O
Y1
Y2
Y1/Ylo
Y/Y2
G
BK
W1
W2
W3
ODT
ODT
RS1
RS1
R R
B/C
O
BK
G
W1
W2
B
Y1
Y2
Optional
Outdoor
Sensor*
Optional
Remote
Sensor*
*Caution: Do not run Outdoor/Remote
sensor wires in the same bundle
with HVAC wires. Also, keep away
from high voltage wiring to avoid
interference.
824 COMFORT CONTROL
INDOOR UNIT OUTDOOR UNIT
2
4
1
3
3

Trane TCONT824 Specifications

General

Brand	Trane
Model	TCONT824
Category	Thermostat
Language	English
