Operating Procedures
32 ARTC-SVX002A-EN
requires that earlier records appear on the list first. For all
other columns, alphabetical sorting applies.
Duration
Allows the selection of the time period for which the alarm
history is displayed. Once the selection is made from the
drop-down menu, pressing the REFRESH button updates
the list and the ‘From’ and ‘To’ timestamps will update
accordingly.
Alarm Time
This is the time stamp that is displayed when the alarm
state changes.
Event Type
This is the alarm event that is logged on the alarm record.
Only active alarms (Event Type = Triggered) are recorded.
Alarm State
This is the same as ‘State’ for active alarms. Only two
alarms states apply to alarm history screen:
• TRIGGERED / NOT ACKNOWLEDGED
• TRIGGERED / ACKNOWLEDGED
Tag Value
This is the same as Source Value for active alarms.
Modules Overview Screens
Each module controlled by the microprocessor controller
has its own module screen within which the operator can
monitor and maintain conditions affecting that module.
Primary module access is made through the system
control screen containing multiple controls and indicators:
On the home screen, pressing the M1 button displays the
Module #1 (client module) overview 1 screen.
The overview menu is comprised of two screens:
Overview Module (Client and Server) and Overview
Circuits. Use the left and right scrolling buttons to scroll
through the overview screens.

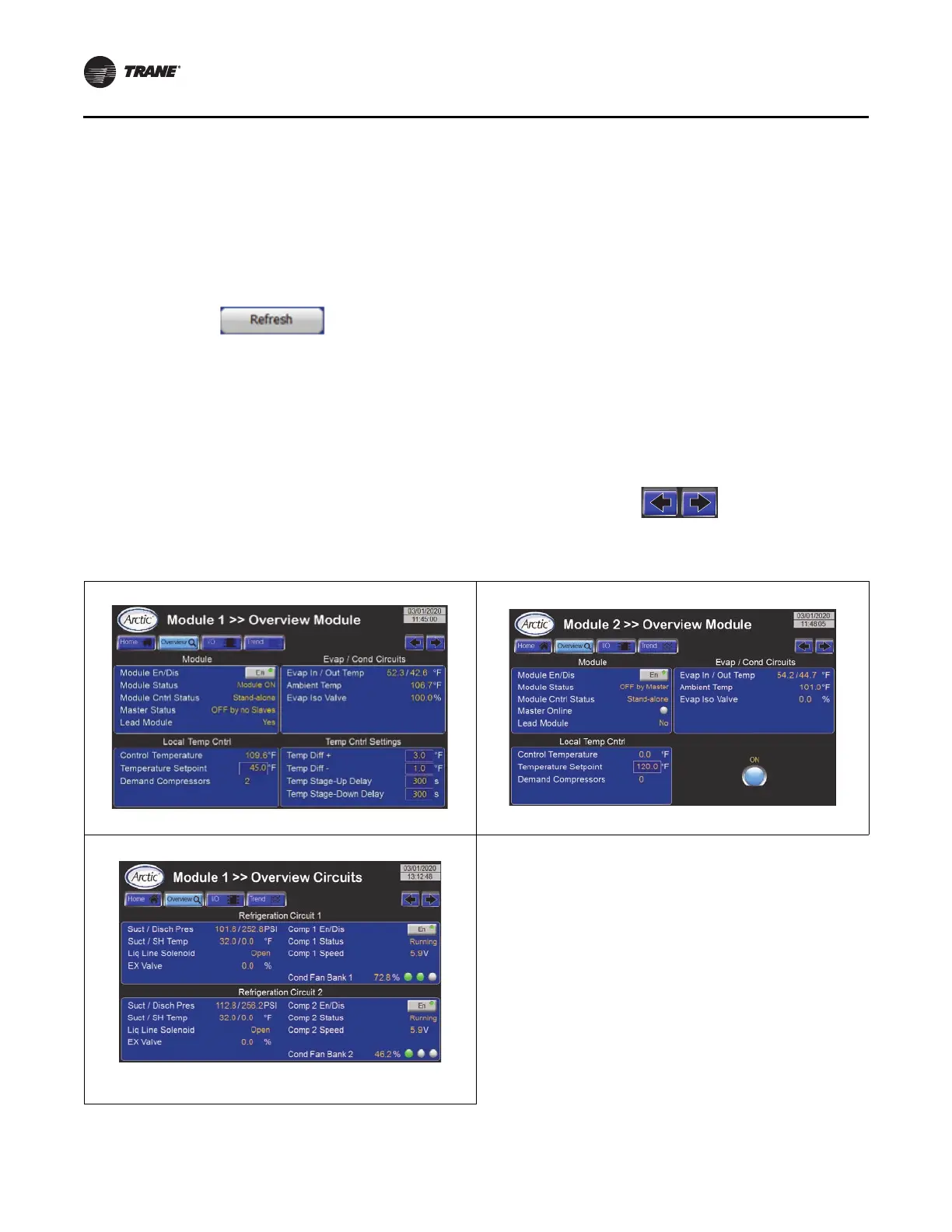

Table 4. The overview screens
Client Overview Module Screen
Server Overview Module Screen
Client/Server Overview Circuit Screen
To Next Page
