Logical Flow Diagrams
74 ARTC-SVX002A-EN
High Voltage Logical Flow
Manhattan™ Gen II Water-Cooled Modular Chiller models
are available in a range of voltage/amperage/phase
configurations to meet the demands of a worldwide chiller
market. The high voltage configuration for a chiller
module is listed on each module’s name plate. The chiller
is designed to operate with high voltage power supplied to
the unit at all times. See below figure.

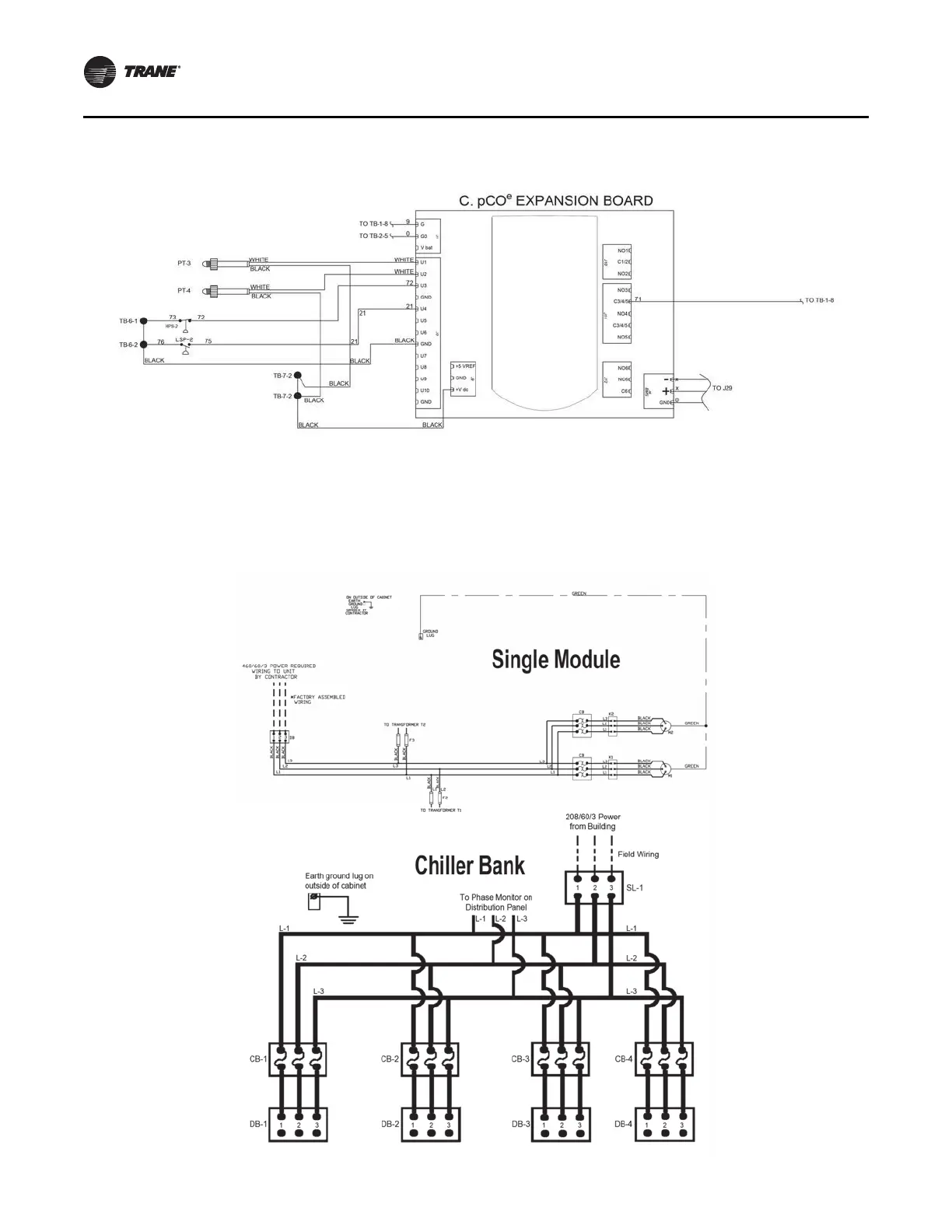

Figure 27. Expansion board wiring
Figure 28. High voltage logical flow
To Next Page
