Trane UniTrane User Manual

Dimensions and Weights
26 UNT-SVX07J-EN
Model F Vertical Wall Hung Cabinet
Force Flo Units Only

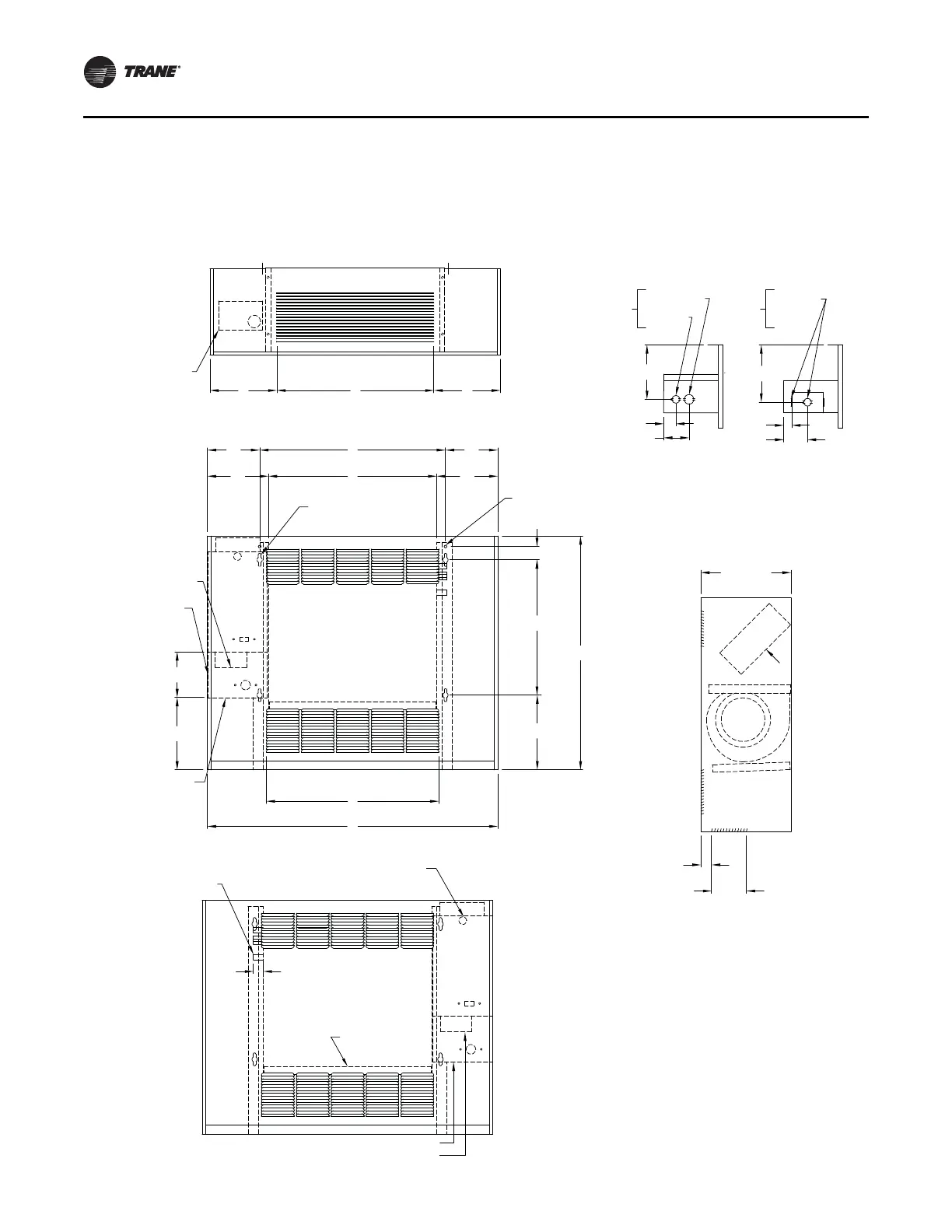

Figure 10. Model F Vertical Wall Hung Cabinet (Force Flo only)
Top Vie w
Bottom View
Front View
RH Piping
Side View
Front View
LH Piping
Unit control
top
Top outlet quadrifuser
or bar grille
C
D
C
Detail A Detail B
Power
wiring
bottom
only
1 3/32 in. KO
7/8 in. KO
Power
wiring
bottom
and side
7/8 in. KO
Back
Front
Back
Front
6 1/4 in.
1 3/8 in.
2 7/8 in.
6 1/2 in.
1 in.
2 5/8 in.
Electrical heat only Non electric heat only
10 5/16 in.
Air
flow
1 1/4 in.
4 in.
Bottom inlet
louvers
6 in. B
6 in.
7 in.
E
7 in.
(4) 5/8 in. dia Keyslot
hanger holes
(2) 5/8 in.
Bolt holes
Front outlet louvers
(optional)
Front inlet louvers
Junction box
(non EH only)
Auxiliary control box
(electric heat only)
5 1/4 in.
Control
box
8 5/16 in.
See Detail A and B
for Field power
connections
A
F
Bottom and front
inlet and outlet louvers
8 9/16 in.
26 13/16 in.
15 1/2 in.
1 5/8 in.
Coil connections
7/8 in. KO
Control wiring
Control
box
1 1/8 in.
Filters
Auxiliary box (EH only)
Junction Box (non EH only)
