Trane UniTrane User Manual

Dimensions and Weights
36 UNT-SVX07J-EN
Model M Inverted Vertical Cabinet
Force-Flo Unit Only

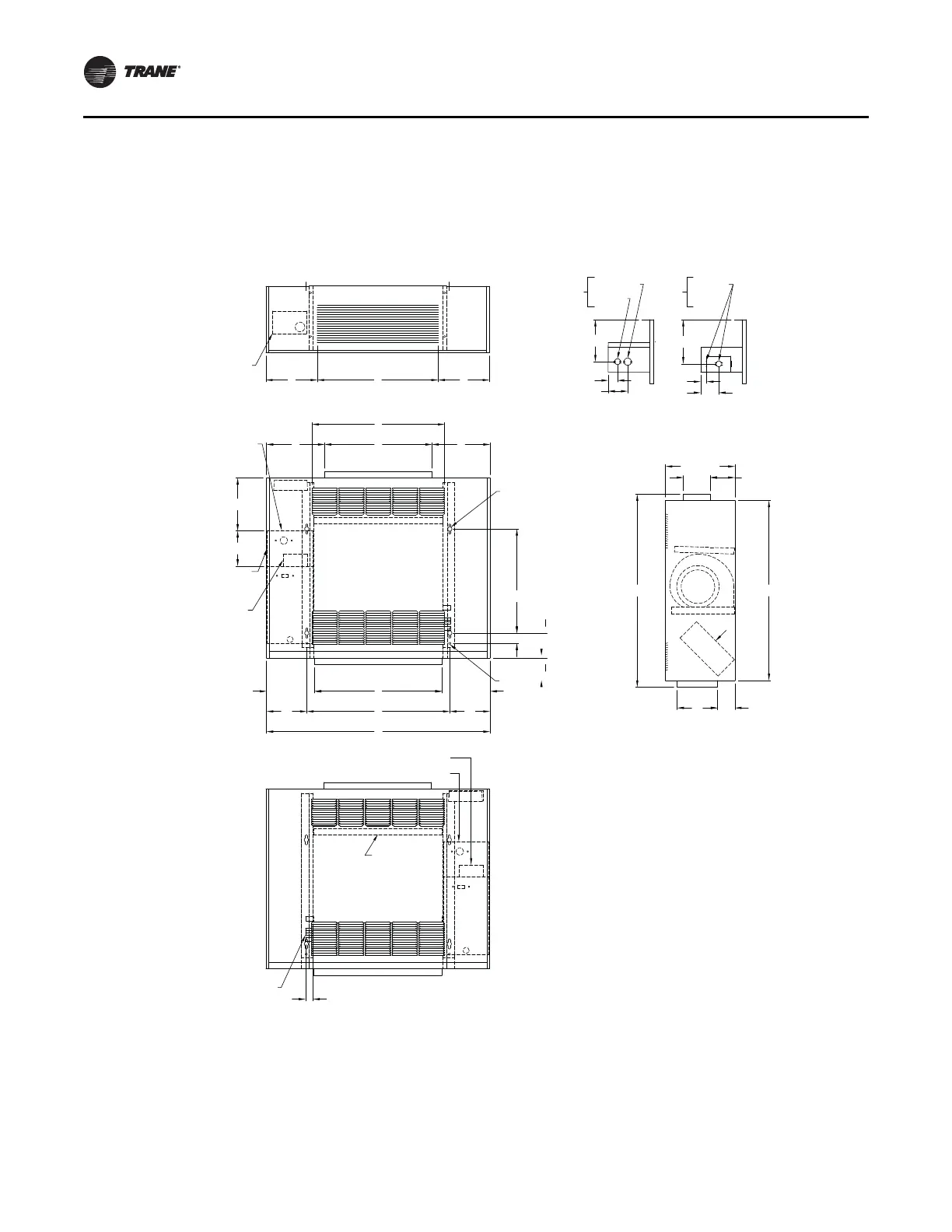

Figure 15. Model M inverted vertical cabinet (Force-Flo unit only)
Top V ie w
Side View
Front View
LH Piping
Front View
RH Piping
Unit control
top
Top outlet quadrifuser
or bar grille
C
D
C
Bottom View
Power
wiring
bottom
only
Power
wiring
bottom
and side
7/8 in. KO
BackBack
1 3/32 in. KO
7/8 in. KO
6 1/4 in.
1 3/8 in.
2 7/8 in.
6 1/2 in.
1 in.
2 5/8 in.
Front
Detail A Detail B
Electric heat only Non electric heat only
Front
Inlet and outlet
options
Top inlet
duct collar
3 11/16 in.
26 13/16 in.
2 5/8 in.
Bottom inlet
duct collar
6 in.
28 3/4 in.
Air
flow
10 5/16 in.
4 in.
3 11/16 in.
Front inlet and
outlet louvers
F
GHG
Top inlet duct collar
(optional)
(4) 5/8 in. dia Keyslot
hanger holes
See Detail A and B
for Field power connections
7 5/16 in.
5 1/4 in.
Auxiliary control box
(electric heat only)
Junction box
(non electric heat only)
Control
box
7 1/8 in.
6 in.
B
E
7 1/8 in.
6 in.
Bottom outlet
duct collar (optional)
(2) 5/8 in. bolt holes
1 5/8 in.
15 1/2 in.
A
Junction box (Non EH only)
Auxiliary box (EH only)
Filters
Control
box
1 1/8 in.
Coil connections
