VAV-SVX01C-EN 19
UCM 4.2 Installation and Wiring

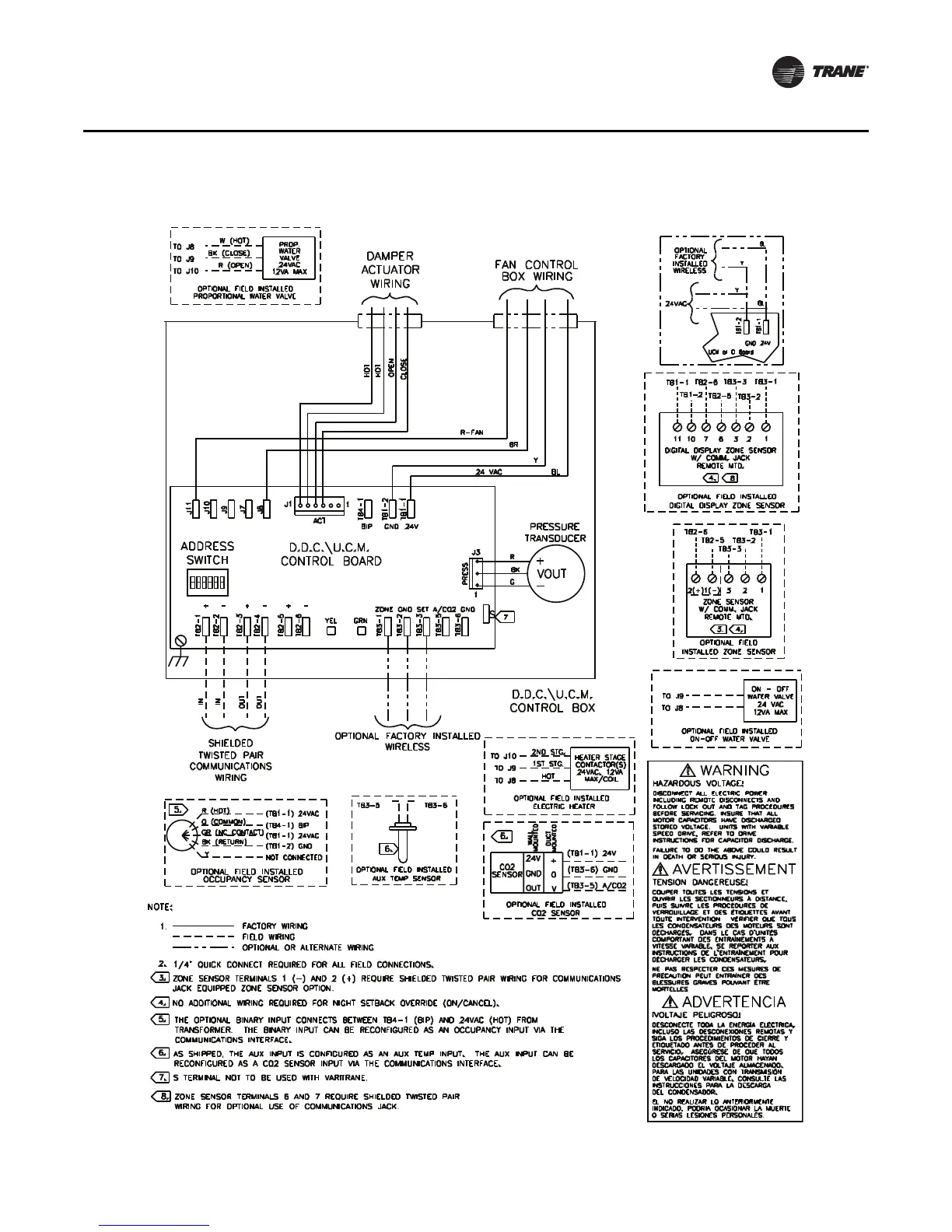

Figure 4. Wiring diagram for fan-powered units with field installed reheat
