Trane WSC060E - Typical Field Wiring Diagrams for Optional Controls

36 RT-SVX23D-EN
Pre-Start

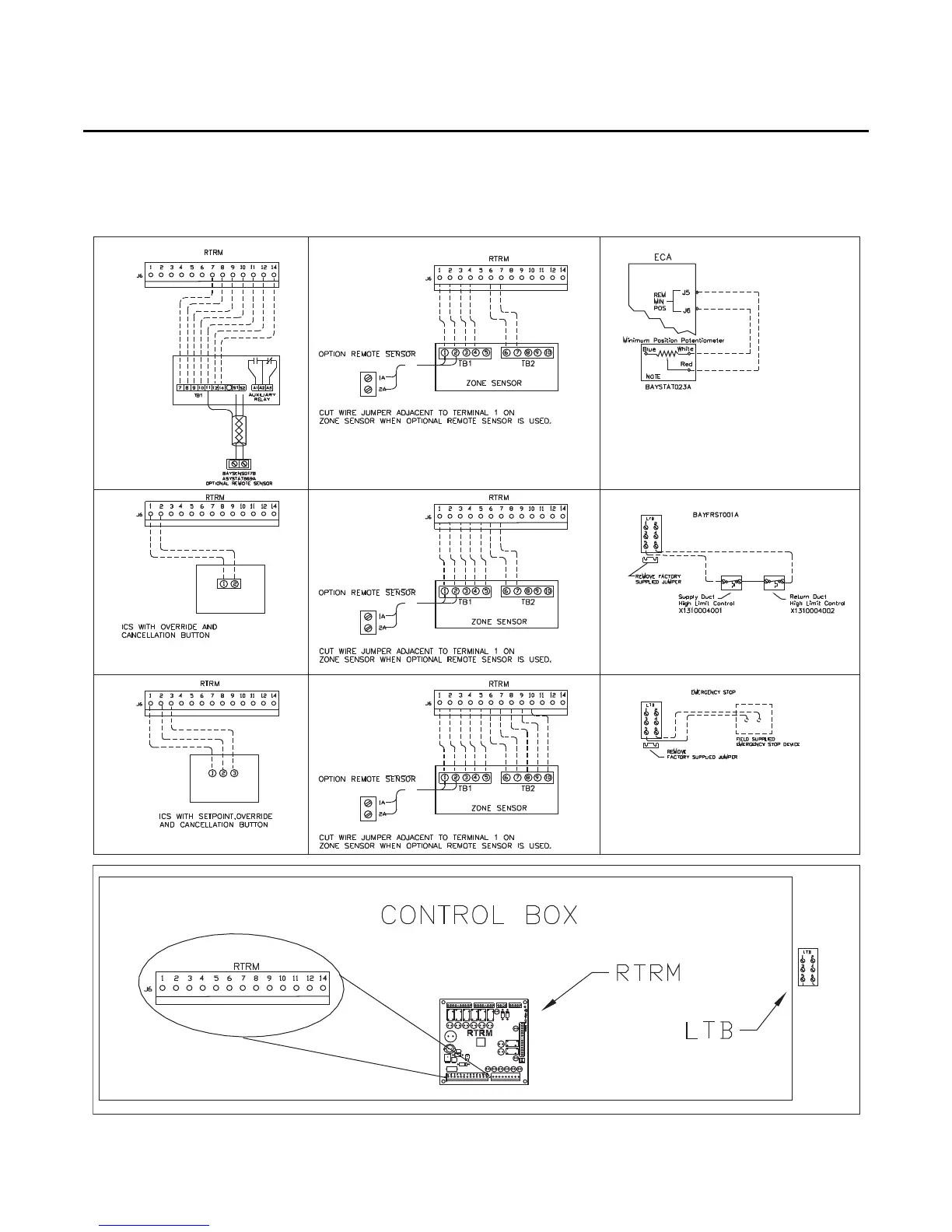

Figure 28. Typical field wiring diagrams for optional controls
BAYSENS119*
ASYSTAT777*
Zone Sensor
BAYSENS077*
ASYSTAT111*
BAYSENS107*
BAYSENS073*
Zone Sensor
BAYSENS077*
ASYSTAT111*
BAYSENS109*
BAYSENS074*
Zone Sensor
BAYSENS119*
ASYSTAT777*
BAYSENS109*
