BAS-SVX04C-EN • Wireless Sensors 15
Installation
Table 1. Wiring harness: Wire identification
Wire label Color Function
HEATING SET Brown Space temperature heating setpoint
(WDS only)
FAN SYSTEM Green Fan and system control (WDS only)
SETPOINT Red Space temperature setpoint
(WDS and WZS only)
ZONE White Zone temperature
GND-SIGNAL Black Ground for setpoint and zone signal
24VAC/DC Blue 24 Vac/Vdc power
GND-POWER Yellow Ground for 24 Vac/dc

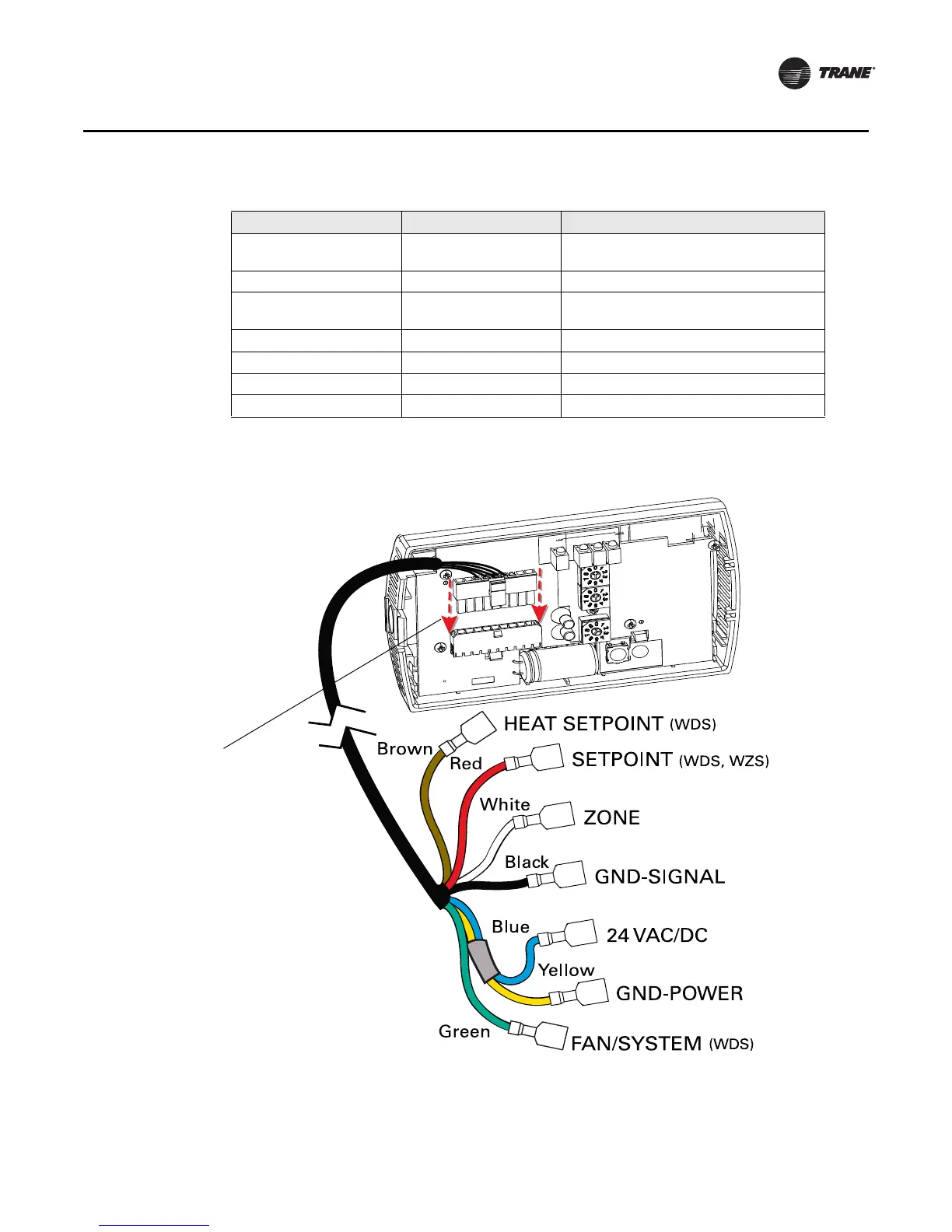

Figure 2. Wiring harness
Connect wiring
harness to
receiver
