BAS-SVX17B-EN 13
Configuration
The programmable zone sensor is configured by selecting options to determine system and
functional operations.
The sensor can be configured to operate with one of the following units:
• A constant-volume (CV) unit
• A heat pump (HP) unit
• A variable-air-volume (VAV) unit
The functional options that are available depend on whether the sensor is configured for a CV, an
HP, or a VAV unit.
To configure the sensor:
1. Press and hold the Test/Configuration button for 2 seconds (Figure 4). The configuration screen
appears (see Figure 3, p. 12).
2. Use the keypad on the sensor cover to select the system and functional options. See Tab le 3 ,
p. 14 for sensors used with CV or HP units; see Table 4, p. 16, for sensors used with VAV units.
• Press , , or to change the option number.
• Press or to change the option value.
3. To confirm the selection and return the display to the home screen, either:
• Press the Test/Configuration button, or
• Press and hold for 2 seconds
Note: The sensor will revert to the home screen if no buttons are pressed for 90 seconds.

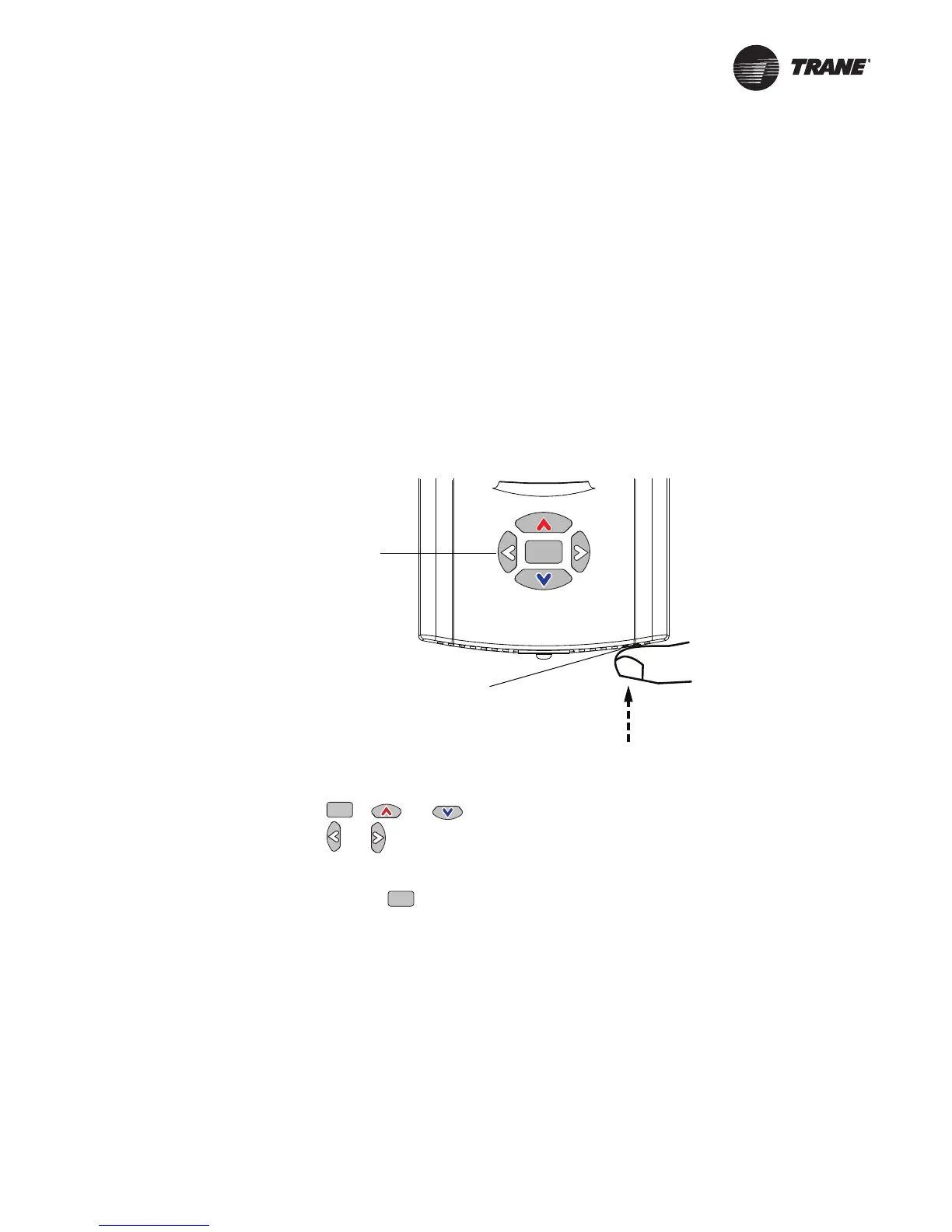

Figure 4. Pressing the Test/Configuration button
Test/Configuration button
Keypad
