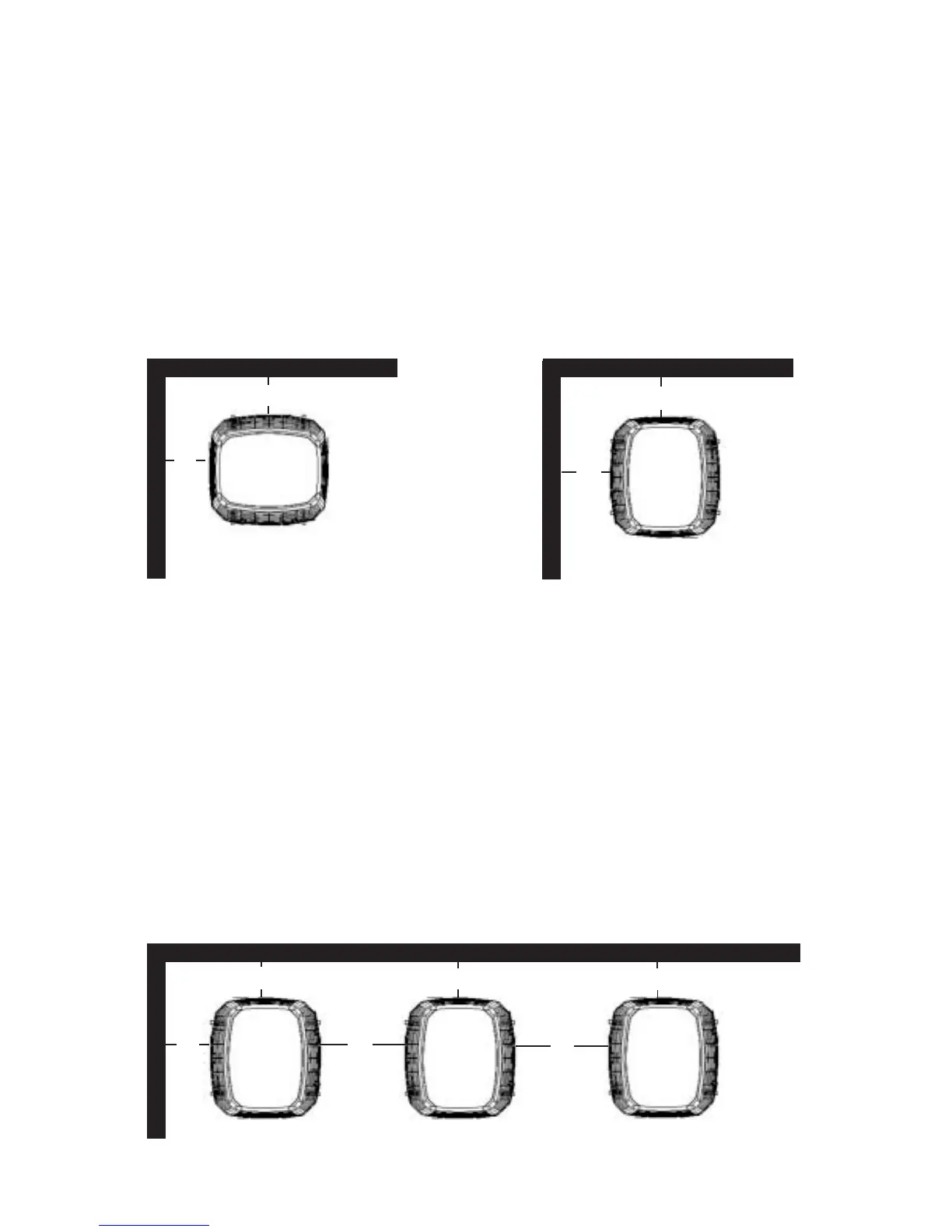

2. Single XL19i condensing unit / heat pump in a corner with unrestricted top clearance
A) For locations where the design ambient temperature is below 105F:
1) 1.5 feet clearance from both walls.
2) Other two sides left unrestricted
B) For locations where the design ambient temperature exceeds 105F:
1) 2.0 feet clearance from both walls.
2) Other two sides left unrestricted.
C) If unit is located in such a way that service panel is facing the wall
1) NEC requires minimum 3 feet between the unit and the wall
a) This space may be increased to 3 1/2 feet. Consult the National Electric Code for more
information regarding minimum clearances for working spaces.
3. Installation of two or more XL19i units where two adjacent walls form a corner.
A) For locations where the design ambient temperature is below 105F:
1) Corner unit shall have1.5 feet clearance from both walls.
2) 3.0 feet clearance in between units. ( if service panels face each other, this clearance may be
increased to 4.0 feet per NEC)
3) 2.0 feet clearance from other side to any obstruction
B) For locations where the design ambient temperature exceeds 105F:
1) 2.0 feet clearance from both walls.
2) 3.0 feet clearance in between units. ( if service panels face each other, this clearance may be
increased to 4 feet per NEC)
3) 2.0 feet clearance from other side to any obstruction.
C) If unit’s are located in such a way that the service panels are facing the wall
1) NEC requires minimum 3.0 feet between the unit and the wall
a) This space may be increased to 3 1/2 feet. Consult the most current edition of the National
Electric Code for more information regarding minimum clearances for working spaces.
SERVICE ACCESS PANEL SIDE
Service Panel
Service Panel
-1.5’-
min
-1.5’-
min
-1.5’-
min
-1.5’-
min
-1.5’-
min
-1.5’-
min
-1.5’-
min
-1.5’-
min
-3.0’-
min
-3.0’-
min
