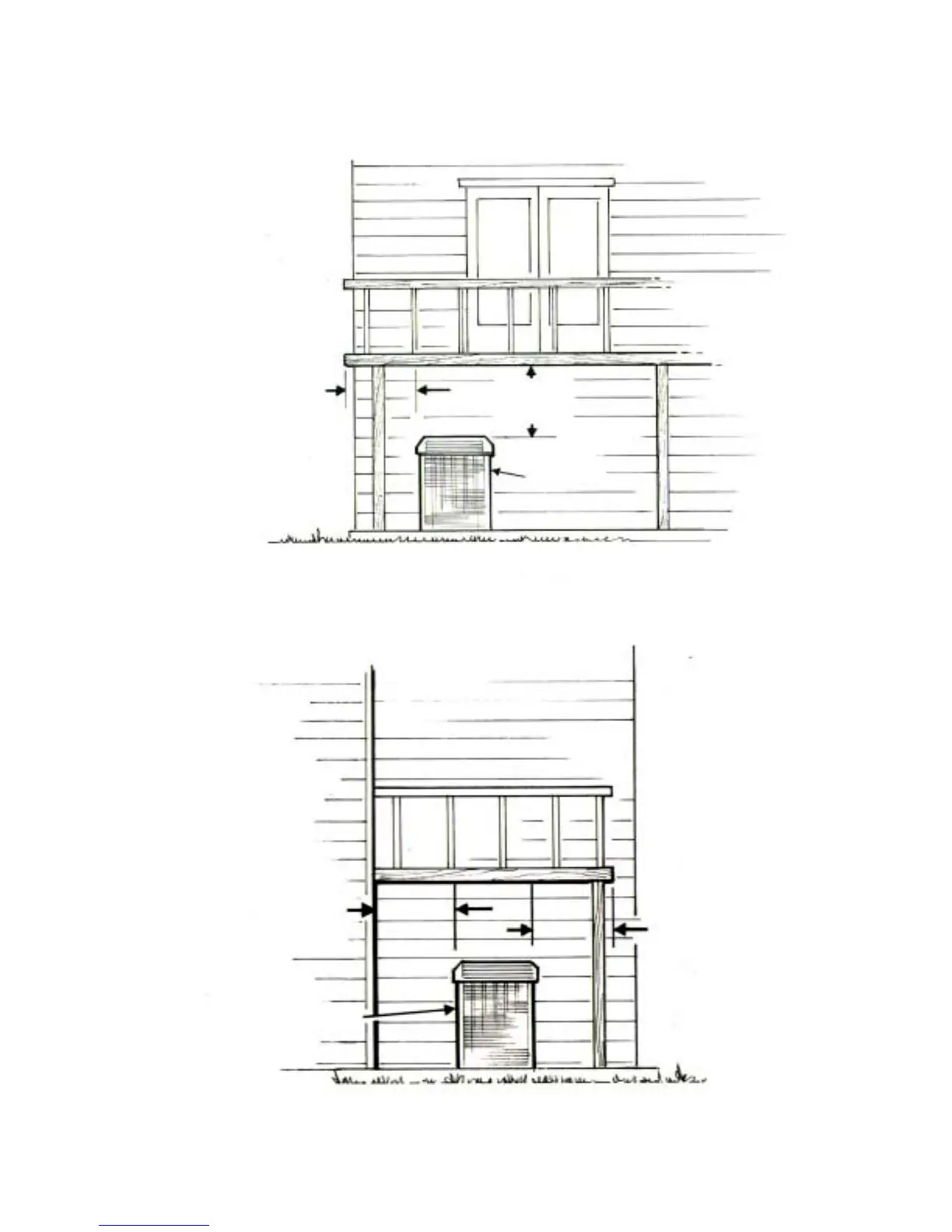

Trane XL19i-APG02-EN - Front View; Side View

3’ Minimum clearance from 2 sides of unit to walls
2’ feet maximum
overhang from
side of unit to deck.
3’ minimum
from top of
unit to deck
Outdoor Unit
SIDE VIEW
Front View
3’ minimum from
side of unit to
wall of home
Outdoor Unit
2’ maximum
deck overhang
to side of unit
Illustrations provided to designate required clearances
Pg. 9
