20 18-HD66D1-4
EXAMPLE:

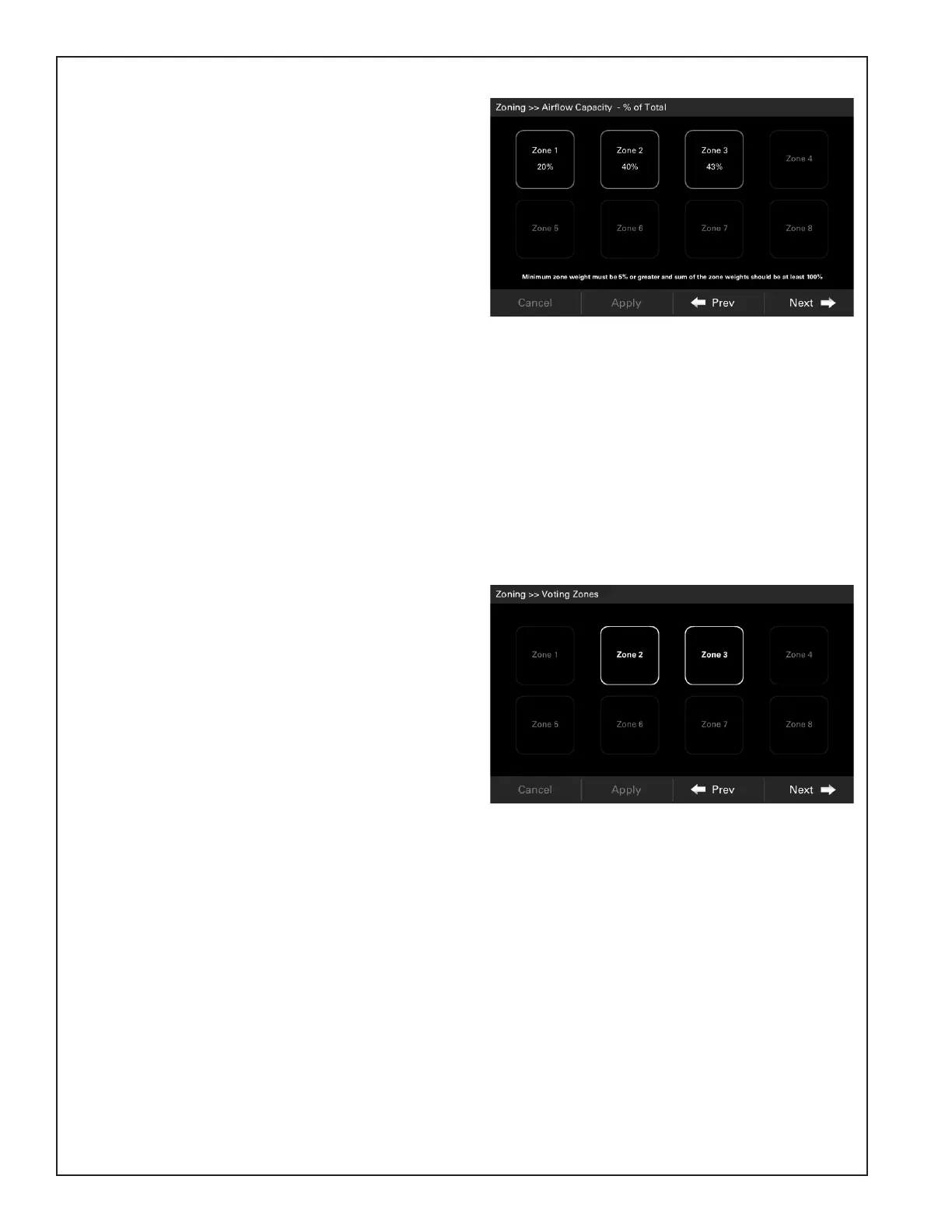

A home has a 5-ton single stage AC system with
3 zones. Zone #1 is a 6 inch duct that feeds
the laundry room. Since this zone is sized less
than 25%, the zone is forced to non-voting and
should not be allowed to energize the equipment.
However, it should be allowed to control the
temperature in the zone when another voting zone
brings on the equipment.
All zones less than 25% cannot be a voting zone.
Press “Yes” to accept or press “No” to change the
size of the zone.
Zone 1 has been removed as a voting zone since
it was sized less than 25%.
