Section 7. User Interface
****************
ACQUIRING
DATA
****************
ZONING DISABLED
----------------
SEE MAIN CONTROL
FOR DETAILS
SYSTEM STATUS
HEATING STG=NONE
CFM=000%
DSP=0.30
SYSTEM STATUS
CFM=000%
DSP=0.30
SUPPLY AIR=063*
SYSTEM STATUS
DSP=0.30
SUPPLY AIR=063*
RETURN AIR=OPN
SYSTEM STATUS
SUPPLY AIR=063*
RETURN AIR=OPN
DELTA(SA-RA)OPN
SYSTEM STATUS
RETURN AIR=OPN
DELTA(SA-RA)OPN
MIXED AIR=OPN
SYSTEM STATUS
DELTA(SA-RA)OPN
MIXED AIR=OPN
BYPASS=000%
ZONES
[ more menus ]
ZONE STATUS
ZONE=1 SIZE=051%
MODE=OFF
ACTIVE CALL=NO
ZONE STATUS
ZONE=8 SIZE=051%
MODE=OFF
ACTIVE CALL=NO
ZONE STATUS
MODE=OFF
ACTIVE CALL=NO
DAMPER=100%
ZONE STATUS
MODE=OFF
ACTIVE CALL=NO
DAMPER=100%
ZONE STATUS
ACTIVE CALL=NO
DAMPER=100%
RELIEVING=NO
ZONE STATUS
ACTIVE CALL=NO
DAMPER=100%
RELIEVING=NO
INFORMATION
[ more menus ]
SOFTWARE INFO
VERSION=001
BUILD=1234567890
MODEL NUMBER
ZZONEPNLAC52ZAA
SERIAL NUMBER
1000WE0001
8 ZONES

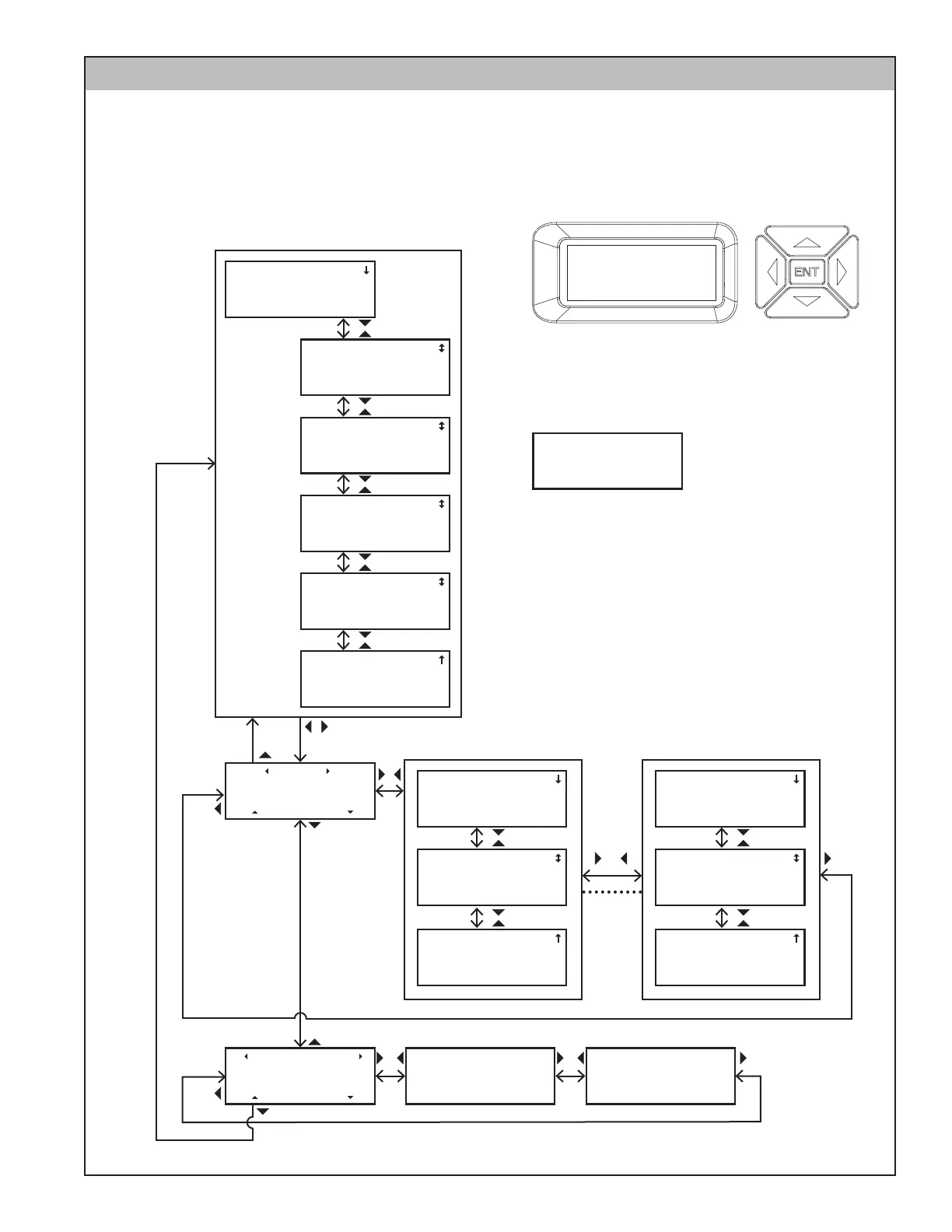

Standard Menu Tree
(Zoning Enabled)
Initial Power Up
Before Zoning Enabled
