7. KEYPAD OPERATION
GENERAL

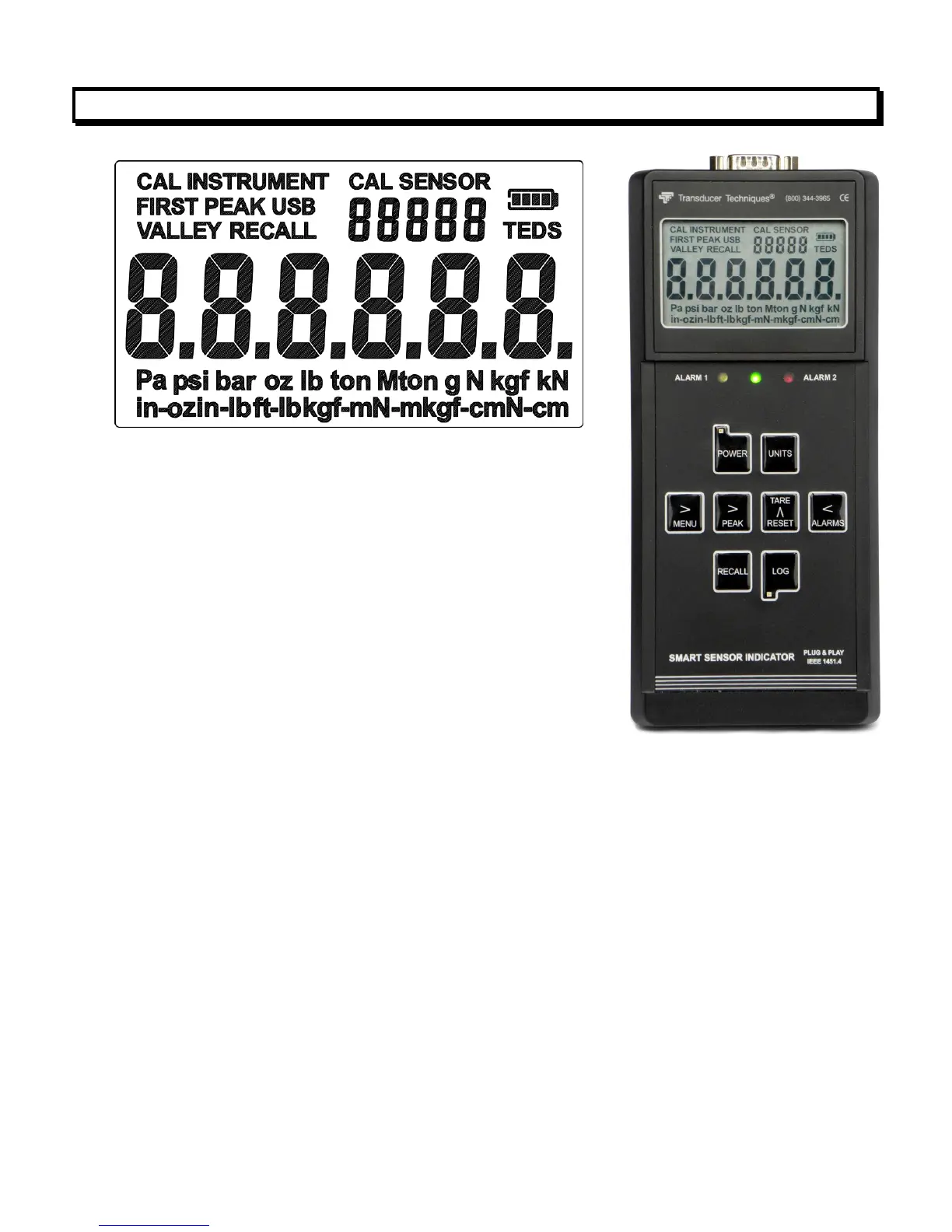

The SSI operator panel consists of an LCD display, an 8-key
membrane keypad, and 5 LED indicator lights, as explained
below.
LCD DISPLAY
8.8.8.8.8.8.
Main reading. This can be the current reading, recalled read-
ing, first peak, peak, or valley, as selected via the keypad.
The numerical reading utilizes 5 digits with leading zero
blanking and a selectable decimal point. The 6
th
left-most
digit is used for special applications, such as setting time and date.
Pa psi bar oz lb ton Mton g N kgf KN
in-oz in-lb ft-lb kgf-m kgf N-m kgf-cm N-cm
Unit of measure associated with the main reading. When changed, readings are automatic-
ally converted within the same family (load, torque or pressure). In TEDS operation, a
default unit of measure is read from EEPROM memory in the TEDS unit at power-up, but
can be changed via the keypad.
CAL INSTRUMENT
Flashing indicates either that the instrument is due for calibration or will be
due in less than 30 days. Steady indicates that the instrument is past due for
calibration. See Section 10, Item 10 for a more detailed explanation.
CAL SENSOR
Flashing indicates either that the sensor is due for calibration or will be due in
less than 30 days. Steady indicates that the sensor is past due for calibra-
tion. See Section 10, Item 10 for a more detailed explanation.
