Maintenance and repair
Replacing the side guide
65
Tubular side guide
Requirements:
Machine has been put out of operation.
Machine has been secured to prevent it from being switched on inadvert-
ently.
Disassemble the
side guide
Complete the following steps:

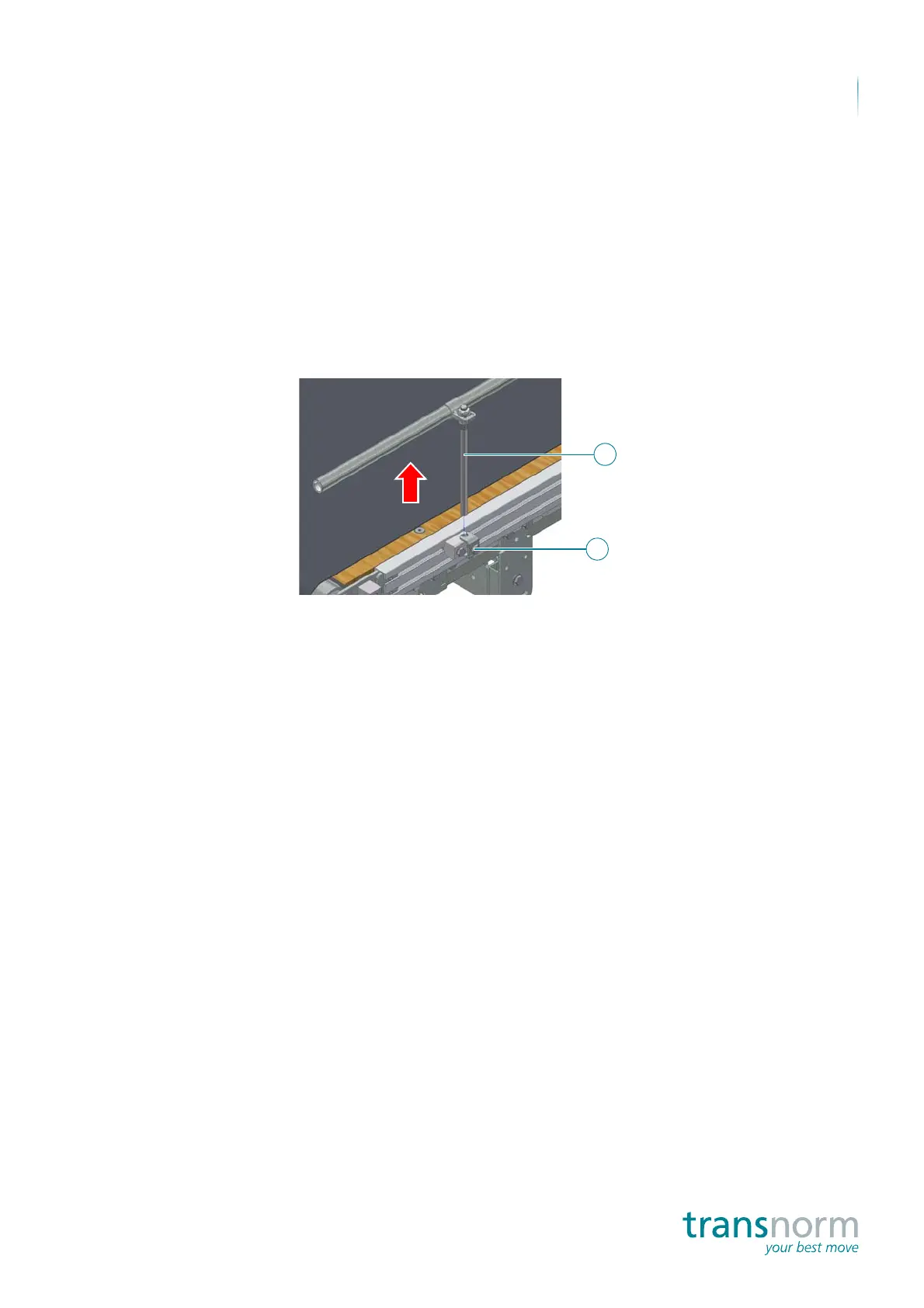

1. Mark the position of the side guide supports (1) on the support block.
2. Release the joining element (2) at the support block.
3. Remove the side guide with the support.
4. Place the side guide on an appropriate surface.
The side guide has been removed.
Assemble the side
guide
Complete the following steps:
1. Position the side guide support (1) at the support block.
2. Tighten the joining element (2).
The side guide has been fitted.
The tubular side guide has been replaced.
