Maintenance and repair
Replacing rollers - roller arch
86
Operating instructions: Belt conveyor TS 1200
Version 5.7ENG, 14.05.2018
Adjust the rollers
Complete the following steps:
1. Follow the steps described in "Tensioning/adjusting the conveyor belt".
2. Undo the counter nuts (1).

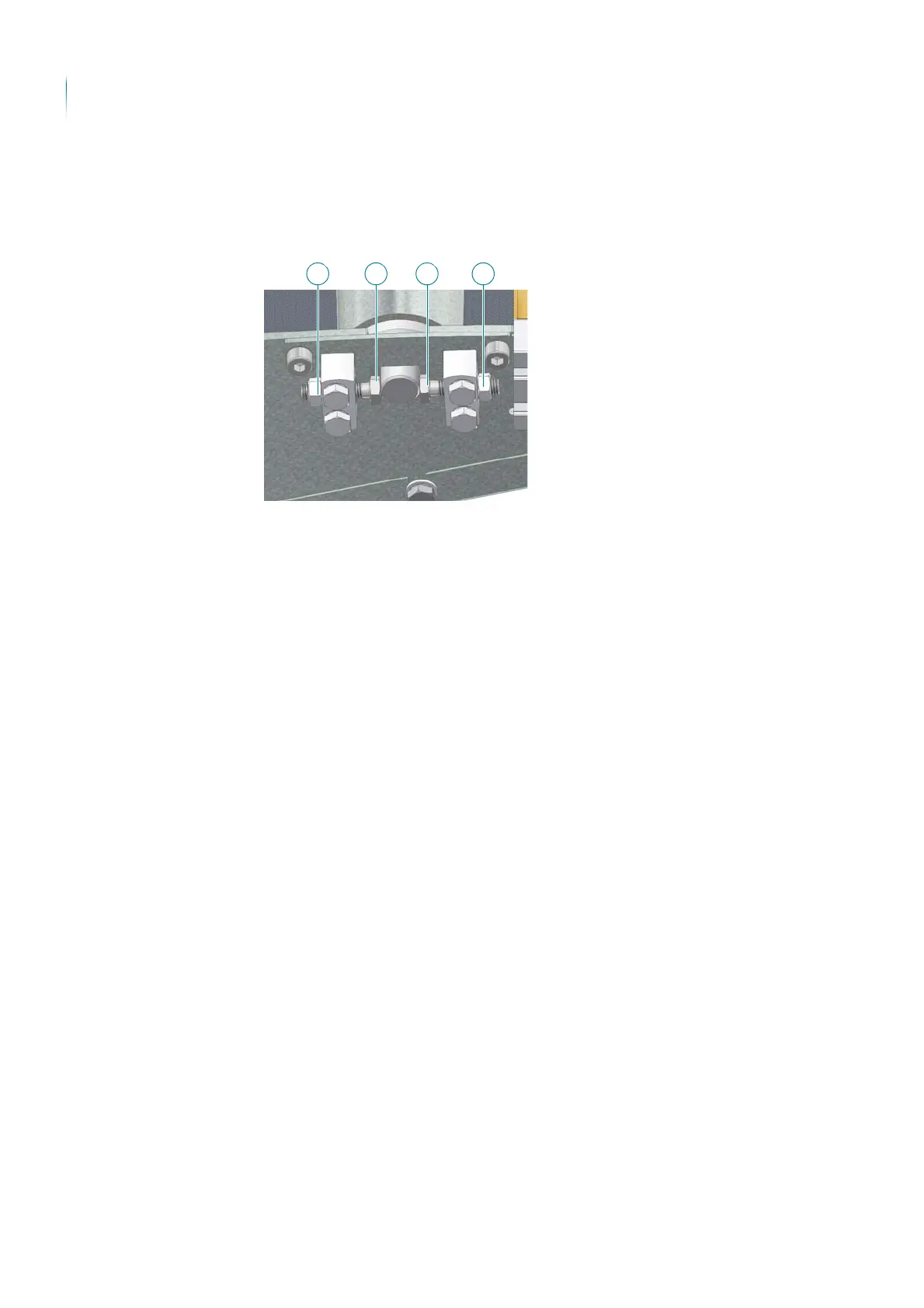

3. Turn the tensioning screws (2) to adjust the rollers.
The belt will have a delayed response to the adjustment. Therefore, only
adjust the tensioning screws slightly. Allow the belt to run for a few cycles
before each adjustment.
4. Tighten the counter nuts (1).
The rollers have been adjusted.
The roller has been replaced - roller arch.
