Traulsen TE Series - Control Locations; Specifications; Operating Data Chart

II. j - CONTROL LOCATION:
On all TE-Series refrigerator models, the micro-
processor control is located on the louver assembly.
The louvers/refrigeration system are mounted standard
on the left side, but as an option are available mounted
on the right (see figure 2).
II. k -
OPERATING DATA CHART:
Refrigerated Models (cabinet temperature set at 38°F)
Ambient 70°F 100°F
Suction Pressure 35 PSIG 50 PSIG
Suction Temperature 3°F16°F
Discharge Pressure 200 PSIG 295 PSIG
Discharge Temperature 88°F115°F
II. GENERAL INFORMATION (cont’d)
II. l - SPECIFICATIONS:
-3-

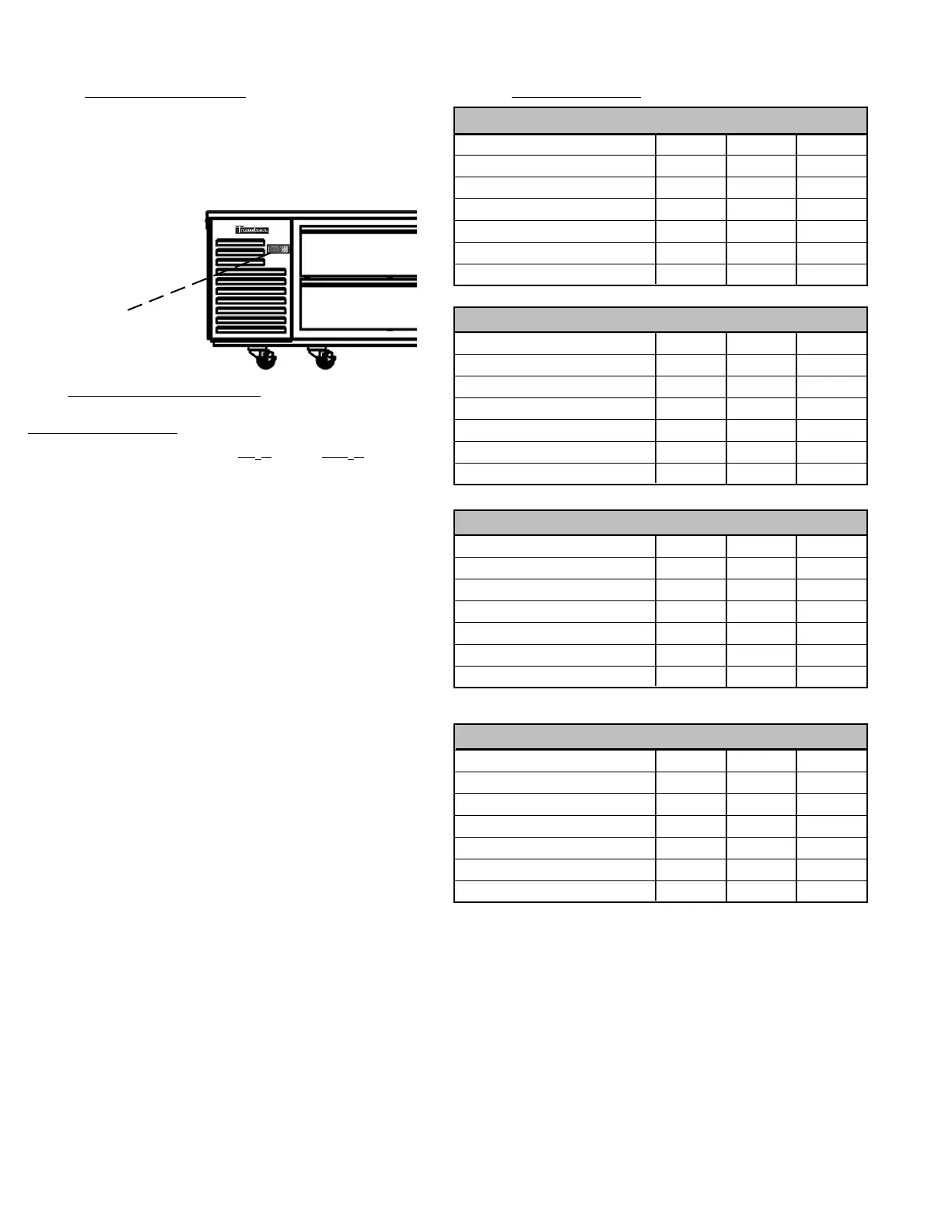

Fig. 2
Control Location
TE-Series Refrigerated Equipment Stands
TE036 TE048 TE060
Horsepower 1/3 HP 1/3 HP 1/3 HP
Condensing Unit - BTU/HR 2440 2440 2440
Condensing Unit Amp Draw 4.5 4.5 4.9
Fan, Lights, Etc. Amp Draw 0.6 0.6 1.1
Refrigerant R-404A R-404A R-404A
Refrigerant Charge (oz.) 14.0 14.5 16.0
TE-Series Refrigerated Equipment Stands
TE139
Horsepower 1/2 HP
Condensing Unit - BTU/HR 4090
Condensing Unit Amp Draw 9.6
Fan, Lights, Etc. Amp Draw 1.9
Refrigerant R-404A
Refrigerant Charge (oz.) 21.0
TE-Series Refrigerated Equipment Stands
TE096 TE110 TE125
Horsepower 1/2 HP 1/2 HP 1/2 HP
Condensing Unit - BTU/HR 4090 4090 4090
Condensing Unit Amp Draw 9.6 9.6 9.6
Fan, Lights, Etc. Amp Draw 1.5 1.5 1.5
Refrigerant R-404A R-404A R-404A
Refrigerant Charge (oz.) 20.0 20.0 20.0
TE-Series Refrigerated Equipment Stands
TE065 TE072 TE084
Horsepower 1/3 HP 1/3 HP 1/3 HP
Condensing Unit - BTU/HR 2440 2440 2440
Condensing Unit Amp Draw 4.9 4.9 4.9
Fan, Lights, Etc. Amp Draw 1.1 1.1 1.1
Refrigerant R-404A R-404A R-404A
Refrigerant Charge (oz.) 16.5 16.5 17.0
