IV. a - REPLACING THE CONDENSER FAN MOTOR AND/OR BLADE
STEP 1: Remove the louver assembly as outlined in
section “III. a” to gain access through left side.
STEP 2: Remove the screws holding the fan motor
bracket to the compressor mounting base (see
illustration 1).
STEP 3: Remove the blade from the motor shaft by
removing the nut (see illustration 2).
NOTE: Install the concave side of the fan blade
toward the motor.
NOTE: If the blade is all that is being replaced,
stop here and reverse procedure to install.
STEP 4: Remove the mounting bracket from the motor
(see illustration 3).
STEP 5: Disconnect the lead wires at the compressor
junction box.
STEP 6: Reverse the procedure to install.
STEP 7: Reconnect power to the unit.
STEP 8: Reset the microprocessor control defrost time
settings to the correct time of day.
\
WARNINGS:
1) DISCONNECT THE ELECTRICAL POWER TO THE
MACHINE AND FOLLOW LOCKOUT/TAGOUT
PROCEDURES.

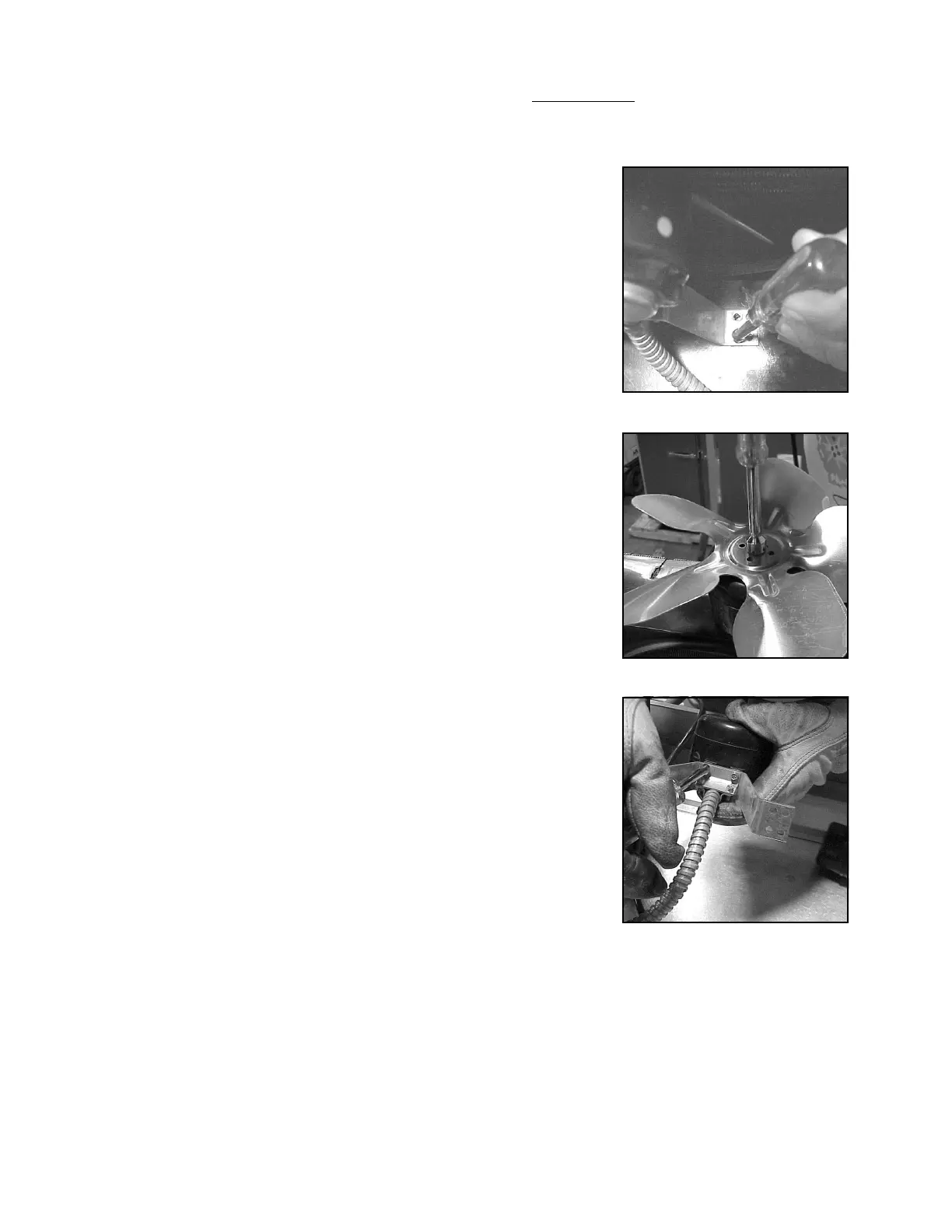

Illustration 01
