Traxxas SLEDGE - TRANSMITTER AND RECEIVER; MODEL WIRING DIAGRAM

SLEDGE
•
11
TRAXXAS TQ i RADIO SYSTEM

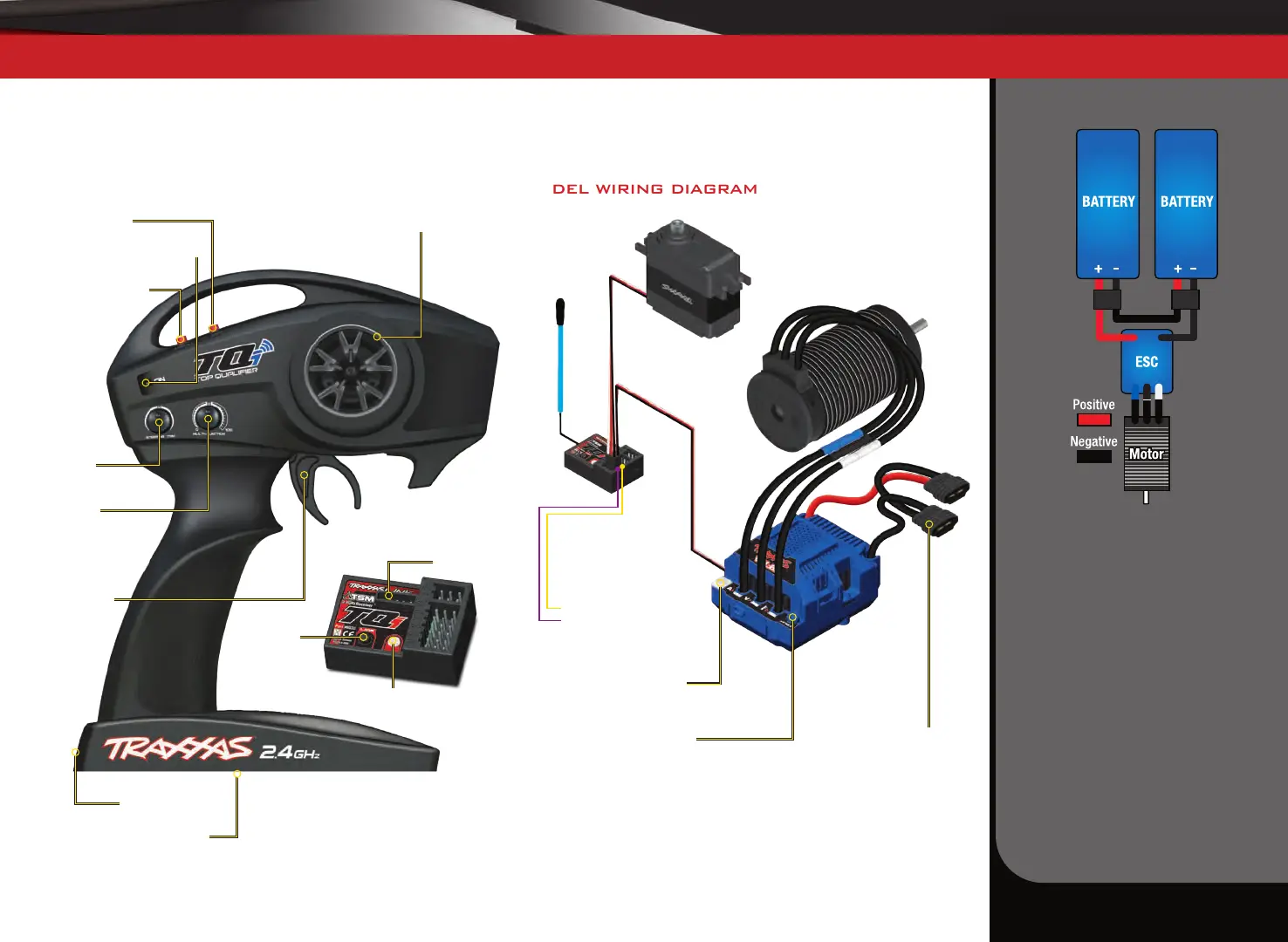

MODEL WIRING DIAGRAM
Wiring DiagramYour model is equipped with the TQi 2.4GHz transmitter with Traxxas Link
™
Model Memory. The transmitter has two channels for
controlling your throttle and steering. The receiver inside the model has 5 output channels. Your model is equipped with one servo
and an electronic speed control.
TRANSMITTER AND RECEIVER
Steering
Trim
Throttle
Trigger
Multi-Function
Knob
Steering Wheel
Power Switch
Battery Compartment
Set Button
Menu Button
Red/Green Status LED
see page 28 for more info
Link
Button
LED
Sensor Expansion
Port**
**Accessory sensor expansion port for use with the Telemetry Expander Module
(see Traxxas.com and materials included with your model for more information).
LED
EZ-Set Button
(On/Off Button)
Traxxas High-Current
Connector (Male)
to Battery
Channel 1
Steering Servo
2000Kv
Brushless
Motor
Channel 2
VXL-6s Electronic
Speed Control
Antenna
V/T - Voltage/Temp Sensor
RPM - RPM Sensor
BATT/
CH5 - Battery/Channel 5
CH4 - Channel 4*
CH3 - Channel 3*
CH2 - Speed Control
CH1 - Steering Servo
CH1 - Steering Servo*
*Not used
