2021 E-Caliber Service Manual
10
IsoStrut
6
1
2
3
4
3
2
5
7
8
9
10

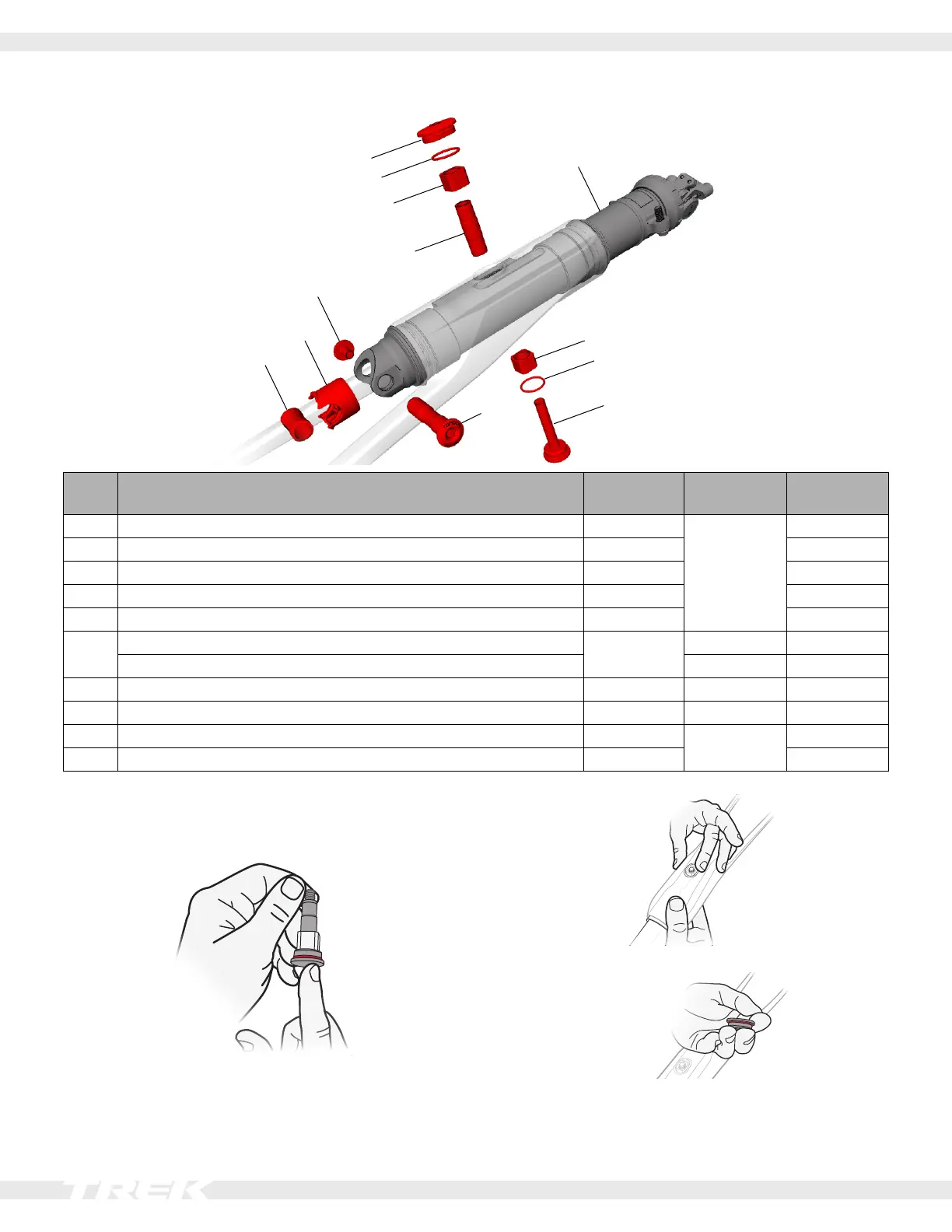

Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Damper body nut 1
W580727
—
2 O-ring 2 —
3 Guide bushing 2 —
4 Damper body sleeve 1 —
5 Damper body bolt 1 7
6 Foxshock,performance,black 1 W587198 —
Foxshock,performance,kashima W587197 —
7 Compression sleeve 1 591626 —
8 Shock oil plug 1 W580727
9 End cap bolt 1 591626 —
10 RearIsoStrutaxle 1 10
Tools
• Torquewrenchwith5mmhexbit
1. Assemble the body bolt (5), body sleeve (4), one
o-ring(2)andoneguidebushing(3)asshownbelow.
2. Inserttheassemblyintothebottomofthecarriage.
3. Installtheupperguidebushing(3)intothecarriage.
4. Installtheo-ring(2)ontothedamperbodynut(1).
5. Install damper body nut (1) with o-ring (2) into the
carriage.
6. Torquethedamperbodybolt(5)to7Nm.
