2021 E-Caliber Service Manual
21
Suspension
Therststepinsuspensionset-upistosetthesag.Allothersettingsshouldbeadjustedaftersettingthesag.
For instructions on how to set the sag, please view the Suspension set-up video at trekbikes.com/manuals.
Refer to the suspension set-up card included with your bike or the online suspension calculator at trekbikes.com/suspen-
sion-calculator.
For recommended rebound settings, refer to the suspension calculator at trekbikes.com/suspension-calculator.

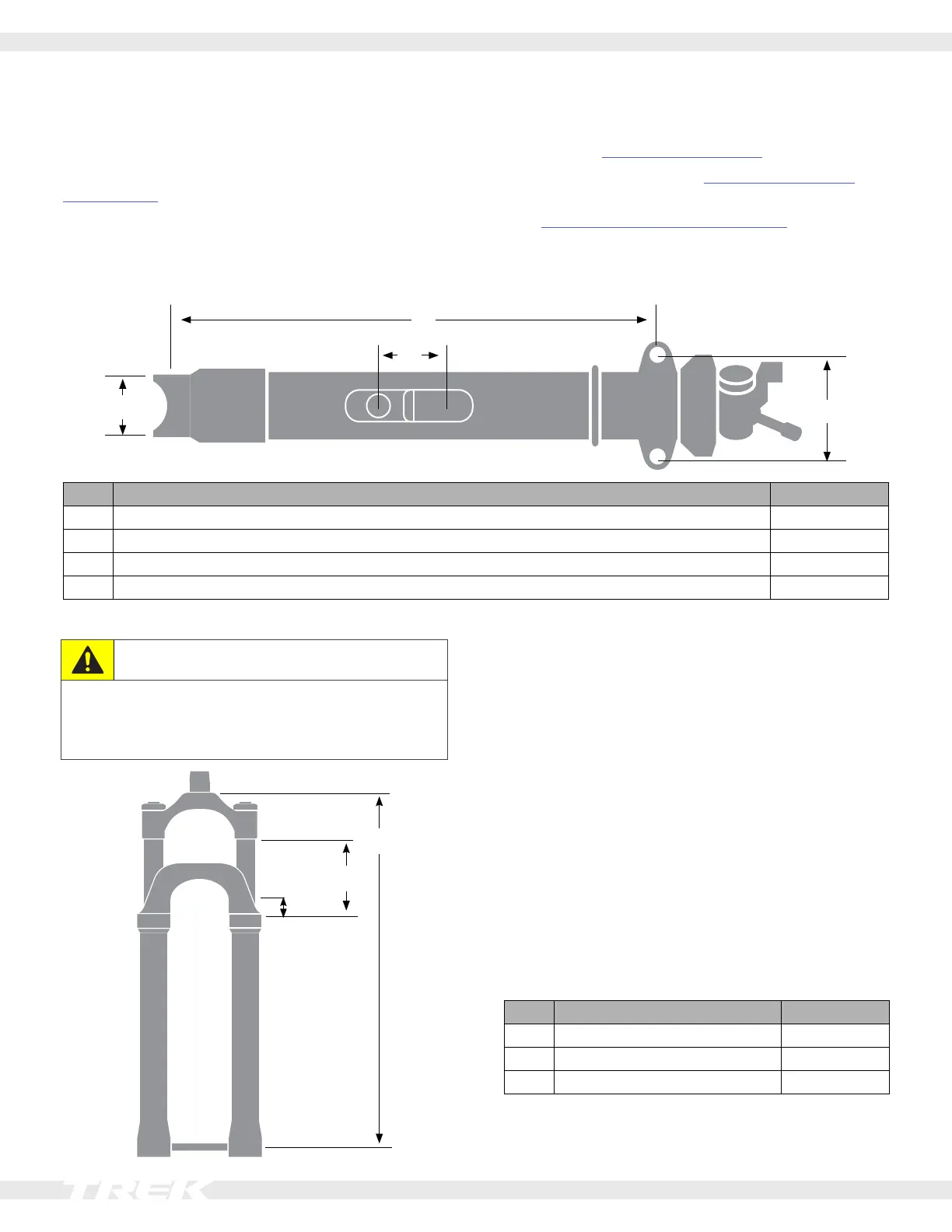

IsoStrut
• Recommended sag: 20-25%
1
2
4
3
Item Description Dimension
1 Shock eye-to-eye length 235 mm
2 Stroke length 32.5mm
3 Rear mount width 31 mm
4 Front mount width 48 mm
Fork
WARNING
Maximumforklengthismeasuredaxletocrown.
Exceedingtherecommendedmaximumforklengthcould
damage the bicycle and could cause severe injury to the
rider.
2
1
3
Item Description Dimension
1 Recommended sag 18mm/15%
2 Travel 120 mm
3 Maximumforklength 531 mm
