2021 E-Caliber Service Manual
3

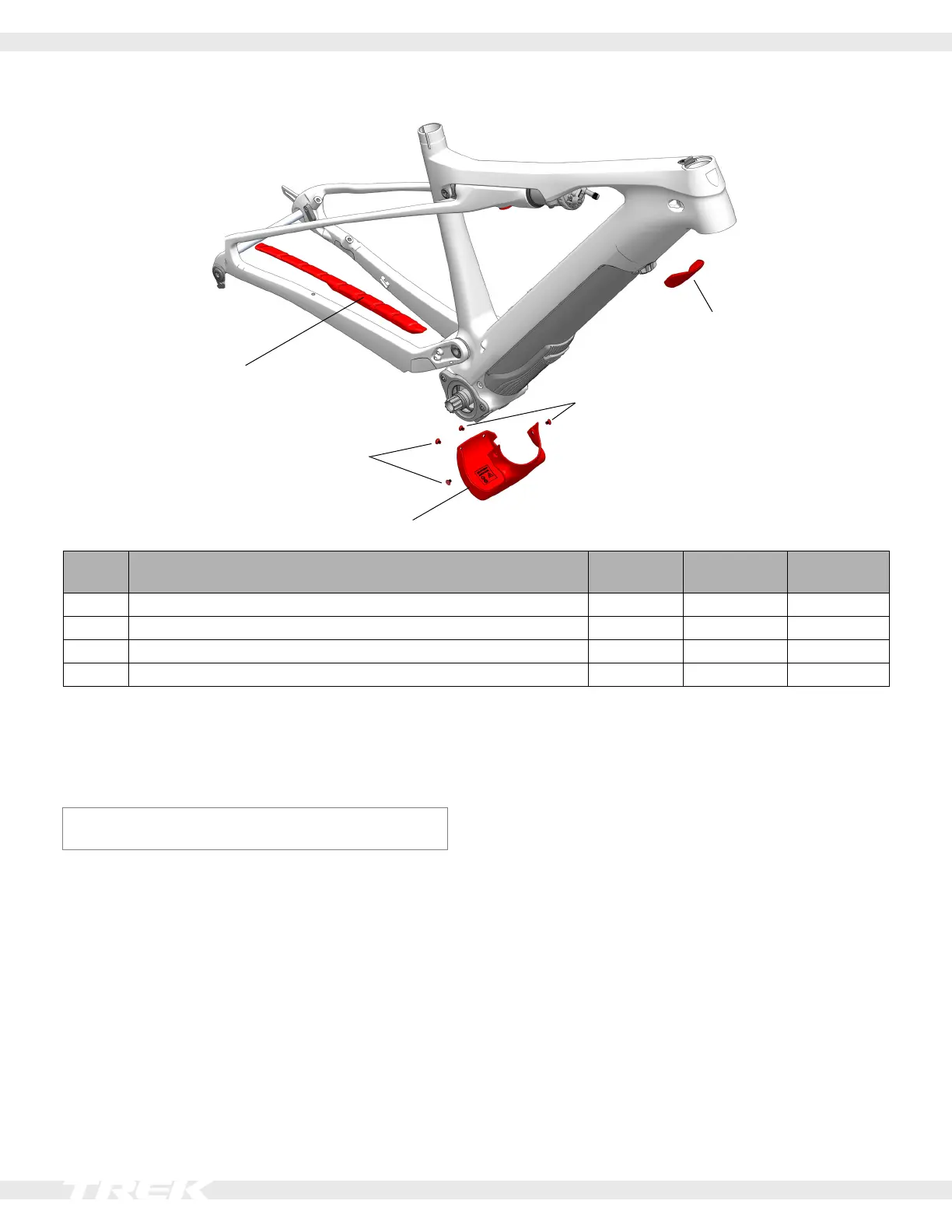

Frame and drive system guards
1
3
4
3
2
Item Description
Quantity in
Assembly Part Number Torque (Nm)
1 Chainstay guard 1 W582883
2 Down tube guard 1 W582884
3 Drive unit guard fasteners 4 5269023 3
4 Drive unit guard 1 W1040440
Chainstay and down tube guards
Useisopropylalcoholtocleantheframesurfacewherethe
guardsattach.Waitforthealcoholtodrybeforeapplying
theguards.
Notice: Do not clean the entire frame with isopropyl
alcohol.Isopropylalcoholcoulddamagethepaint.
