2021 E-Caliber Service Manual
14

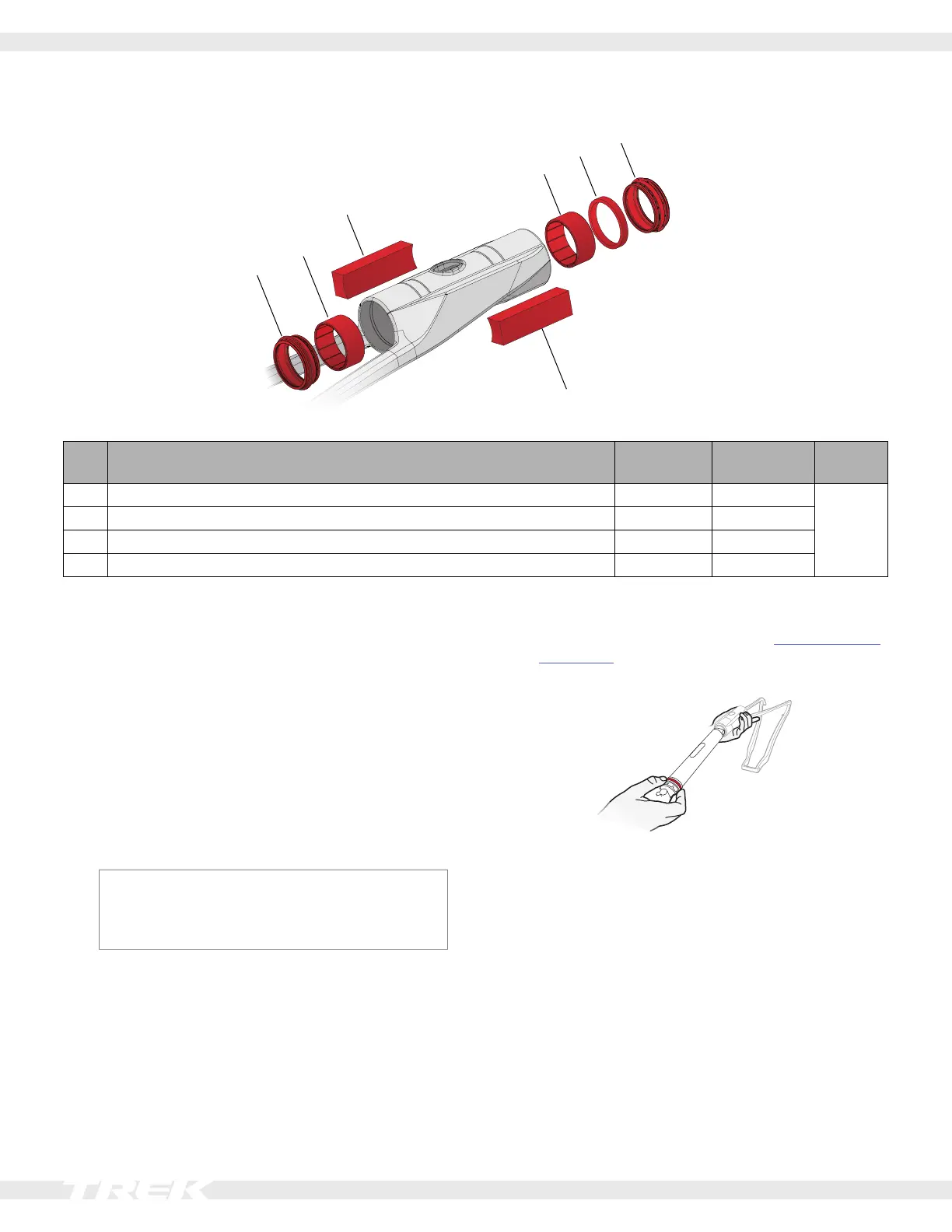

Carriage wiper seals and bushings
1
2
3
2
4
1
3
Item Description
Quantity in
Assembly Part Number Kit
1 Carriage wiper seal 2 — 592550
2 Carriage wiper bushing 2 595247
3 Foam block 2 —
4 Foam ring 1 —
Tools for replacing the seals
• IsoStrutsealandbushingpresstoolset.Available
aspartnumber593490.
• Delrinrod,1inch(25.4mm)
• Headset press
• Fork bath oil, 10 wt
Tools for replacing the bushings
• Slide hammer
• 30-36Expandingcollet
• IsoStrutsealandbushingpresstoolset.Available
as part number 593490
• Bushing sizer
• Clean, dry cloth
NOTICE: Inspect all tools prior to use to make sure
theyareclean.Dirtytoolscoulddepositgritinto
the shock which could mar surfaces and create
frictionthatcoulddamagetheshock.
Remove the shock from the carriage
1. RemovetheIsoStruthardware.SeeIsoStrut section
on page 10.
2. Removetheshockfromthecarriage.
