Rear triangle and chainstay bridge (continued)

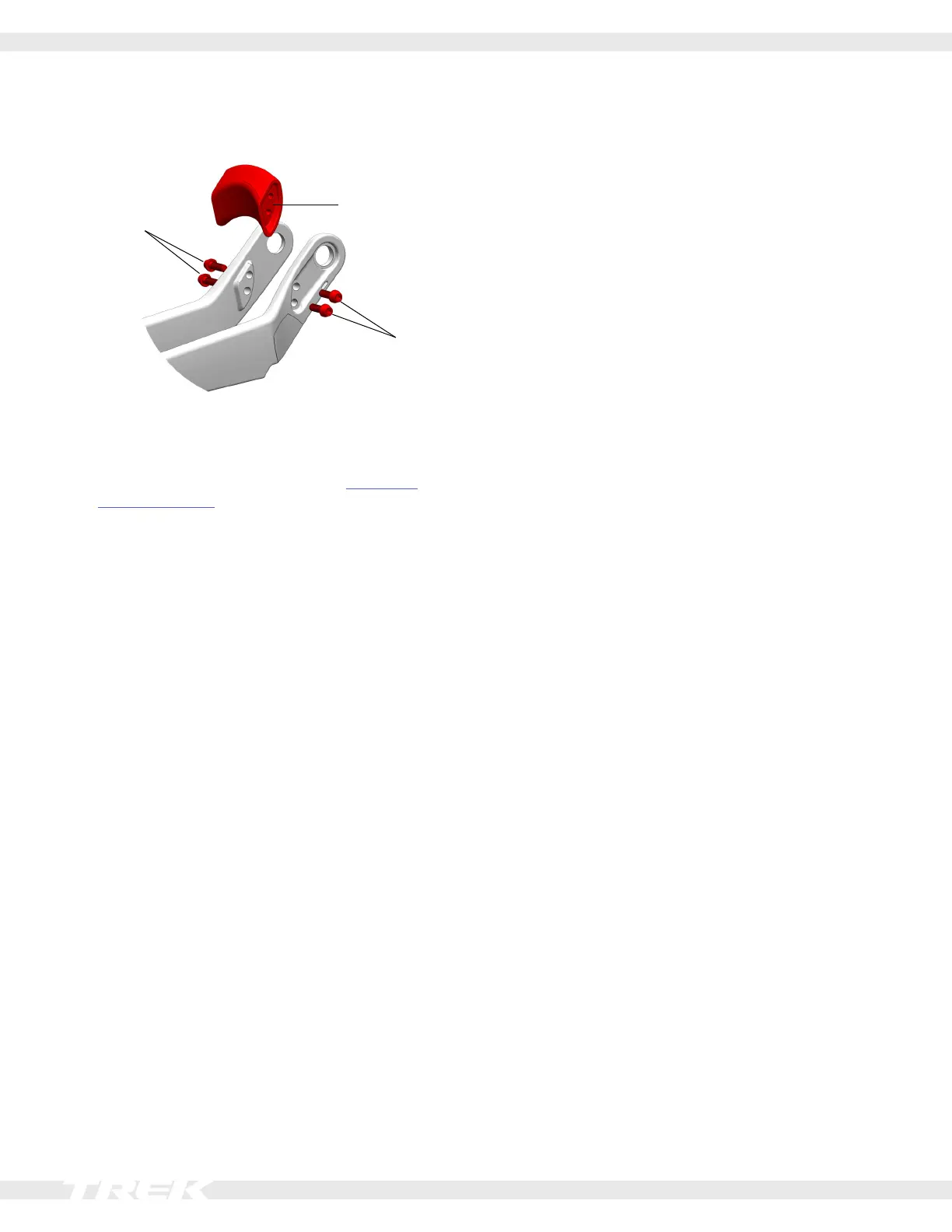

7. Insert the chainstay bridge (5) inside the rear
triangle.
4
4
5
8. Install the four bridge bolts (4) to attach the bridge to
thereartriangle.
9. If applicable, install the main pivot hardware before
torquingthebridgebolts(4).SeetheMain pivot
section on page 6.
10. Torque:
• Chainstaybridgebolts(4)to8Nm.
• IsoStrutrearaxle(1)to10Nm.
• FrontIsoStrutbolts(3)to5Nm.
