TT31 Transponder Installation Manual 1 February 2010
00455-00 Issue AJ
______________________
Slide heat shrink tubing forward (flush to connector) and heat to shrink the tubing.
Complete the assembly by installing the bushing over the centre contact, and fitting the cap.
Solder the cap in place in at least two places.

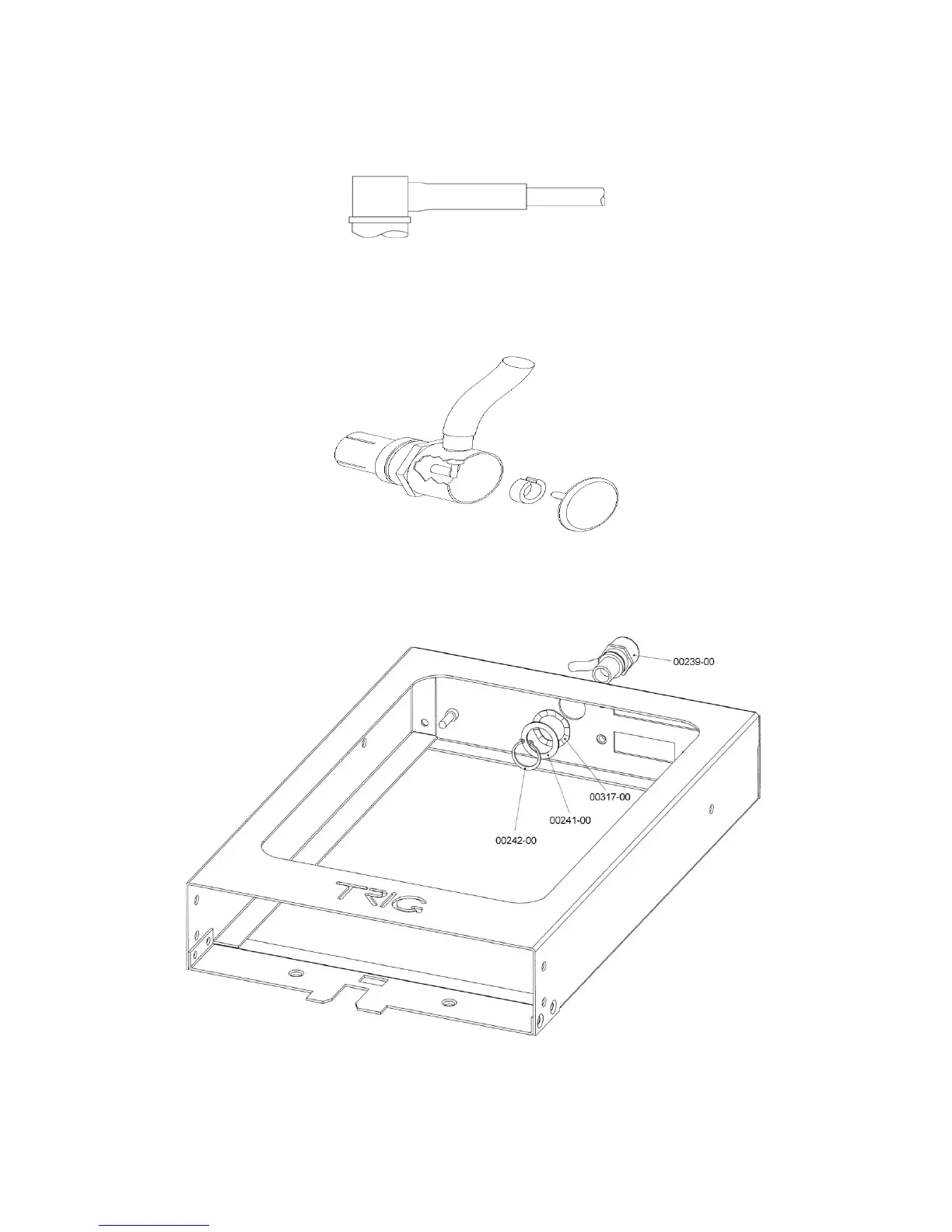

5.8 Tray / BNC Connector Assembly
Page 16 Trig Avionics Limited
