TRIMAX SNAKE S2 OPERATORS MANUAL
ENGLISH EDITION
©Trimax Mowing Systems (NZ) Ltd
www.trimaxmowers.com 24 27 March 2019

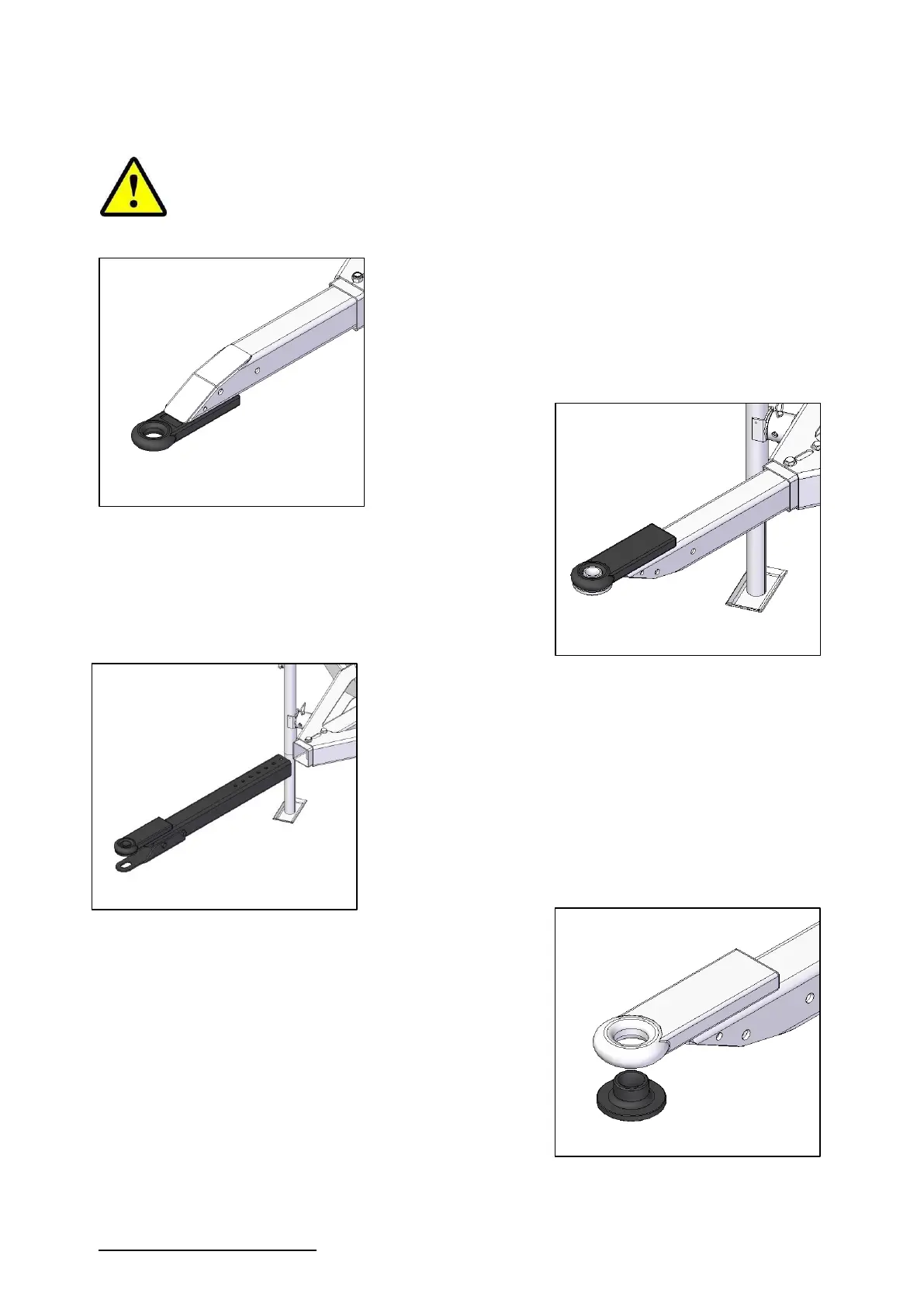

IMPORTANT! The mower drawbar must be the correct height from the
ground. If the front of the mower is too low, movement of the mower decks
will be affected and significant damage may result. This damage will not be
covered by warranty. If the front is too high the mower decks may not follow
ground contours properly.
d. If the tractor drawbar height is less than 350mm (14”) fit the
tow eye with the forged towing eye underneath.
e. If tractor drawbar height is 350mm (14”) or greater fit the tow
eye with the forging on top.
f. To change the tow hitch position, remove the self-
locking nuts and remove the mounting bolts. This may need
to be done when setting the PTO length, which is explained
later in the manual.
g. To invert the tow hitch, withdraw it from its socket,
turn it over and refit it to the socket.
h. Align the holes for the desired length and refit the
bolts and self-locking nuts.
6. Fit the plastic tow-eye bush:
a. If the tractor has a single tongue or clevis type drawbar the
plastic bush provided must be fitted to prevent excessive
movement and wear.
b. Fit the bush from underneath so the large flange prevents
metal-to-metal contact with the drawbar.
c. Use a mallet if the bush is tight.
