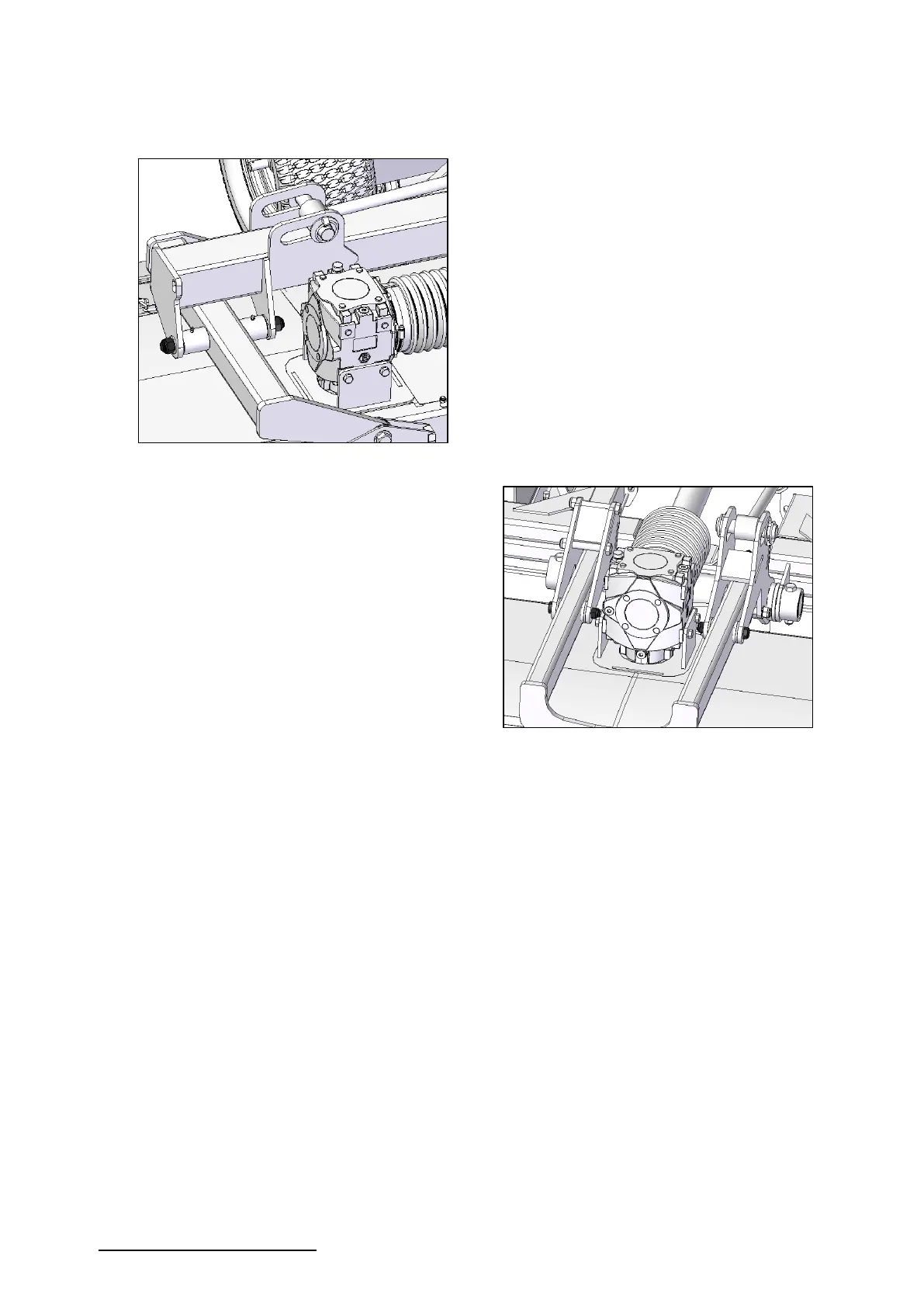

3. Check the side deck pitch pivots:
a. The left and right decks have pitch pivots which
are secured by the large nuts under each outrigger
near the mower deck gearboxes.
b. On the side decks inspect for any signs of
movement between the nuts and the vertical plates
projecting down from the outrigger.
c. Use 30mm spanners to ensure the M20 bolts and
nuts are very tight (200Nm or 148 lb-ft).
d. After tightening the nuts, raise the left and right
decks just clear of the ground. Grasp the outer end of
the deck and pull it forwards and backwards. Pitch
pivot bushes should be replaced if there is more than
0.5mm of movement in the pitch pivot assembly.
4. Check the rear deck pitch pivots
a. Pitch pivots on the rear deck are at the end of
each outrigger arm.
b. Use a 24mm spanner to ensure the M16 bolts
and nuts are tight (186Nm or 137 lb-ft).
16k. Clearing Blockages.
1. In the event of a blockage in the cutting chamber:
a. Disengage the PTO immediately.
b. Raise the mower decks to the transport position.
c. Place all controls in neutral, apply the parking brake, stop the engine and remove the
ignition key.
d. Connect the transport safety cable between the outriggers.
e. It is recommended to wear heavy gloves.
f. Clear the blockage and check that all rotating parts move freely.
g. Dispose of the removed material appropriately.
16l. Cleaning.
1. General:
a. Clean the mower as soon as possible after mowing.
b. Cleaning should be carried out in a designated area where dirt and grass clippings are
trapped to protect drains and streams. Dispose of debris according to local bylaws.
c. Park the mower with the mower decks raised to the transport position.
d. Place all controls in neutral, apply the parking brake, stop the engine and remove the ignition
key.
e. Connect the transport safety cable between the outriggers.
