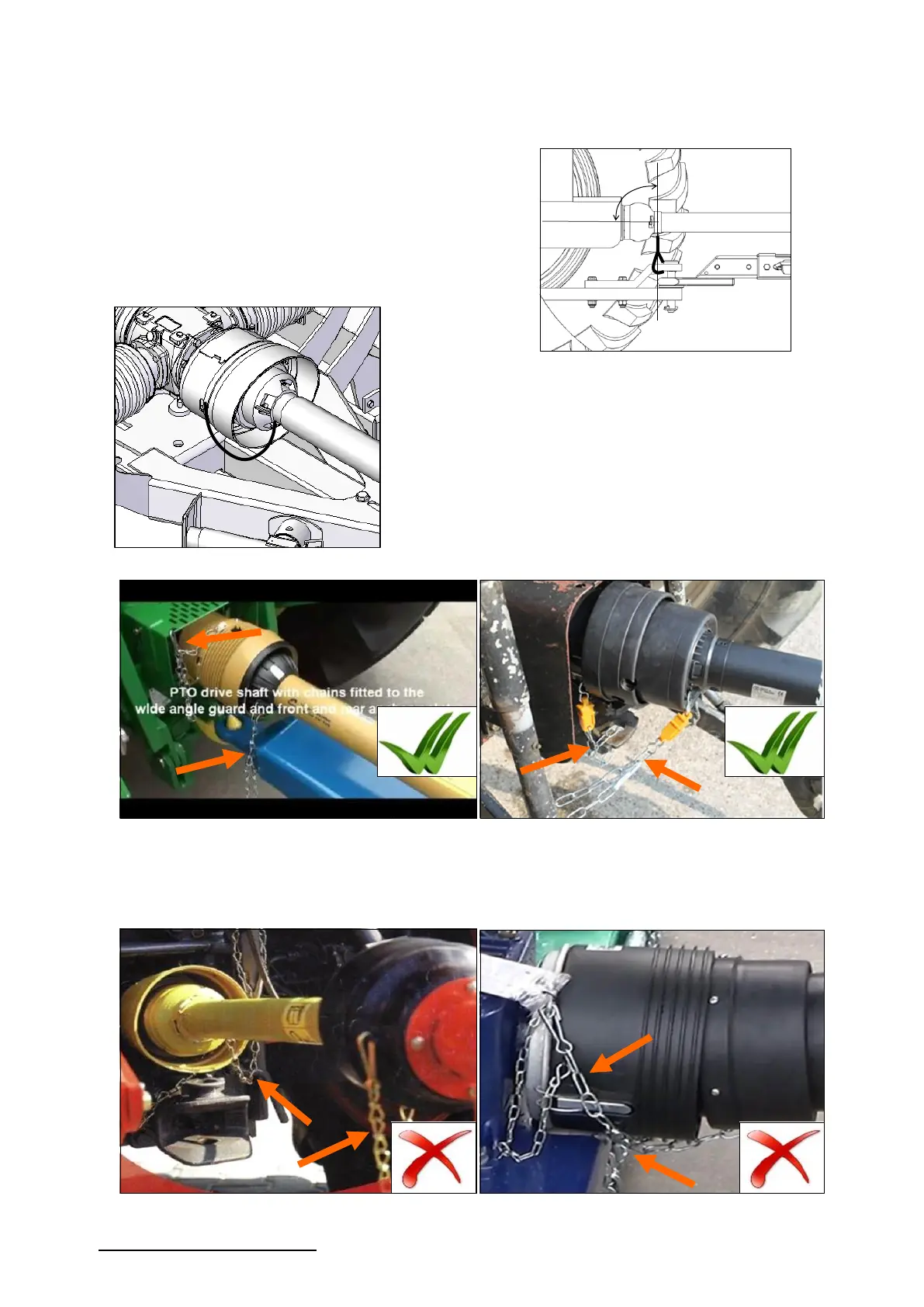

k. Attach the driveshaft safety shield chain at the tractor end to
a suitable point on the tractor to prevent the covers rotating.
The chain should be as close to 90 degrees as possible to
the driveshaft. Leave plenty of slack to allow for mower
articulation. (Picture shows connection to tractor drawbar.
Linkage arms or other parts of the tractor may be more
suitable.)
l. Attach the mower end safety chain to the plastic shield
on the primary gearbox.
m. Correct fixing of PTO safety chains.
n. Incorrect fixing of PTO safety chains.
This type of installation can cause the chain to wrap around the shield bellows resulting in a
breakage of the safety guard. The chain is too loose and has not been fixed at 90 degrees to the
axis of the drive shaft.
Fig. 1
–
CV/Wide
-
angle PTO SHAFT (type a)
Fig. 2
–
CV/Wide
-
angle PTO SHAFT (type b)
90
°
