Trimec rt11 - Page 17

4

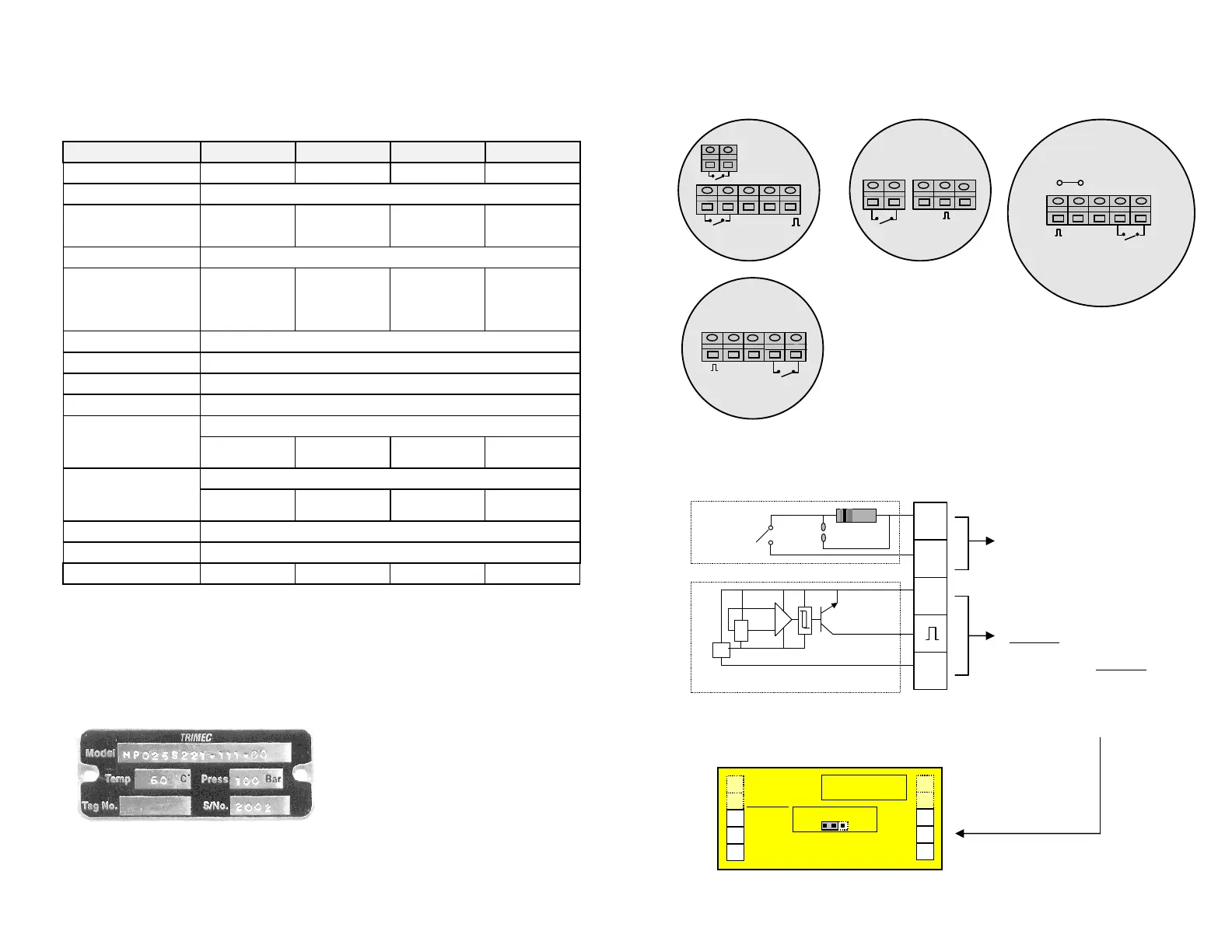

1.2 Specifications
9
3.3 Pulse output boards
3.4 Output schematics
MP015 MP025 MP040 MP050 Basic Model No.
15mm ( ½ ” ) 25mm ( 1 ” ) 40mm ( 1.5 ” ) 50mm ( 2 ” ) Size mm ( inches )
150 micron (100) 250 microns (50) 250 microns (50) 500 microns (25) Suggested filtering (mesh)
*Flow range Litres / hr
( US gal / min )
10 ~ 600
( 0.04 ~ 2.17 )
see data sheet
120 ~ 3000
( 0.5 ~ 13.2 )
250 ~ 8000
( 1.1 ~ 35 )
700 ~ 20000
( 3 ~ 88 )
Process connections BSPP or NPT female, flanged or Hygienic connections
Accuracy & Repeatability +/- 0.5% of rate, +/- 0.03% repeatability typical with steady flows
Max. Pressure -316L SS
- Aluminium
- High pressure 316 SS
100 bar (1500psi)
30 bar (440psi)
350 bar (5150psi)
100 bar (1500psi)
80 bar (1200psi)
170 bar (2500psi)
100 bar (1500psi)
80 bar (1200psi)
250 bar (3700psi)
38 bar (560psi)
20 bar (300psi)
100 bar (1500psi)
Temperature range -40ºC ~ +150ºC ( -40ºF ~ + 300ºF)
Meter Materials 316L Stainless Steel or Aluminium
Piston materials PEEK (polyethylethylkeytone) or Carbon Filled Teflon
O-ring materials Viton (Std), EPR, Teflon or Buna-N (nitrile)
Reed Switch output 24Vdc max. / 50mA max. ( current limited )
Pulses / litre (nominal)
( Pulses / Usgal nom. )
200 & 400 reed 2
( 760 & 1520 )
20
( 76 )
7.3
( 28 )
2.5
( 9.5 )
Square Wave output 5~24Vdc max. / 20mA max. sink current (3 wire NPN open collector)
Pulses / litre (nominal)
( Pulses / Usgal )
400
( 1520 )
100
( 380 )
44
( 167 )
20
( 76 )
Protection class IP66 ( NEMA4X ) - Optional, Explosionproof Exd IIB T4 (class 1, Div.1)
Conduit entry port M20 x 1.5mm female threaded, Optional, 1/2”NPT, PG13.5 (via adaptor)
* 1) Maximum flowrate may be increased by 25% for short periods when used with low
viscosity liquids with lubricating properties.
2) Accuracy levels for the MP015 are +/-1% within nominal flow spans. Accuracy over the full
flow range is improved to within +/-0.5% when utilising the linearisation feature of the
optional Trimec RT flow rate totaliser.
Flowmeter label
The label plate identifies the flowmeter
model number, serial number,
temperature & pressure ratings.
Temperature & pressure ratings are
maximum and must not be exceeded.
Bridge solder pads when the
500Ω current limiting resistor is
not required. Maximum current
allowable is 50mA
( I = V/
Ω
ΩΩ
Ω
)
REED
SW
VDC
+
-
OV
SIG
MP040
REED SW
VDC
+
-
OV
SIG
MP025
LINK
VDC
+
-OV
REED
SW
SIG
MP050
REED
SW1
VDC
+
-
OV
SIG
REED
SW2
MP015
Important:
Hall effect output supply is to be
limited to 24Vdc maximum, should it
be possible for the voltage to spike
beyond 24Vdc apply optional PR1
pulse repeater / isolator module as
shown below.
REED
SWITCH
REG
X
Output Signal
5~24 Vdc MAX. voltage
Reed
Sw
Vdc
-0V
Reed
Sw
+
Ground
500
Ω
Solder
pads
HALL EFFECT (NPN open collector)
-0V
+ output
8~30Vdc supply
8
7
6
3
2
1
+ input
-0V
+24Vdc out
Reed = 2 & 3
Hall = 1,2 & 3
PNP
NPN
output selector
OUTPUT
Optional PR1 pulse repeater / isolator
