User's Manual
750 50 0045 03 8

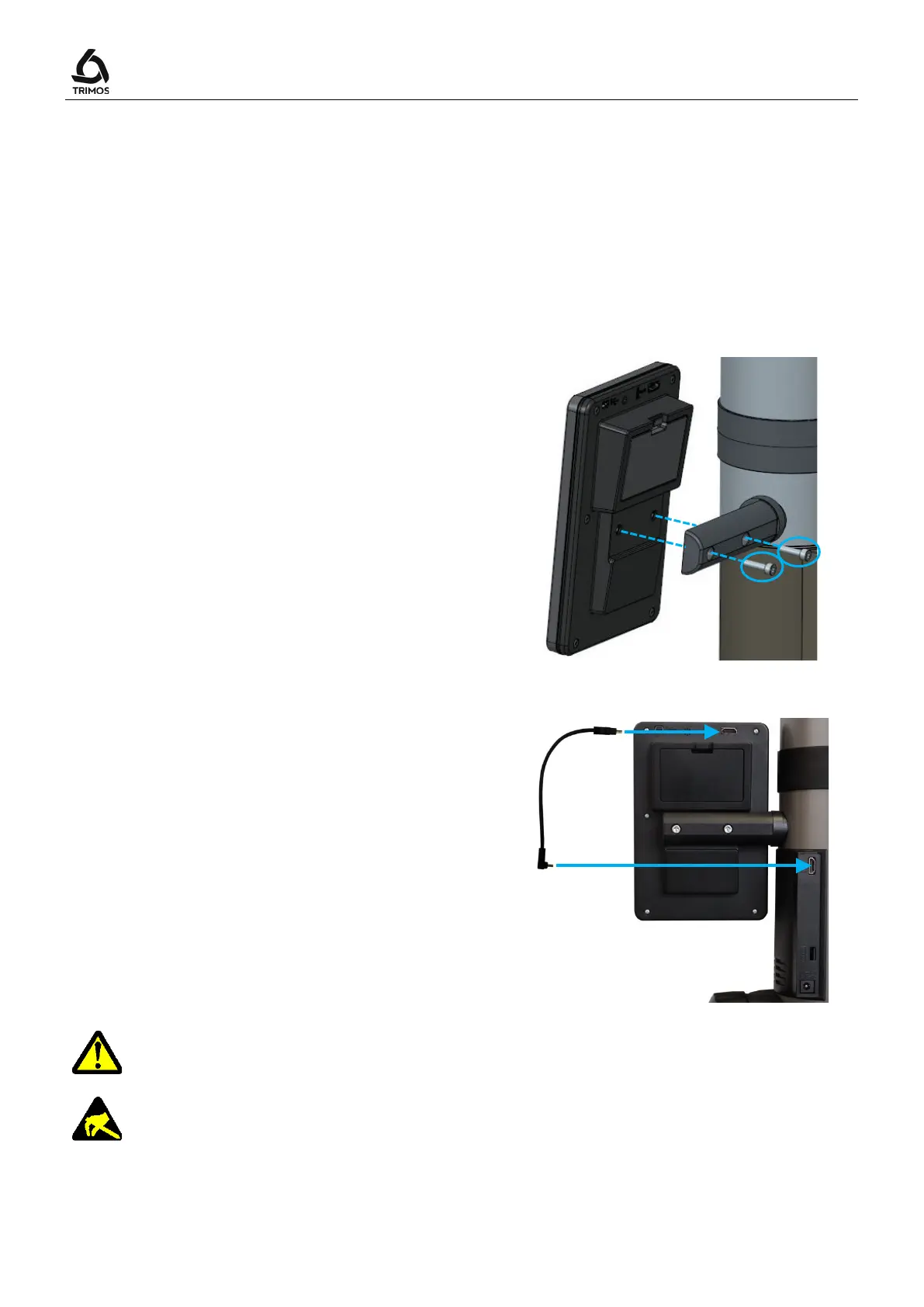

3.2 Setting-up
After unpacking, prepare the instrument as follows:
1. Clean the pads positioned underneath the
base using a clean cloth, slightly dampened
2. Position the instrument with care on a clean
measuring plate.
3. Mount the display unit on its support using
the 2 screws..
4. Connect the HDMI cable between the
instrument and the display unit.
The straight connector shall be connected to the display unit and the right-angle
connector to the instrument.
Static electricity can damage the electronic components of the instrument. In
order to prevent this type of damages, avoid any contact with the connector
