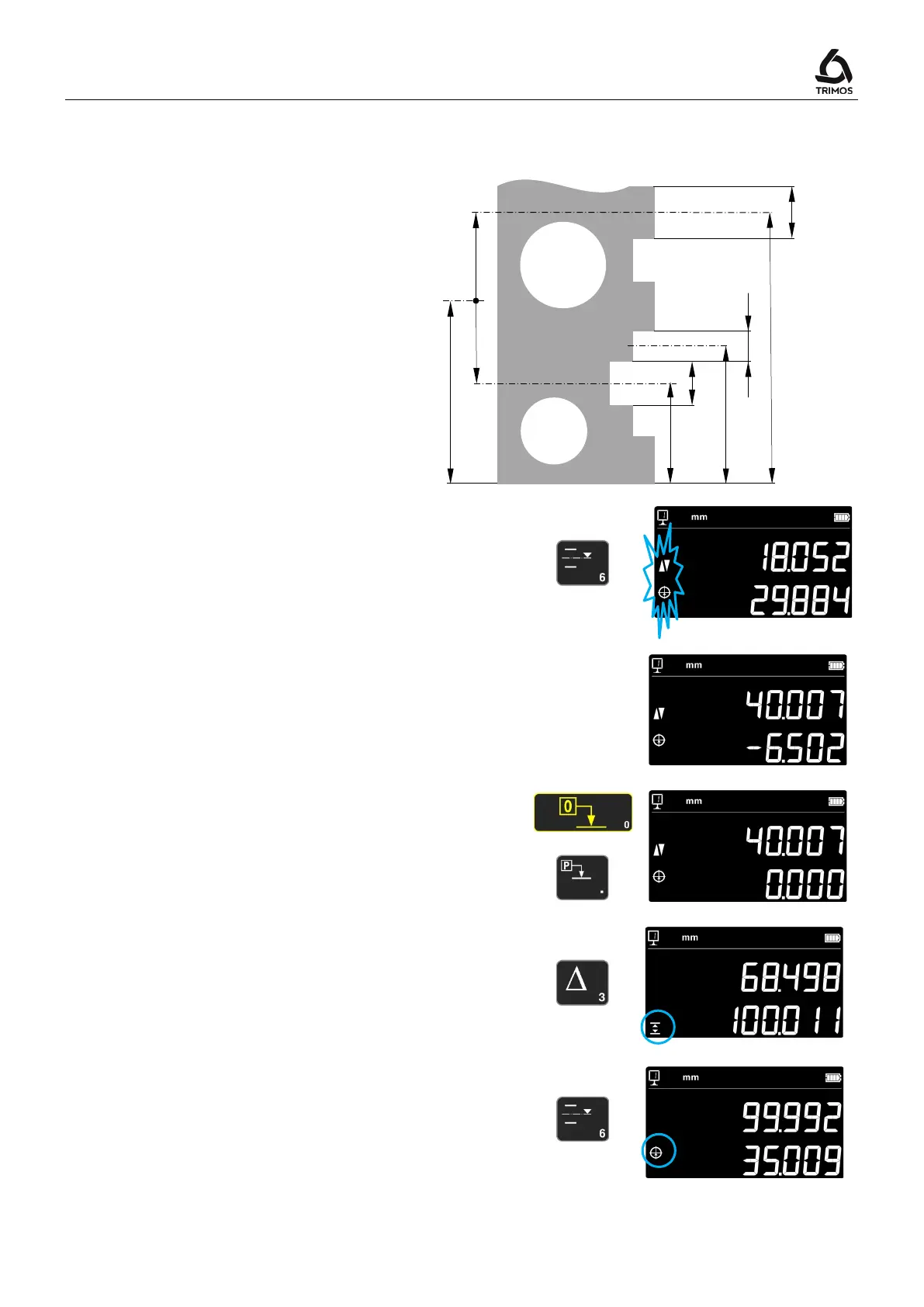

6.3 Distance and Centerline Measurement
D1 = Internal distance
C1 = Centerline corresponding to D1
D2 = Distance between 2 faces in same
direction
C2 = Centerline corresponding to D2
D3 = External distance
C3 = Centerline corresponding to D3
D13 = Distance between 2 centerlines
C13 = Average between 2 centerlines
This function allows the centerline and distance
measurements between 2 surfaces that are not
diameters. To activate it, press the key opposite
during 2 seconds. The "height" and "centreline"
modes indicators start blinking.
> 2 s
Probe the 1
st
surface, then the 2
nd
one. When the
measuring force is released after the 2
nd
measurement, the distance and centerline values are
frozen on the 1
st
and 2
nd
line of the display,
respectively.
Zero or Preset on centerline
It is possible to give a
or
value to the
centerline measured.
or
Distance between 2 centerlines
By pressing the difference key, the distance between
the 2 last centerlines is determined and mentioned
on the 2
nd
line of the display.
Centerline average
By pressing this key, the average of the 2 last
centerlines is determined.
